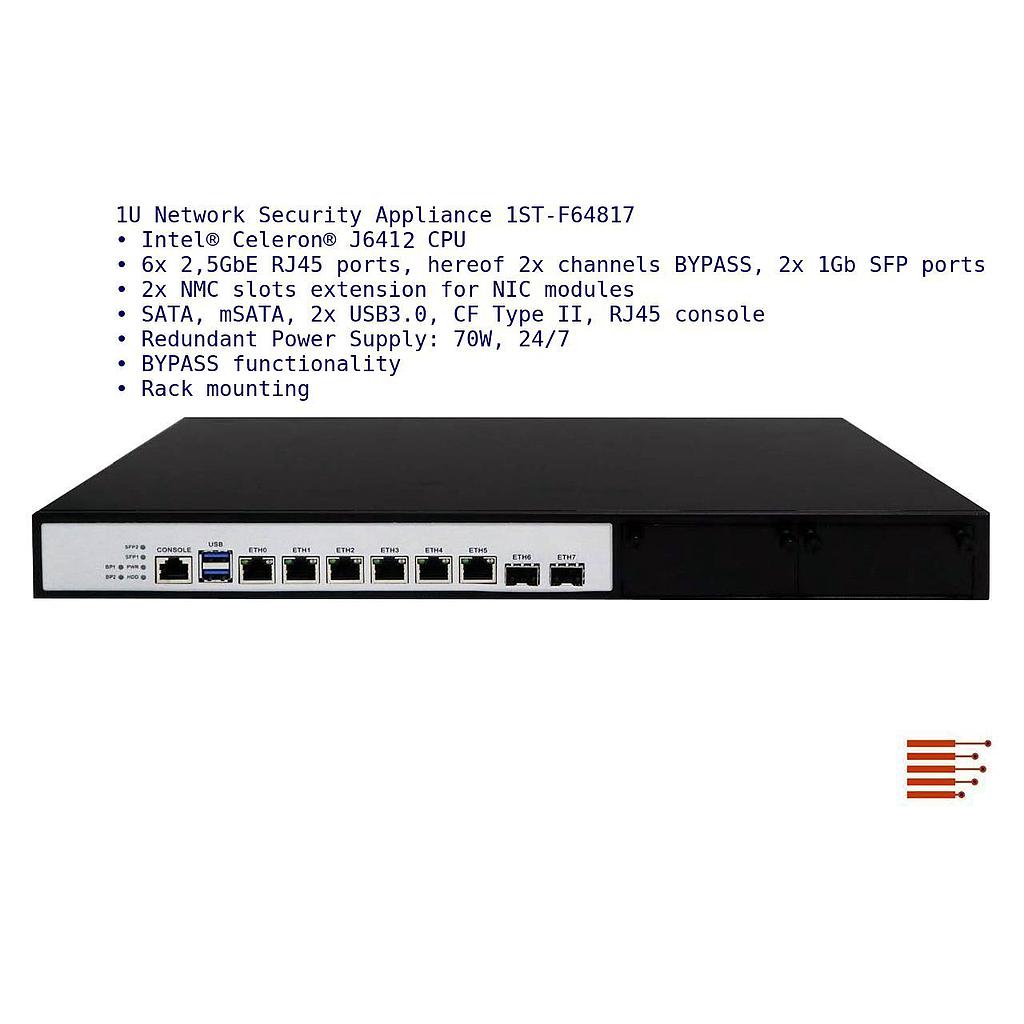

1U Netzwerksicherheits-Appliance 1ST-F64817
Die Network Appliance mit Intel® Celeron® Quadcore J6413 CPU, 6x 2,5GbE RJ45 Ports davon 2x LAN-BYPASS-Kanäle, 2x 1Gb SFP Ports, 2x NMC Slots Erweiterung für NIC Module, ein SATA- und ein mSATA-Interface, 2x USB3.0, 1x CF-card Typ II Sockel, 1x RJ45 Konsole für RS232 Kommunikation, 260-Pin 3200 MHz DDR4 SO-DIMM-Sockel für bis zu 32 GB RAM, 70W integriertes Netzteil, 100 ~ 240V AC input
Lieferzeit 2-3 Tage bei Verfügbarkeit
1U Netzwerk-Sicherheits-Appliance
6x 2,5GbE Ports davon 2 BYPASS-Kanäle, 2x Gb SFP Ports, redundante Stromversorgung
Die Hardware-Firewall mit Intel® Celeron® Quadcore J6413 Prozessor (Embedded CPU) ist für den erweiterten Temperaturbereich von -10° C ~ 50° C ausgelegt. Zusätzlich zu den 8 vorhandenen LAN-Ports können 2 LAN-Erweiterungsmodule bestückt werden. Sie können aus zehn Varianten von NIC-Modulen auswählen und somit flexibel auf Ihre Netzwerkanforderungen eingehen.
Diese Netzwerk-Sicherheits-Appliance eignet sich für den Einsatz in Automatisierung, Netzwerksicherheit, Firmen-Netzwerken, als Firewall, VPN Gateway, IDS/IPS u.a..
Ein redundantes 70W Netzteil sorgt für reibungslosen 24/7-Betrieb.
Einfache Möglichkeiten der Rack- oder Tisch-Montage stehen zur Verfügung.

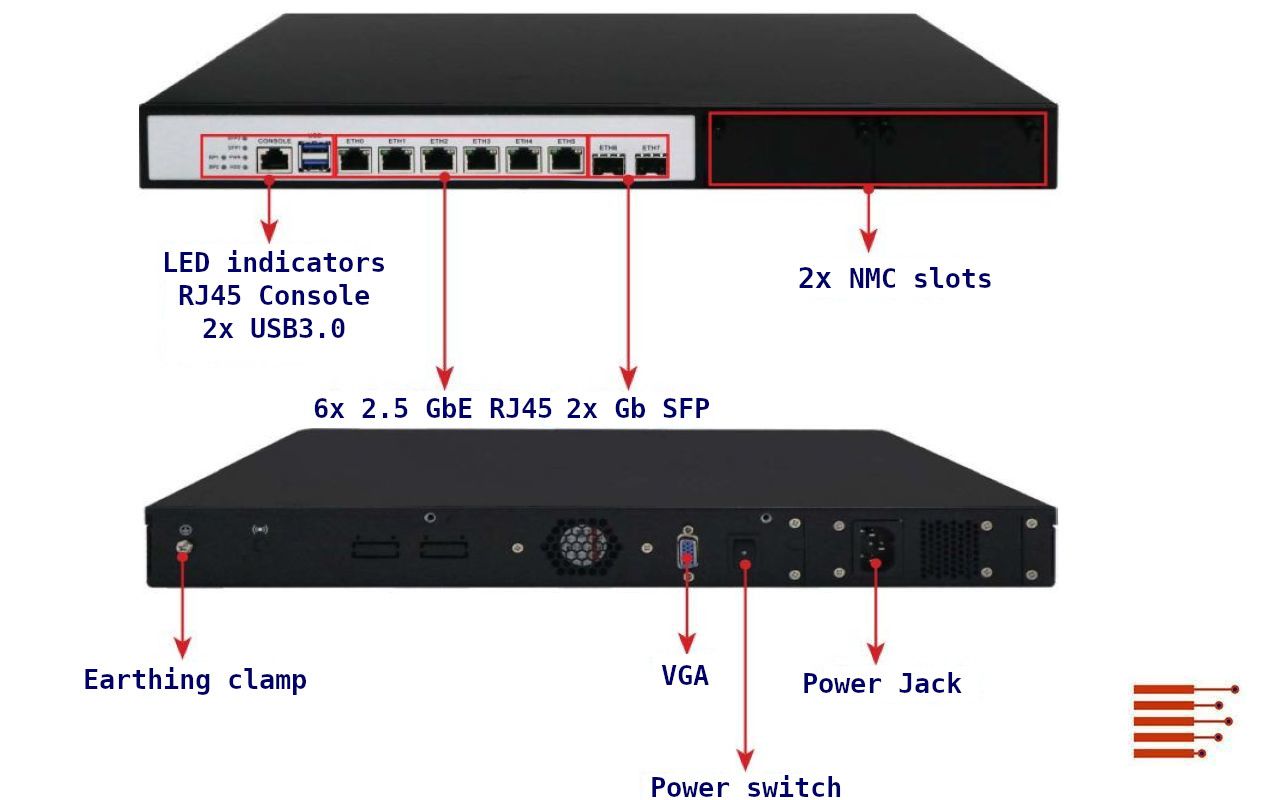

Ausstattung
1U stabiles Metall-Gehäuse
Intel® Celeron® Quadcore J6413 Prozessor, 4 Kerne & Threads, 10W TDP
6x 2,5GbE RJ45, davon 2x BYPASS; Intel® I225-V Controller
2x 1Gb SFP Ports
2x NMC Slots Erweiterung für NIC Module
260-Pin DDR4 SO-DIMM Slots für bis zu 32 GB RAM
1x SATA und 1x mSATA Interfaces
2x USB3.0, 1x CF Type II
1x RJ45 Konsole für RS232 Kommunikation, unterstützt USB3.0, mSATA, COM
Built-in 1x VGA Interface mit Hot-Plug-Unterstützung
BYPASS-Funktionalität
Redundantes Netzteil: 70W
Erweiterter Temperaturbereich: -10°C ~ 50°C
Rack- oder Tisch-Montage
Windows, Linux, FreeBSD - kompatibel
24/7-Betrieb
Applikationen
Firmennetzwerke
VPN-Gateway
Automatisierung
IDS/IPS
Firewalls
NIC Module optional
35N4
4x GbE RJ45 Ports basierend auf Intel® I350 Controller
35NF8
4x GbE RJ45 und 4x Gb SFP Ports basierend auf Intel® I350 Controller
35F4
4x Gb SFP Ports basierend auf Intel® I350 Controller
35NF4
4x GbE RJ45 und 4x Gb SFP Ports basierend auf Intel® I350 Controller
35N8
8x GbE RJ45 Ports basierend auf Intel® I350 Controller
58B2
2x Gb SFP Ports basierend auf Intel® 82580DB Controller, mit 1x BYPASS-Kanal
59W2
2x 10Gb SFP+ Ports basierend auf Intel® 82599ES Controller
71W4
4x 10Gb SFP basierend auf Intel® XL710 Controller
35F8
8x Gb SFP Ports basierend auf Intel® I350 Controller
71B4
4x 10Gb SFP basierend auf Intel® XL710 Controller, mit 2x BYPASS-Kanälen
