Why Rugged Industrial Computer KMDA-5921-S002 is best suited

for use in Industrial Automation, AI Edge Computing, Machine Vision?

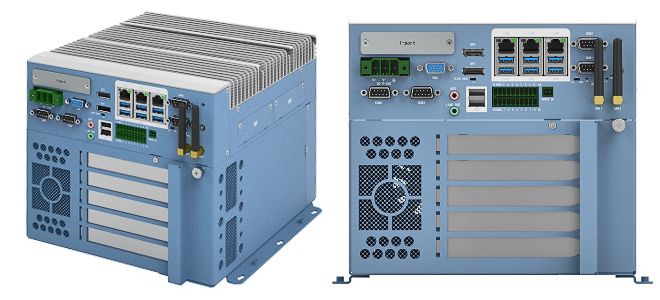

The embedded Box-PC with 4 PCIe expansion slots

Intel® 8th/9th Gen. Coffee Lake LGA1151, 3x LAN, 8x USB, 16-bit Iso. DIO

Der embedded Box-PC mit 4 PCIe Erweiterungssteckplätzen: Intel® 8th/9th Gen. Coffee Lake LGA1151, 3x LAN, 8x USB, 16-bit Iso. DIO

high performance, reliable in harsh environments, flexible expandable

Contact 1ST-embedded experts

The main advantages for use in AI Edge Computing, Industrial Automation and Machine Vision are:

✔ The flexible configuration with expansion slots 2x PCIe x8 + 2x PCIe x4 or 1x PCIe x16 +1x PCIe x4 + 2x 32-bit PCI
can be used for powerful GPU cards or AI modules (max 1x 150W GPU and 2x 75W AI modules).

Long-term available embedded CPU in use

✔ Shock and vibration resistant: robust construction

✔ 16-bit galvanic isolated Digital-I/Os

✔ Passive cooling with big heat sink for CPU and chipset and active cooling with intelligent temperature controlled fan for expansion slots

Extended Temperature Range -20° C ~ 60° C

✔ Support  real-time OS: Wind River, VxWorks 7

Die CPU-Auswahl für KMDA-5921-S002: Der robuste Industrie-PC von JHC Technology Development Co., Ltd wird angetrieben von einer Intel® 8th/9th Gen. Coffee Lake CPU

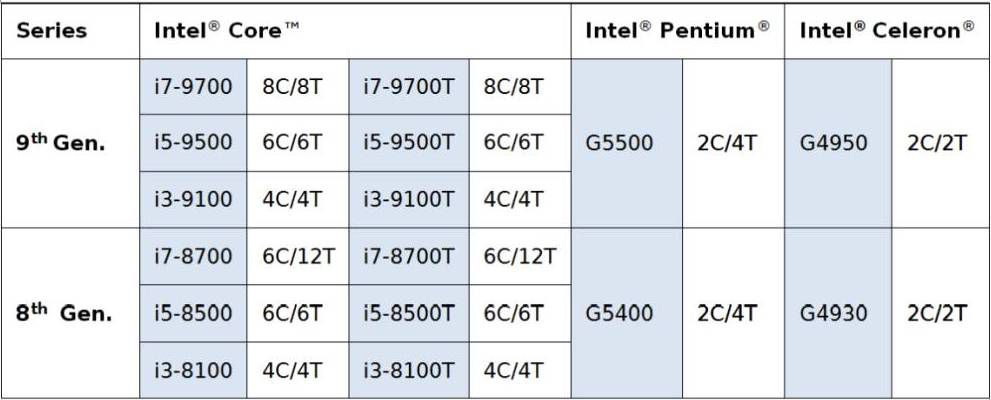

The CPU select for KMDA-5921-S002

The rugged Industrial PC of JHC Technology Development Co., Ltd is powered by Intel® 8th/9th Gen. Coffee Lake CPU:

Intel® Core™ i3/i5/i7, Pentium®, Celeron® LGA1151 CPU with passive cooling.

Features

  • Intel® Core™ i3/i5/i7, Pentium®, Celeron® LGA1151 CPU
    with passive cooling

  • 4x DDR4 2400/2666MHz SO-DIMM, up to 128GB

  • 1x VGA, 2x DP for dual 4K displays

  • 3x LAN, 4x COM

  • 16-bit Iso. DIO: 8-bit Iso. DI and 8-bit Iso. DO

  • 6x USB 3.1, 2x USB 2.0

  • 1x M.2 3052 Key B with SIM slot and support for 5G, 1x M.2 2230 Key E, supports WiFi6/Bluetooth 5.0

  • 1x miniPCIe with SIM card slot, support for 4G/WiFi/Bluetooth

  • 2x SATA3.0, 1x M.2 2280 Key M for NVME SSD

  • 9~36V DC, Wide power input

  • Aluminum chassis

  • Watchdog, Temperature control

  • Desktop mounting

  • RoHS, FCC and CE certified

  • OS Support: Windows 10 Enterprise & IoT Enterprise, Linux: SUSE, Ubuntu, Red Hat Enterprise 1.2; Wind River, VxWorks 7
