Product Portfolio of 1ST-embedded GmbH

Outdoor IP67 Router Enclosure with 4x4 MIMO 5G/LTE antennas, 2x2 MIMO WiFi-antennas for 2,4 and 5-7,2 GHz, GPS-antenna for Industrial Cellular Routers with PoE-PD and dimensions up to 140 x 120 x 50 mm 617 – 4200 MHz, 3 dBi; 2400 – 2500 MHz & 5000 – 7200 MHz, 2.2 dBi, -40°C to +80°C. Manufacturer: POYNTING

DIN Rail mounting kit for Robustel R3000, R3000L, R3000Q, R3000LG, R3010, R2000, R2000L, R2000D, R2000E

Panorama Antennas Terminal antenna covering global 4G frequencies and 5G 3,4-3,8 GHz frequencies with Articulated SMA Plug, ground plane independent

Adapter board for M.2 Key M PCIe gen3 x4 SSD to PCIe Gen. 3 x4 and M.2 Key B SATA SSD to SATA Connector

USB3.0 Adapter cable from 9pin 1,5 Pitch Header to Typ A USB connector for PN12A PCIe adapater board, Length: 60 cm

The PCIe card with Dual SIM card slots enables the operation of 4G or 5G-Modules with M.2 key B over PCIe x1 or USB3.0 interfaces.

The WMM8G-7-38-5SP antenna is a high directional gain 2x2 MiMo signal boosting antenna for 4G and many 5G networks. Incorporating two separately fed wideband elements in a single housing the WMM8G-7-38 is equipped to provide client side MiMo and diversity support. With 6dBi of peak gain at 698-960MHz and 9dBi peak gain at 1710-3800MHz the WMM8G-7-38 provides extra gain for next generation networks.
The rugged, weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided.
A 5m long, double-shielded (low loss) twin cable with high-quality connectors allows easy installation and cable routing.
Frequencies:
Element1: 698-960MHz, 1710-2700MHz, 3400-3800MHz
Element2: 698-960MHz, 1710-2700MHz, 3400-3800MHz
Gain:
@ 698-960MHz 6dBi
@ 1710-2170MHz 9dBi
@ 2396-2700MHz 9dBi
@ 3400-3800MHz 9dBi
Polarization: +/- 45 ° Vertical
Radiation pattern: Directional
Dimensions: height 230mm / width 180mm / depth 94mm
Material: UV-resistant ASA plastic
Color: RAL9010 (pure white)
Attachment: wall-mounted / pole-mounted / table-mounted

Cable Type: SR1-029-B-T
Cable length 2x 5m
Plug: SMA plug (m)

Server-grade Intel® I350 controller based PCIe x4 v2 Quad-Port PoE+ (802.at) Network card with up to b 25,5W PoE power per LAN port, supports 4 independent Gb Ethernet Ports (48V or 53V) with PoE Power Control for each Port, 10/100/1000Mbps Self Adaption Converting

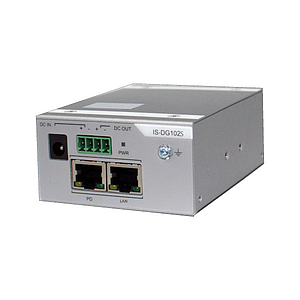

Rugged Industrial 2 ports Gigabit Layer2 PoE Splitter, 1000BASE-TX PoE IN to 1000BASE-TX DATA OUT + Power Out 12VDC, 1A

Transcend TS64GCF170 Industrial Grade CF card 64GB, MLC, -25 bis +85°C Operating Temperature Range, internal Data Througput: up to 89 MB/s (read), up to 68 MB/s (write)

C29 Extension Twin Cable 5m SMA male to SMA female
Cable Type: SR1-029-B-T
Resistance: 50 OHM +/- 2 OHM @ 1GHz
50 OHM +/- 4 OHM @ 2GHz
Loss: 3dB / 10m @ 1GHz
4.5dB / 10m @ 2GHz
Cable diameter: 2x5mm
Outer jacket: Black Flexible PVC
Foil braid shielding: aluminum foil / tinned copper
Insulation: white polyethylene
Inner conductor: copper
Length: 5m
Connection side 1: SMA plug (m)
Connection side 2: SMA jack (f)

C29 Extension Twin Cable 10m SMA male to SMA female
Cable Type: SR1-029-B-T
Resistance: 50 OHM +/- 2 OHM @ 1GHz
50 OHM +/- 4 OHM @ 2GHz
Loss: 3dB / 10m @ 1GHz
4.5dB / 10m @ 2GHz
Cable diameter: 2x5mm
Outer jacket: Black Flexible PVC
Foil braid shielding: aluminum foil / tinned copper
Insulation: white polyethylene
Inner conductor: copper
Length: 10m
Connection side 1: SMA plug (m)
Connection side 2: SMA jack (f)

4G Terminal antenna / ground plane independent
Frequency: 689-960/1710-2170 MHz, 2396-2700 MHz
Gain: 2dBi/0dBd
Polarisation: vertical
Pattern: Omni-directional
VSWR: <2,5:1
Impedance: 50 OHM
Max Input Power: 10W
Dimensions (mm): Length: 163 / Width: 22 / Thickness: 7
Material: ABS
Colour: Black
Termination Data: Articulated SMA (m) connector

4GB Industrial grade CF-card Transcend TS4GCF220i, SLC, Operating temperature -40 - +85°C, internal Data Througput: up to 89 MB/s (read), up to 79 MB/s (write)
