Product Portfolio of 1ST-embedded GmbH

To make it easier for you to use our products, we enable the selection and ordering of sample quantities and small quantities of our products in our B2B shop with a variant selection that we have predetermined. For other configurations as well as for serial quantities and framework contracts, please contact us or ask us for a separate offer. To get the access data to our shop please contact us.

Of course, regardless of the number of pieces you can always contact us with your questions. We try to give you the best support for your project and we look forward to hearing from you by phone, email or via our contact form.

Our offer is aimed exclusively at companies, traders and public institutions. The prices listed here are net plus statutory VAT and shipping costs from Hamburg.

Sale

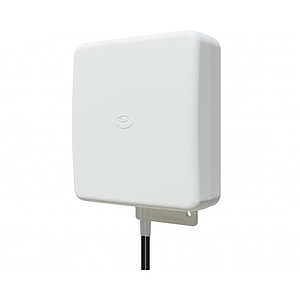

5G ready LTE MiMo Antenna WMM8G-7-38-5SP
The WMM8G-7-38-5SP antenna is a high directional gain 2x2 MiMo signal boosting antenna for 2G, 3G,4G and many 5G networks. Incorporating two separately fed wideband elements in a single housing the WMM8G-7-38 is equipped to provide client side MiMo and diversity support. With 6dBi of peak gain at 698-960MHz and 9dBi peak gain at 1710-3800MHz the WMM8G-7-38 provides extra gain for next generation networks.
The rugged, weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided.
A 5 meter long, double-shielded (low loss) twin cable with high-quality connectors allows easy installation and cable routing.
Frequencies:
Element1: 698-960MHz, 1710-2700MHz, 3400-3800MHz
Element2: 698-960MHz, 1710-2700MHz, 3400-3800MHz
Gain:
@ 698-960MHz 6dBi
@ 1710-2170MHz 9dBi
@ 2396-2700MHz 9dBi
@ 3400-3800MHz 9dBi
Polarization: +/- 45 ° Vertical
Radiation pattern: Directional
Dimensions: height 230mm / width 180mm / depth 94mm
Material: UV-resistant ASA plastic
Color: RAL9010 (pure white)
Attachment: wall-mounted / pole-mounted / table-mounted

Cable Type: SR1-029-B-T
Cable length 2x 5m
Plug: SMA plug (m)
Sale
C29 Extension Twin Cable 5m SMA Plug to SMA Jack
C29 Extension Twin Cable 5m SMA male to SMA female
Cable Type: SR1-029-B-T
Resistance: 50 OHM +/- 2 OHM @ 1GHz
50 OHM +/- 4 OHM @ 2GHz
Loss: 3dB / 10m @ 1GHz
4.5dB / 10m @ 2GHz
Cable diameter: 2x5mm
Outer jacket: Black Flexible PVC
Foil braid shielding: aluminum foil / tinned copper
Insulation: white polyethylene
Inner conductor: copper
Length: 5m
Connection side 1: SMA plug (m)
Connection side 2: SMA jack (f)
Sale
C29 Extension Twin Cable 10m SMA plug to SMA jack 2C29SP-10SJ
C29 Extension Twin Cable 10m SMA male to SMA female
Cable Type: SR1-029-B-T
Resistance: 50 OHM +/- 2 OHM @ 1GHz
50 OHM +/- 4 OHM @ 2GHz
Loss: 3dB / 10m @ 1GHz
4.5dB / 10m @ 2GHz
Cable diameter: 2x5mm
Outer jacket: Black Flexible PVC
Foil braid shielding: aluminum foil / tinned copper
Insulation: white polyethylene
Inner conductor: copper
Length: 10m
Connection side 1: SMA plug (m)
Connection side 2: SMA jack (f)
Sale
2G/3G/4G Terminal Antenna PWB-BC3G-26-RSMAP
2G/3G/4G Terminal antenna / ground plane independent
Frequency: 689-960/1710-2170 MHz, 2396-2700 MHz
Gain: 2dBi/0dBd
Polarisation: vertical
Pattern: Omni-directional
VSWR: <2,5:1
Impedance: 50 OHM
Max Input Power: 10W
Dimensions (mm): Length: 163 / Width: 22 / Thickness: 7
Material: ABS
Colour: Black
Termination Data: Articulated SMA (m) connector
