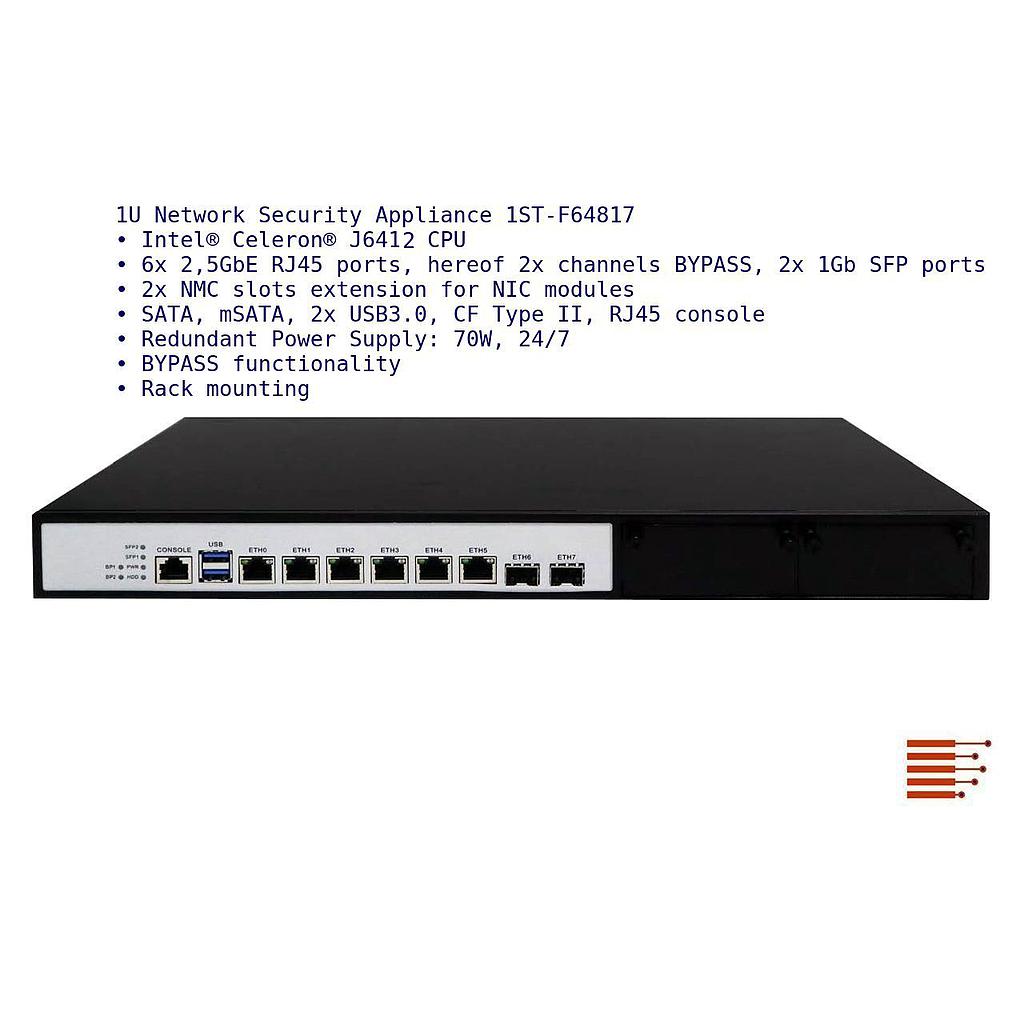

1U Network Security Appliance 1ST-F64817
The Network Security Appliance with Intel® Celeron® J6412 quad-core CPU, 6x RJ45 GbE ports thereof 2x channels BYPASS, 2x 1Gb SFP ports, 2x NMC slots extension for NIC modules, one SATA and one mSATA interface, 2x USB3.0, 1x CF-card Type II Slot, 1x RJ45 console for RS232 communication, 260-pin 3200 MHz DDR4 SO-DIMM slot for up to 32 GB RAM, internal 70W PSU, 100 ~ 240V AC input
Lead time 2-3 days when available
1U Network Security Appliance
6x 2,5GbE ports thereof 2 channels BYPASS, 2x Gb SFP ports, Redundant Power Supply
The Hardware Firewall is designed for the extended temperature range -10° C ~ 50° C with Intel® Celeron® quad-core J6412 processor (Embedded CPU).
In addition to the 8 existing LAN ports, 2 LAN expansion modules can be installed. You can choose from ten different NIC modules, allowing you to respond flexibly to your network requirements.
This Network Security Appliance is suitable for Automation, Network Security, Company Network, VPN Gateway, IDS/IPS and others.
A redundant 70W power supply ensures smooth 24/7 operation.
Simple Rack or Desktop mounting options are available.

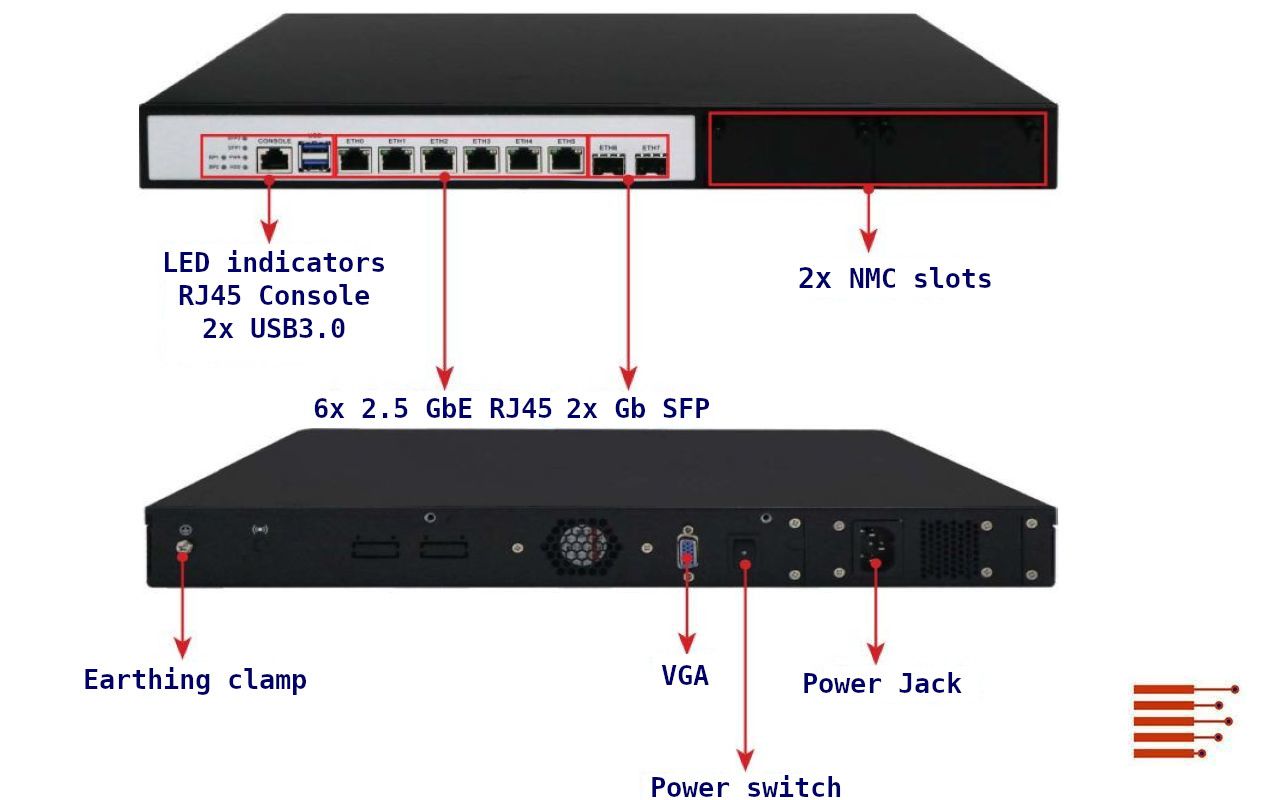

Features
1U chassis, heavy duty metal
Intel® Celeron® quad-core J6412 processor, 4 cores & threads, 10W TDP
6x 2,5GbE RJ45,thereof 2x channels BYPASS; Intel® I225-V controller
2x 1Gb SFP ports
2x NMC slots extension for NIC modules
260-Pin DDR4 SO-DIMM slots for up to 32 GB RAM
1x SATA and 1x mSATA Interfaces
2x USB3.0, 1x CF Type II
1x RJ45 console for RS232 communication, support USB3.0, mSATA, COM
Built-in 1x VGA interface with hot plug support
BYPASS functionality
Redundant Power Supply: 70W
Extended Temperature Range: -10°C ~ 50°C
Rack mounting or desktop mounting
Windows, Linux, FreeBSD - compatible
24/7 operation
Applications
Company Network
VPN Gateway
Industrial Automation
IDS/IPS
Firewalls
Optional NIC Modules
35N4
4x GbE RJ45 ports based on Intel® I350 Controller
35NF8
4x GbE RJ45 and 4x Gb SFP ports based on Intel® I350 Controller
35F4
4x Gb SFP ports based on Intel® I350 Controller
35NF4
4x GbE RJ45 and 4x Gb SFP ports based on Intel® I350 Controller
35N8
8x GbE RJ45 ports based on Intel® I350 Controller
58B2
2x Gb SFP ports based on Intel® 82580DB Controller, with 1 channel BYPASS
59W2
2x 10Gb SFP+ ports based on Intel® 82599ES Controller
71W4
4x 10Gb SFP ports based on Intel® XL710 Controller
35F8
8x Gb SFP ports based on Intel® I350 Controller
71B4
4x 10Gb SFP ports based on Intel® XL710 Controller, with 2 channels BYPASS
