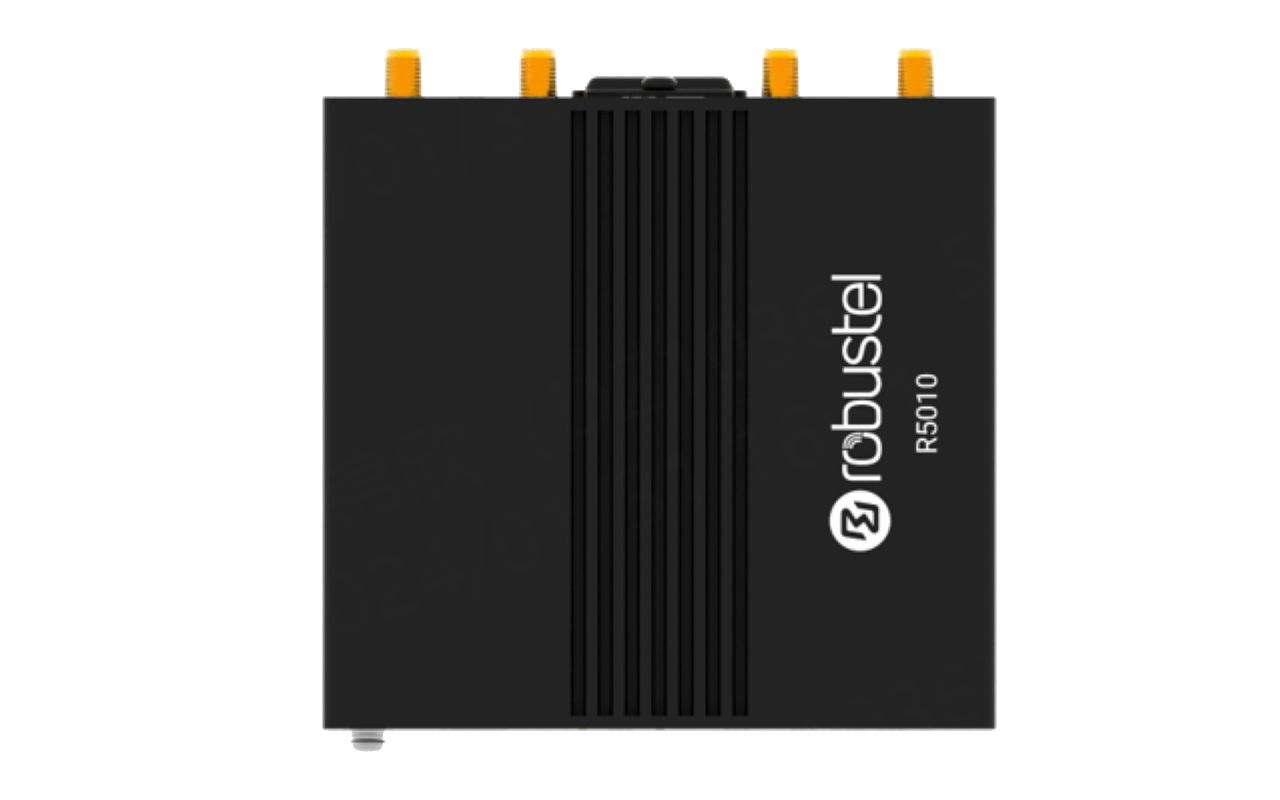

5G Industrial Cellular Router R5010
The R5010 is Robustel's new 5G capable router for global 5G/4G/3G cellular connections with Cutting-edge 5G 3GPP Release 16 cellular interface. It provides an 2,5 GBit/s Ethernet port for PoE-PD (compatible with IEE 802.at standard) and an USB 3.1 (Type C) port for Power Supply, Network and Debugging. The Dimensions are 100x94x30mm and the operating temperature is -40ºC ~ +70ºC. Robust metal enclosure with DIN-rail or wall mount options.
Lead time 2-3 days when available
Robustel High Speed 5G Router R5010
global 5G/4G, 2,5Gb LAN, Dual SIM, PoE-PD, USB, rugged
The R5010 is compatible with 3GPP Release 16 and targeted at the following applications:
Primary Broadband - cellular network operators provide now unlimited 5G tariffs at very reasonable prices. For many, a chance to use a wireless internet connection can be technically and commercially favorable.
SD-WAN - whilst many appliances have cellular options built-in, the R5010 can offer a very low-cost way to add a 5G backup route & by virtue of being able to located externally to the appliance, is more likely to get a good 5G signal.In addition, the PoE connection makes it easy to find a location for the router where the 3.5 GHz 5G signal can be easily received.
RCMS is Robustel’s free router monitoring service that is fully compatible with the R5010. It is an extremely polished piece of software hosted on MS Azure & available as a privately hosted instance.
Supporting 4G cellular networks, R5010 is also a powerful router which means that even locations without 5G coverage currently can still benefit from broadband in excess of 100Mbps.
With its on-board smarts, compact size and ultra-competitive price point, the R5010 is one of the most attractive options for customers looking to migrate from previous generation technologies to 5G.

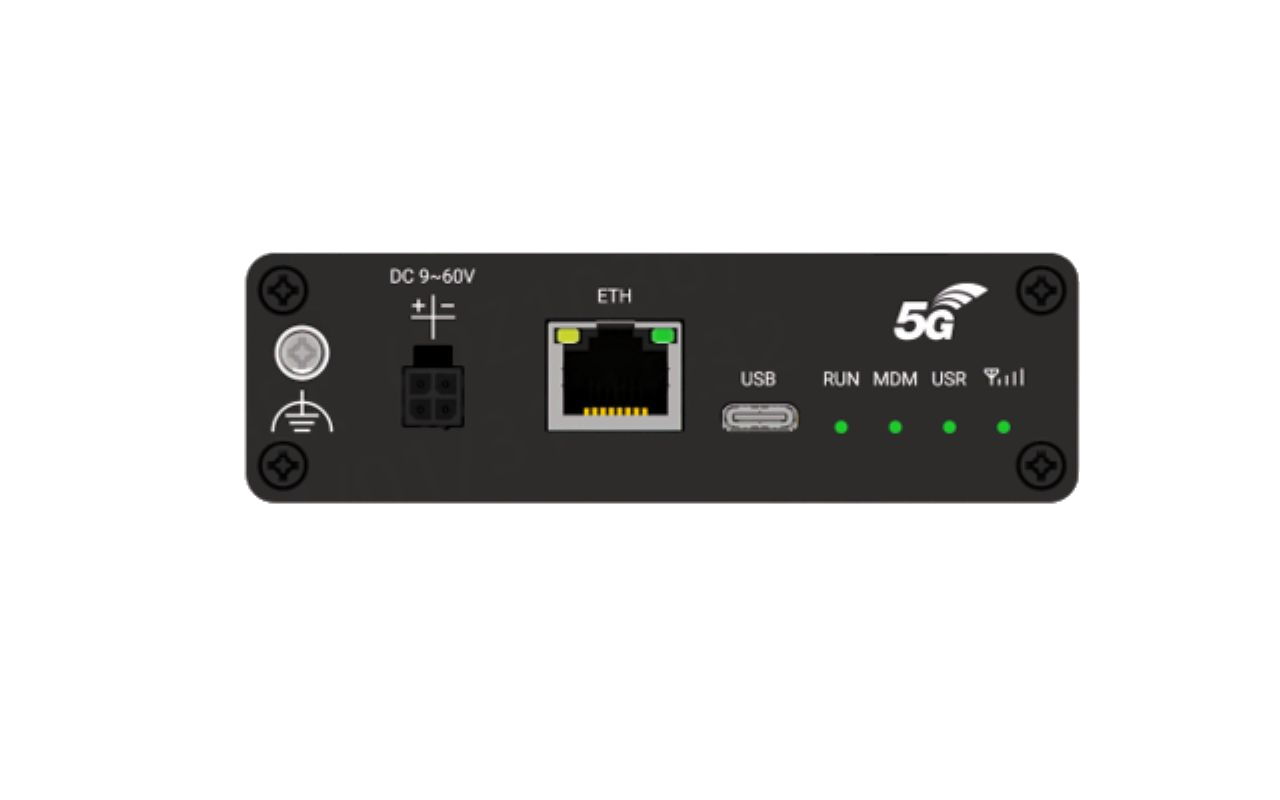

Features
1x 2,5Gb LAN, support 802.3at PoE-PD feature
1x USB 3.1 (Type C)
Dual SIM function with auto-failover
Antennas: 4x 5G Cellular antennas
Cutting-edge 5G 3GPP Release 16 cellular interface
RobustOS5
Multiple VPN options available, including DMVPN, IPSEC, OpenVPN, GRE protocols
Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management: Web, CLI, SMS
LED indicators: 1x RUN, 1x Modem, 1x USR, 1x RSSI
Operating Temperature -40 ~ +70 °C,
Storage temperature -40°C ~ +85°CInput voltage 9 ~ 60V DC, 5V/3A by USB Type C
PPoE-PD voltage 44 ~ 57V DC, all voltage inputs (DC, PoE, USB) can be operated simultaneously or independently of each other
SIP30 protection, aluminum housing, 276 g
Dimension 100 x 94 x 30 mm
Installation: DIN-rail mounting, desktop or wall mounting

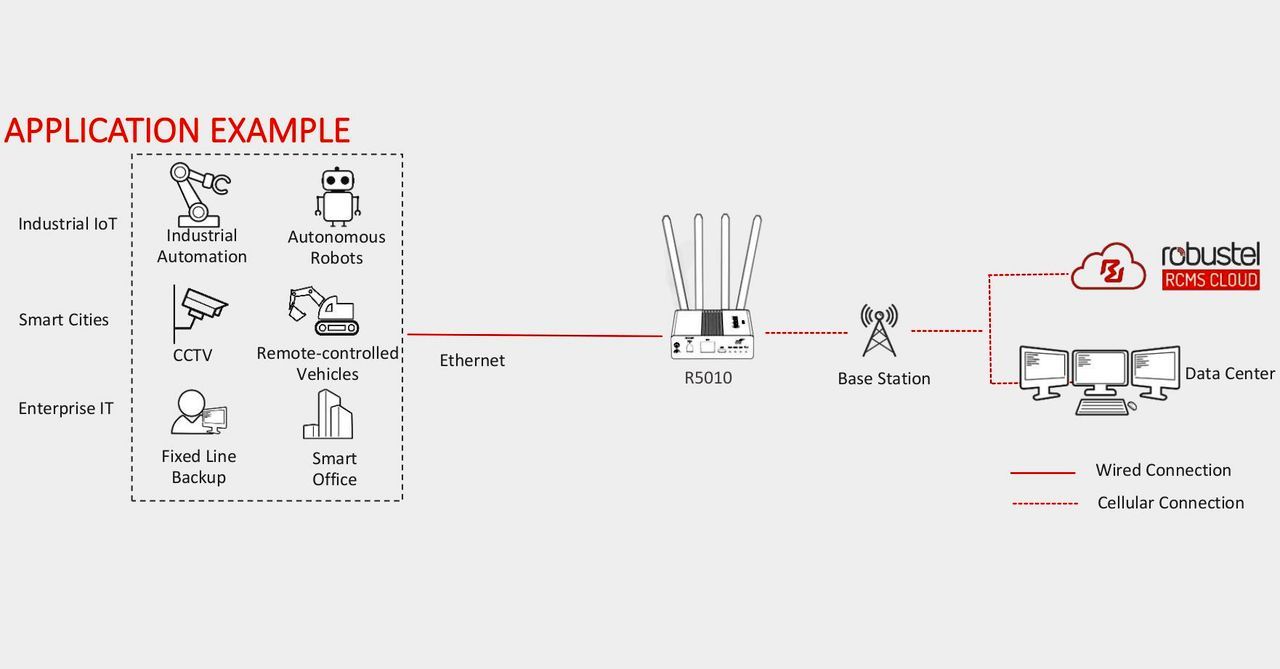

Applications
Primary Broadband
5G for SD-WAN
Industry 4.0: Automation, Manufacturing
Enterprise IT: Enterprise / SD-WAN applications as a 5G managed modem, Network Backup, Smart Office
