5G Industrial Edge Computing Gateway EG5120

Get Quote

5G Industrial Edge Computing Gateway with Arm Cortex-A53 quad-core CPU, 16 GB eMMC Flash, 2x Gb Ethernet Interface, 2x DI & 2x DO, 2x RS232/RS485, Dual-band WiFi, Dual SIM function, wide operating temperature range -40 ~ +70 °C.
IP30 metal housing for desktop, wall mounting and DIN rail mounting.


 Lead time 2-3 days when available

5G Industrial Edge Computing Gateway EG5120

global 5G/4G, 2x GbE, Dual SIM, 2x RS232/RS485, GPS, 2x digital I/O, rugged

The Robustel EG5120 5G Industrial Edge Computing Gateway is driven by Arm Cortex-A53 1.6 GHz quad-core CPU and together with integrated NPU of 2.3 TOPS und 16 GB eMMC Flash this ensures fast machine learning. As a combination of Mobile Router and Embedded PC, the system is thus ideally suited for Edge Computing and Edge AI applications in industry.

The Robustel EG5120 5G Industrial Edge Computing Gateway is equipped with a fully-fledged Debian 11 (bullseye) based operating system able to support thousands of existing or new ARMv8 (Raspberry Pi compatible) based applications.

This Edge Computing Gateway supports global 5G/4G cellular connections, Gigabit Ethernet Interface, WiFi, Bluetooth and GPS/GNSS.
Rugged and compact metal housing is suitable for Desktop, DIN-Rail or Wall mounting.

Features

  • Arm Cortex-A53 1.6 GHz quad-core CPU

  • 16 GB eMMC Flash

  • Ethernet Interface: 2x GbE LAN

  • Bluetooth 5.2

  • 2x DI & 2x DO - for connection to industrial/legacy devices, baud rate up to 115200bpsl

  • Serial Interface: 2x RS232/RS485, for connection to industrial/legacy devices, baud rate up to 115200bps

  • WiFi Interface: IEEE 802.11a/b/g/n/ac, 2x2 MIMO, supports Access Point and Wireless Client mode

  • Antennas: 2x WiFi; 2x 4G or 4x Cellular thereof 1x GNSS

  • GNSS technology: GPS/GLONASS/BeiDou/Galileo/QZSS

  • Dual-band WiFi: 2.4GHz up to 300Mbps and 5.8GHz up to 867Mbps

  • Dual SIM function for redundant communication

  • Remote management Web, CLI, SMS

  • Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU, Modbus TCP

  • Multiple VPN options available, including DMVPN, IPSEC, OpenVPN, GRE protocols

  • Security: WPA, WPA2, WEP

  • Encryption: AES, TKIP, WEP64: WEP 64-bit and 128-bit encryption with H/W TKIP processing

  • Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

  • LED indicators: 1x RUN, 1x Modem, 1x USR, 1x 5G/4G

  • Expansion: 1x USB2.0 Host; 5V/500mA

  • Wide Operating Temperature -40 ~ +70 °C

  • Dimensions 49 x 105 x 128 mm

  • IP30 protection, metal housing

  • Desktop, wall mounting and DIN rail mounting

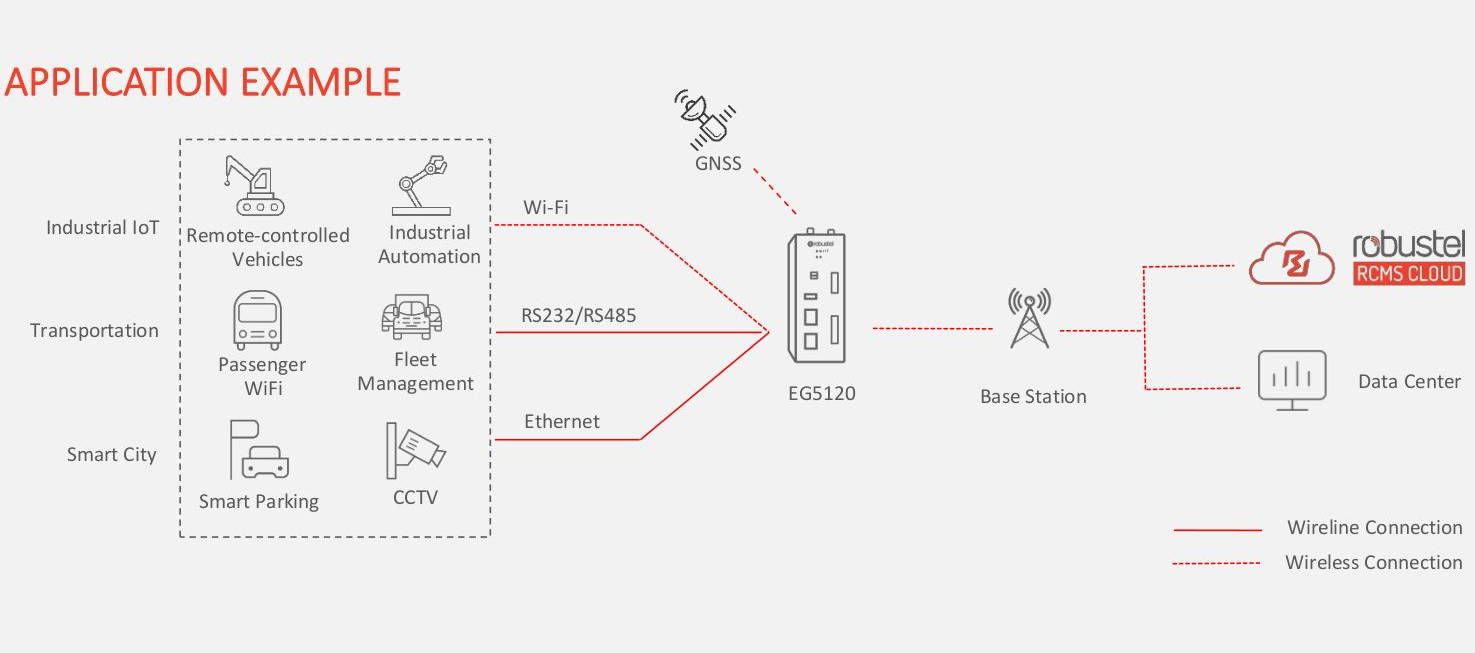

Applications

  • Industry 4.0: IoT, Remote Monitoring, Automation, AI, Robotics

  • Smart City: HD CCTV, Traffic Control, Lighting Management, Disaster Monitoring, Smart Parking

  • Transportation: Passenger WiFi, Fleet Management

  • Other Industries: Agriculture, Energy, Oil, Gas, Mining, Construction sites, Smart Ports
