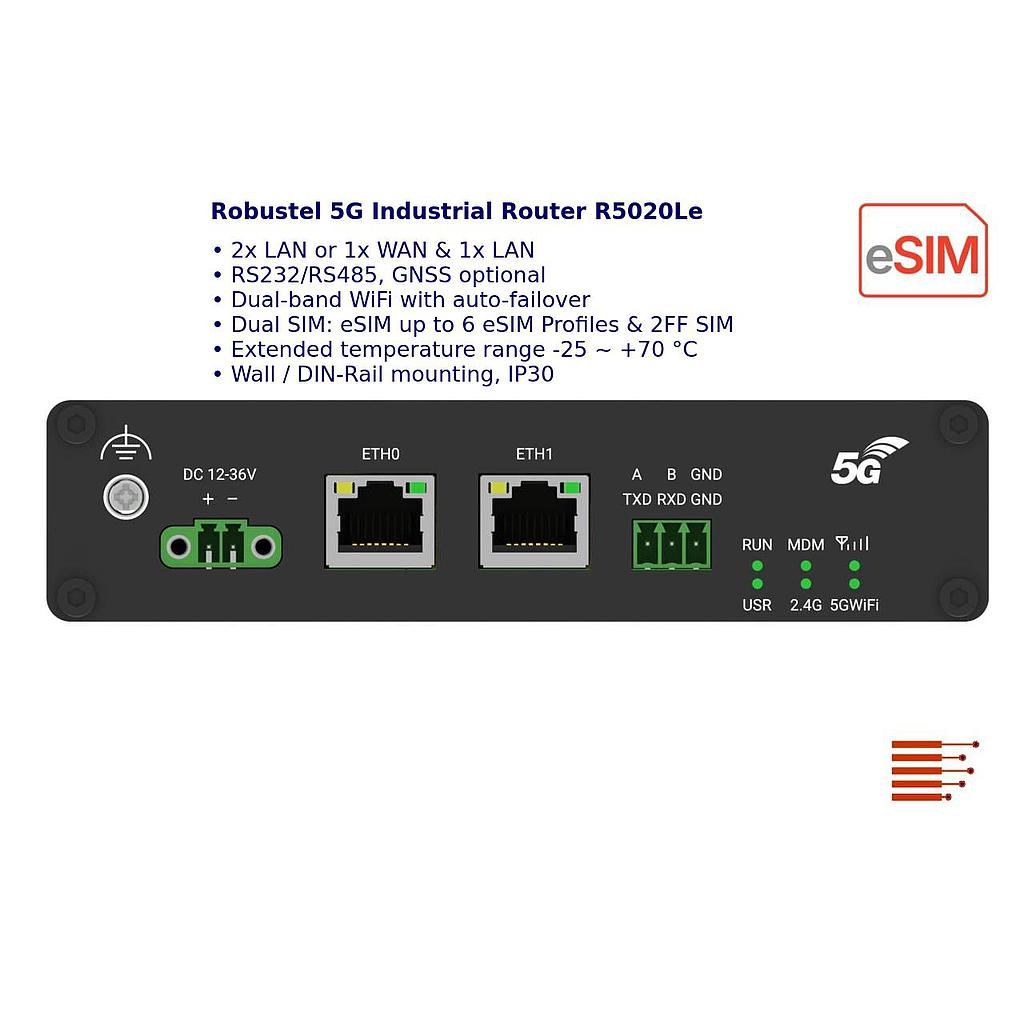

5G Industrial Router R5020Le
The Robustel R5020Le 5G Industrial Router for global 5G/4G cellular connections (Dual SIM: 1x SIM + 1x eSIM) supports 2x Gb Ethernet or 1x LAN and 1x WAN, 1x RS232/RS485, WiFi (AP and Client modes) and 5G/4G internet with auto-failover. This IoT Router enables Linux based VPN Tunnel: IPSEC, OpenVPN, GRE, WireGuard and DMVPN, has IP30 protection and works at extended temperature range -25°C ~ +70°C on critical IoT applications. GNSS interface is optional. Mounting takes place on the desktop, on the wall or DIN-Rail. The hybrid SIM architecture with a physical SIM card slot and an eSIM simplifies international use, subscription management, and long-term operation of the device throughout its entire life cycle.
Lead time 2-3 days when available
Robustel High Speed Smart 5G Router R5020Le
global 5G, 2x LAN, eSIM up to 6 eSIM/eUICC Profiles and SIM, Dual-band WiFi
The Robustel R5020Le is an industrial-grade 5G router purpose-built for organisations that require flexible global connectivity while maintaining high performance and reliability at the edge. Built on the proven R5020-Lite platform, the R5020Le replaces the secondary physical SIM slot with an embedded MFF2 eSIM with GSMA SGP.22 compliant, enabling a hybrid SIM architecture (1x SIM + 1x eSIM) that simplifies international deployment, subscription management, and long-term device lifecycle operations.
Robustel Cloud Manager Service (RCMS) is a cloud-based platform for real-time monitoring and centralized management of Robustel routers and gateways. With Zero-Touch eSIM Provisioning, RCMS allows enterprises to remotely assign and activate eSIM profiles at scale - overcoming the industry limitation where SGP.22 cannot support mass deployment on its own.
This capability eliminates manual SIM handling, reduces on-site labour, and accelerates global rollouts.
Unlike traditional dual-SIM routers, the R5020Le introduces a set of advanced eSIM capabilities designed to accelerate global IoT rollout and reduce operational friction:
- Global Frequency Band Support: ensuring consistent performance across major regions and simplifying cross-border for OEMs and system integrators.
- Robust and Secure eSIM Profile Management: supports remote enable/disable and profile switching, allowing operators and enterprises to optimise connectivity and reduce reliance on physical SIM logistics.
- Auto Failsafe Recovery: When profile download or activation fails, the device automatically rolls back to the previous working profile, ensuring continuous connectivity and preventing remote provisioning failures.
- Enhanced lifecycle management: eSIM profile rotation reduces dependence on long-term roaming agreements and mitigates SIM-card-swap maintenance tasks.
More Robustel Industrial Router
Features
Ethernet Interface: 2x GbE by default or 1x WAN and 1x LAN
WiFi Interface: IEEE 802.11a/b/g/n/ac, 2x2 MIMO, supports Access Point and Wireless Client mode
Antennas: 2x WiFi; 4x 5G Cellular antennas
Dual-band WiFi: 2.4GHz up to 300Mbps and 5.8GHz up to 867Mbps
Dual SIM function: 1x mini SIM (2FF) and 1x eSIM (MFF2) up to 6 eSIM/eUICC Profiles
Auto reboot via SMS, Web, CLI
Serial Interface: 1x RS232 or 1x RS485, baud rate up to 115200bps
GNSS optional: GPS/QZSS/Galileo/GLONASS/BDS
Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU to Modbus TCP
Multiple VPN options available, including DMVPN, IPSEC, OpenVPN, GRE protocols
Security: WEP, WPA, WPA2, WPA3
Encryption: AES, TKIP
Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
LED indicators: 1x RUN, 1x Modem, 1x USR, 1x RSSI, 1x USR, 1x WiFi 2.4G,1x WiFi 5G
Extended Operating Temperature -25 ~ +70 °C
Input voltage 12 ~ 36 VDC
IP30 protection, aluminum housing, 475 g
Dimension 136 x 115 x 32 mm
Desktop, wall mounting and DIN-Rail mounting
Applications
Industry 4.0: IoT, Automation, Autonomous Robots
Smart City: CCTV, Real-time Management, Remote-controlled Vehicles
Enterprise IT: Internet access, Network Backup, Smart Office
