Edge AI Workstation BRAV-7520

Get Quote

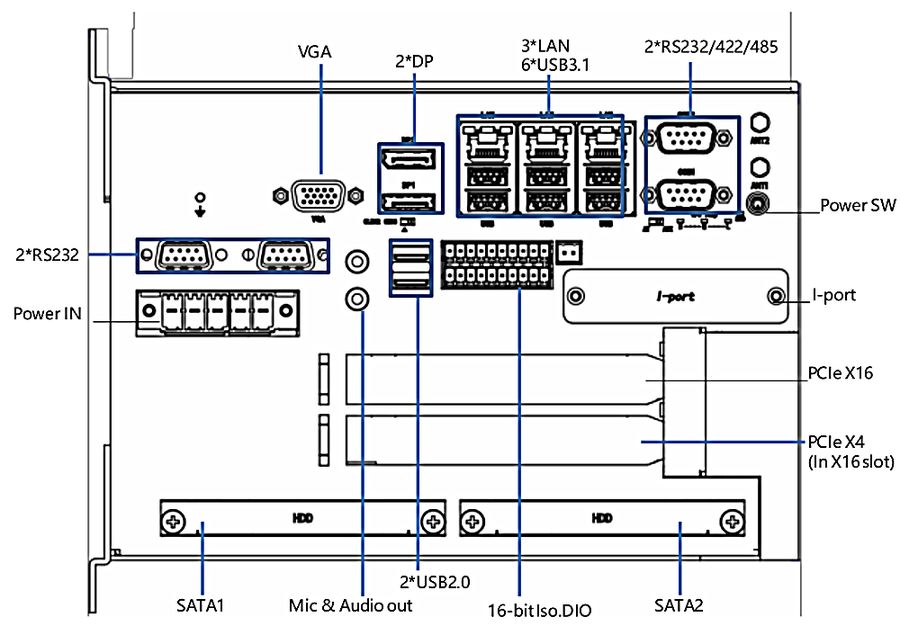

AI workstation with Intel® core-i7 8700 CPU, Q370 PCH, 16 GB DDR4-SDRAM memory, 3x LAN, 6x USB3.1, 2x USB2.0, 4xCOM, 1x MiniPCIe, M.2 E-Key, M.2 B-Key, M.2 2280 M-Key, 1x PCIe x16, 1x PCIe x4, 1x VGA, 2x DP, 16-bit Isolated Digital I/O, 2x 2,5" SATA, 12DC power input, with Modular I/O Expansion Design, support 350W GPU-card, support 75W AI acceleration card, optional Audio-Out and Mic-In.


 Lead time 2-3 days when available

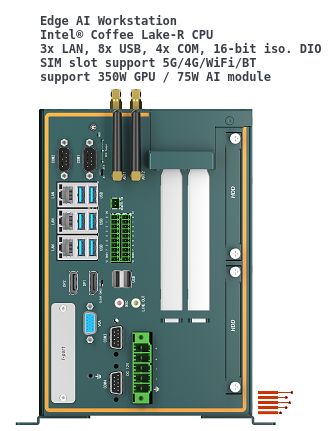

Edge AI Workstation with Intel® Coffee Lake-R CPU

support: 5G/4G/WiFi/BT, 350W GPU, 75W AI modules

Features


  • Intel® 8th/9th Gen. Coffee Lake Core™ i3/i5/i7/ Pentium®/ Celeron® CPU

  • Intel® UHD Graphics support DirectX12, OpenGL 4.5 and OpenCL 2.1 or PCIe x16 GPU

  • 4x DDR4 2400/2666MHz SO-DIMM, dual channel up to 128GB

  • 2x DP 1.2 max resolution 4096x2304@60Hz, 1x VGA, max resolution 1920x1200@60Hz

  • 3x LAN, support Intel® AMT, Intel® vPro®

  • 6x USB 3.1, 2x USB 2.0, 4x COM

  • 16-bit iso. DIO: 8-bit Iso. DI and 8-bit Iso. DO

  • M.2 3052 Key B with SIM slot support 5G

  • M.2 2230 Key E, support WiFi6/BT 5.0

  • 1x miniPCIe with SIM slot, support 4G/WiFi/BT

  • 1x PCIe x16, support max 150W GPU,1x PCIe x4, support 75W AI Module

  • 2x 2.5” SATA3.0 support RAID 0.1

  • M.2 2280 Key M for NVMe SSD

  • 2x RS232/422/485, 2x RS232

  • I-port reserved interfaces, can support optional USB 2.0, 16-bit GPIO or miniPCIe and M.2 I/O ports

  • 9~36V DC, with short circuit, over voltage and over current protection

  • RoHS-, FCC- and CE certified

  • OS support: Windows 10 Enterprise & IoT Enterprise, Linux: SUSE, Ubuntu, Red Hat Enterprise 1.2; Wind River, VxWorks 7

Applications


  • Retail: Point of Sale, Digital Signage, Logistic

  • IIndustry 4.0: IoT, Machine Vision, Automation, AI, Robotics, AR

  • Smart City: Public safety and surveillance, Traffic Control, Disaster Monitoring

  • Healthcare: Telemedicine Diagnosis, AR and AI consultations

  • Transportation: autonomous vehicles UV, traffic volume

  • Other Industries: Agriculture, Energy, Oil, Gas, Mining, Construction sites, Smart Ports
