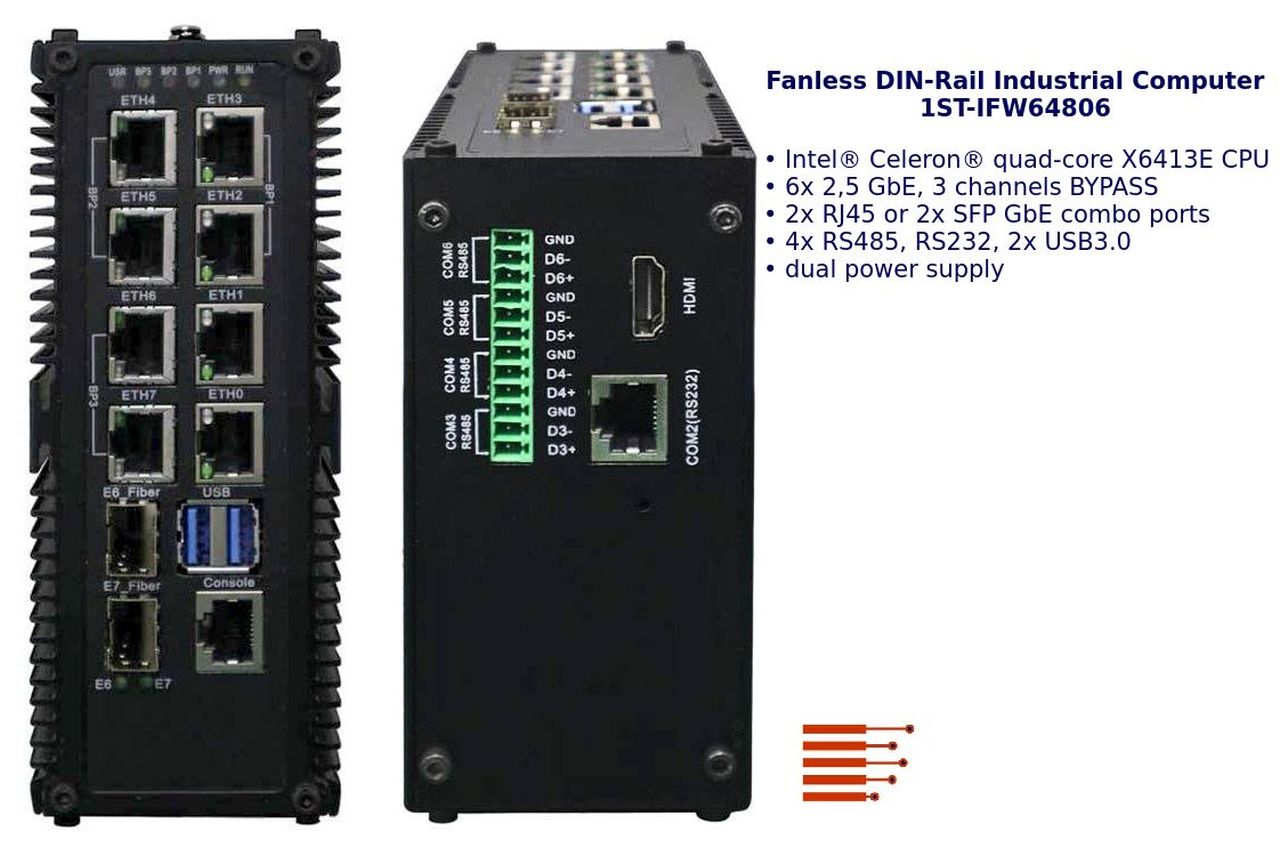

Fanless DIN-Rail Industrial PC 1ST-IFW64806
Fanless DIN-Rail Industrial Computer with Intel® Celeron® X6413E CPU, DDR4 SO-DIMM slot up to 32GB, 6x 2.5G LAN ports, 3x channels BYPASS, RS232, 4x RS485, RJ45 console port, 2x USB3.0, mSATA storage, HDMI, 2x 9~36V DC-In, -40°C ~ 70°C.
Lead time 2-3 days when available
Fanless DIN-Rail Embedded PC for 24/7
Intel® Celeron® X6413E CPU, 6x 2.5GbE, 3 BYPASS, 2x SFP GbE
The DIN-Rail Industrial PC is a small form factor fanless embedded computer which supports wide temperature for industrial application environments.
The fanless embedded computer built with Intel® Celeron® quad-core X6413E processor, 6x 2.5G RJ45 network ports, 3 channels LAN BYPASS, 2x combo SFP or RJ45 ports, RS232, 4x RS485, dual power supply.
Features
Intel® Celeron® X6413E processor: 1.5GHz up to 3GHz, quad-core, TDP 9W
Intel® Ethernet Controller I225-V
DDR4 3200MHz SO-DIMM slot, up to 32GB
6x 2.5G LAN ports, 3x channels Gen3.0 LAN BYPASS
2x RJ45 or 2x SFP GbE combo ports
RS232, 4x RS485, RJ45 console port
2x USB3.0, mSATA storage
Display HDMI
2x 9~36V DC-In wide voltage
DIN-Rail mounting
Operating temperature -40°C ~ 70°C
Dimensions, Weight: 60,8x158,1x122 mm, 3,2kg
Fanless design, rugged
Applications
Company Network
VPN Network, Network Security Appliance
Industrial Automation
