Fanless Intel® Apollo Lake based embedded computer 1ST-IXAPL-35
power saving, robust and reliable

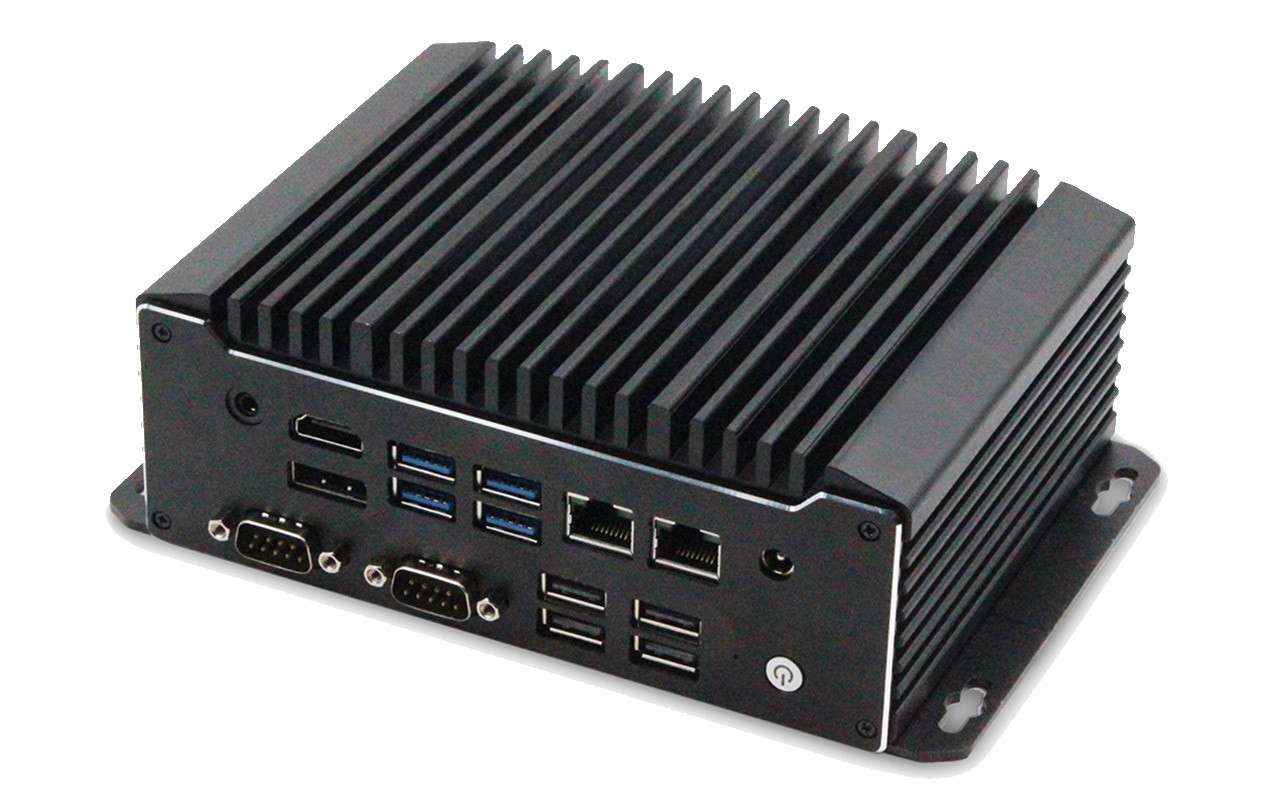

The 1ST-IXAPL35 is a small form factor embedded system. Built with the Intel® Apollo Lake platform, it supports Intel®
Celeron® /Pentium® N3350, J3355, N3450, J3455, N4200 and J4205. This system carries one DDR3L SO-DIMM slot with a total
maximum of 8GB to add higher bandwidth and lower latencies for processes. This computer features 2x LAN, M.2, SATA3.0
and eMMC, which makes it a good choice for data transportation application.

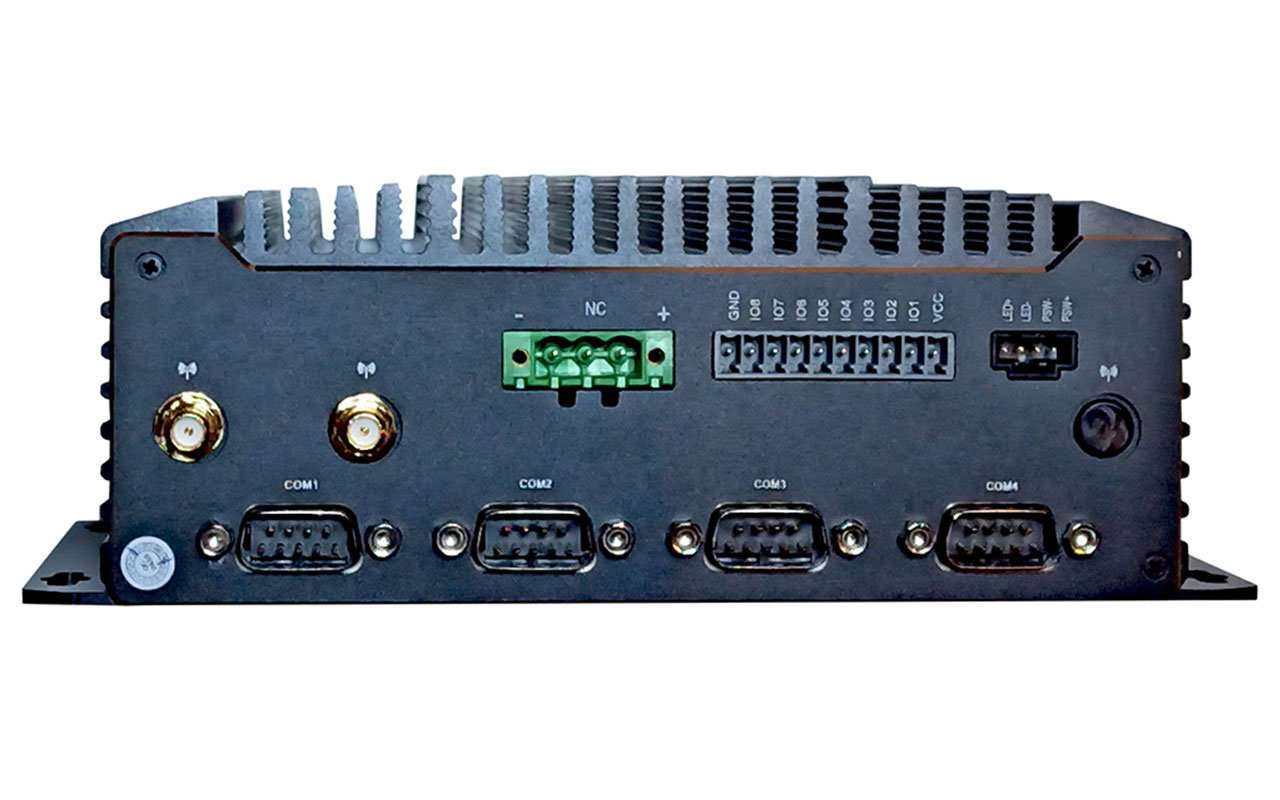

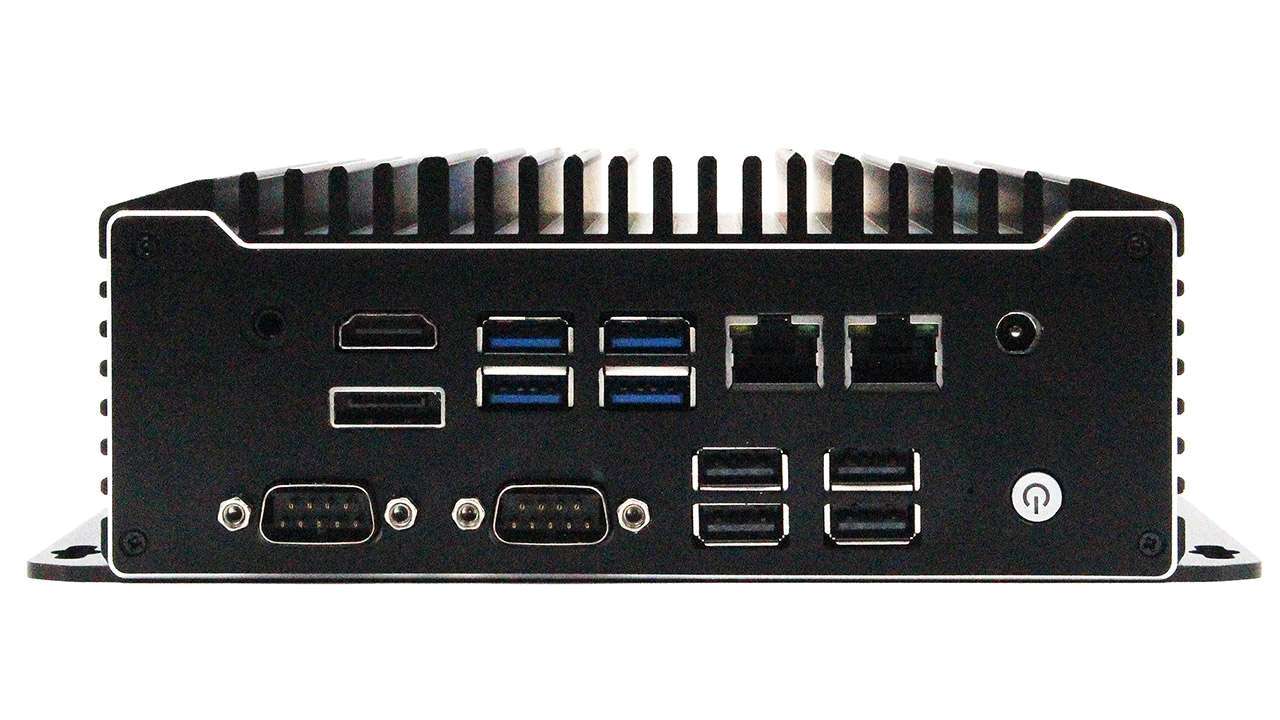

The system provides multiple display connections via 1x Display Port1.2 and 1x HDMI1.4. It has 2x 10M/100M/1000Mbps BASE-T Gb LAN (Intel® i211), 4x USB3.0, 4x USB 2.0, 4x RS232, 2x RS485 covering most of market demands. This Intel® Apollo Lake based system is developed to meet applications in automation, robotics, network security, transportation, monitoring systems and communication. The use of this system is not limited to only these applications.
Onboard Intel® Apollo Lake Celeron® /Pentium®
N3350, J3355, N3450, J3455, N4200 or J4205 CPU
1x SO-DIMM slot for memory up to 8GB
Multiple display: HDMI and DP
4x USB3.0, 4x USB2.0,
2x LAN (10/100/1000Mbps), 6x COM
Expansions: 1x SATA3.0,
1x M.2 (for 4G or 2242 SSD)
Industry 4.0 Solutions
