Fanless Intel® Elkhart Lake based embedded computer
support 4G, WiFi, power saving, rugged and reliable

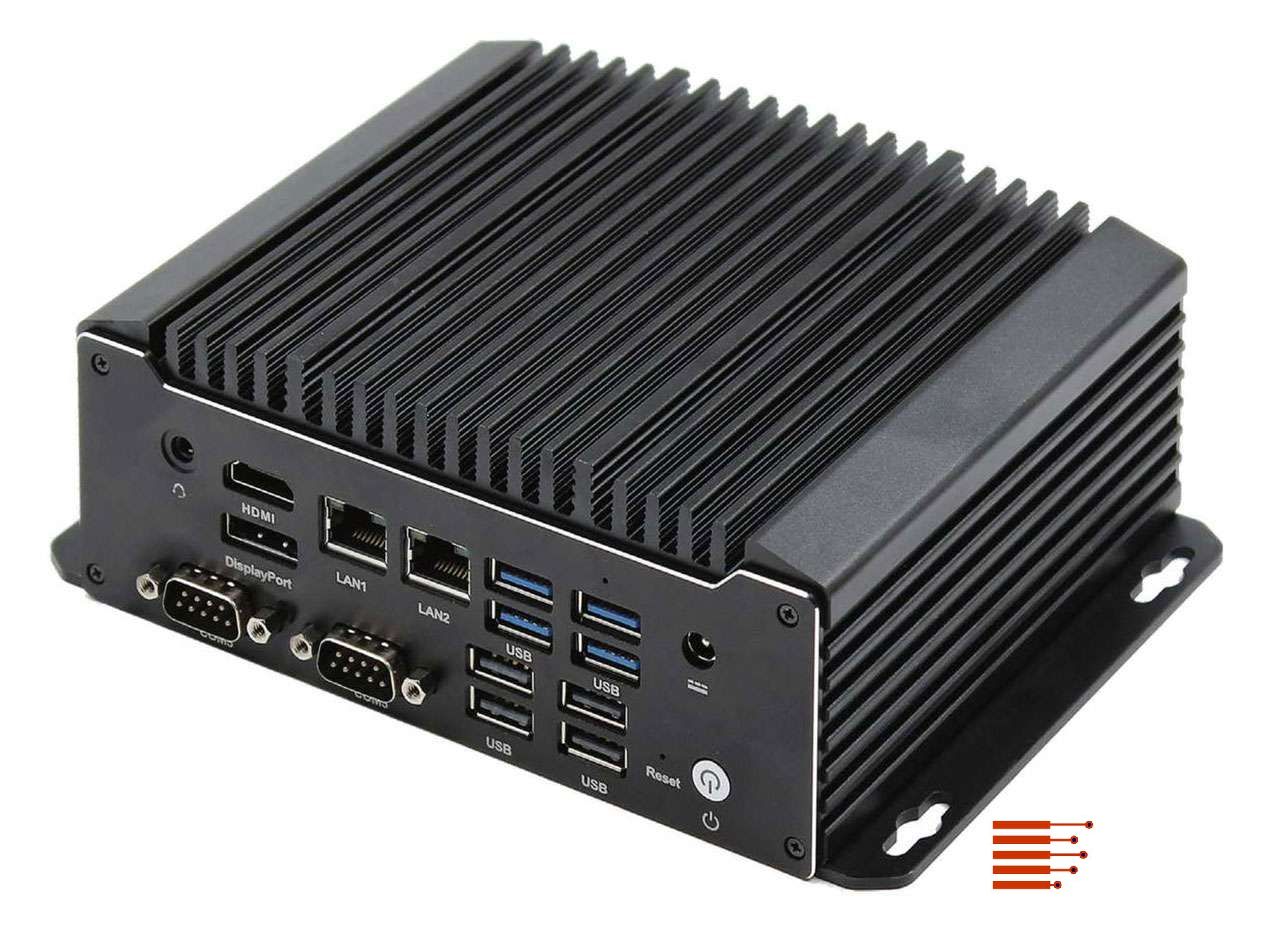

The 1ST-IXEHL-35 is a compact embedded system based on the Intel® Elkhart Lake platform. With the Intel® Celeron® J6412 CPU, 4 cores are available and the TDP is 10W. This system carries one DDR4 SO-DIMM slot with a total maximum of 32GB to add higher bandwidth and lower latencies for processes. This fanless computer features 2x LAN, M.2 for WiFi, SATA3.0 and mSATA for 4G/SSD, which makes it a good choice for data transportation application.

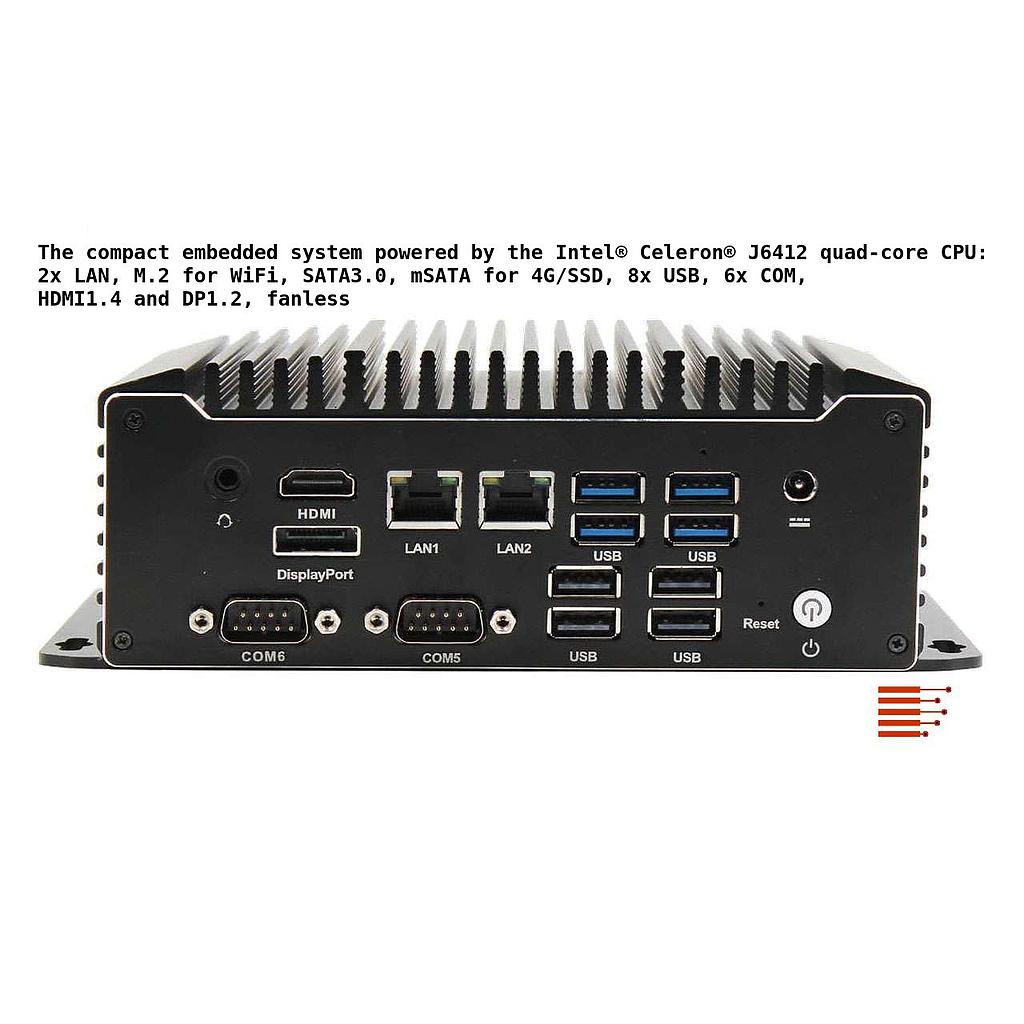

This system also features multiple display via 1x Display Port1.2 and 1x HDMI1.4. It has 2x 10M/100M/1000Mbps Gb LAN (Realtek RTL8111H), 4x USB3.2, 4x USB 2.0, 6x COM RS232/RS485, catering to most requirements in the market.
This Intel® Elkhart Lake based system is designed for various application as, but not limited to automation, robotics, network security, transportation, Monitoring in the Industry 4.0 and communication. But the use of this system is by no means limited to these applications.
This system also features multiple display via 1x Display Port1.2 and 1x HDMI1.4. It has 2x 10M/100M/1000Mbps Gb LAN (Realtek RTL8111H), 4x USB3.2, 4x USB 2.0, 6x COM RS232/RS485, catering to most requirements in the market.
This Intel® Elkhart Lake based system is designed for various application as, but not limited to automation, robotics, network security, transportation, Monitoring in the Industry 4.0 and communication. But the use of this system is by no means limited to these applications.
Features
Intel® Celeron® J6412 CPU
1x DDR4 SO-DIMM slot for up to 32GB
Multiple display: HDMI1.4 and DP1.2
4x USB3.2, 4x USB2.0, 2x LAN (10/100/1000Mbps), 6x COM
Expansions: 1x SATA3.0,1x M.2 for WiFi,

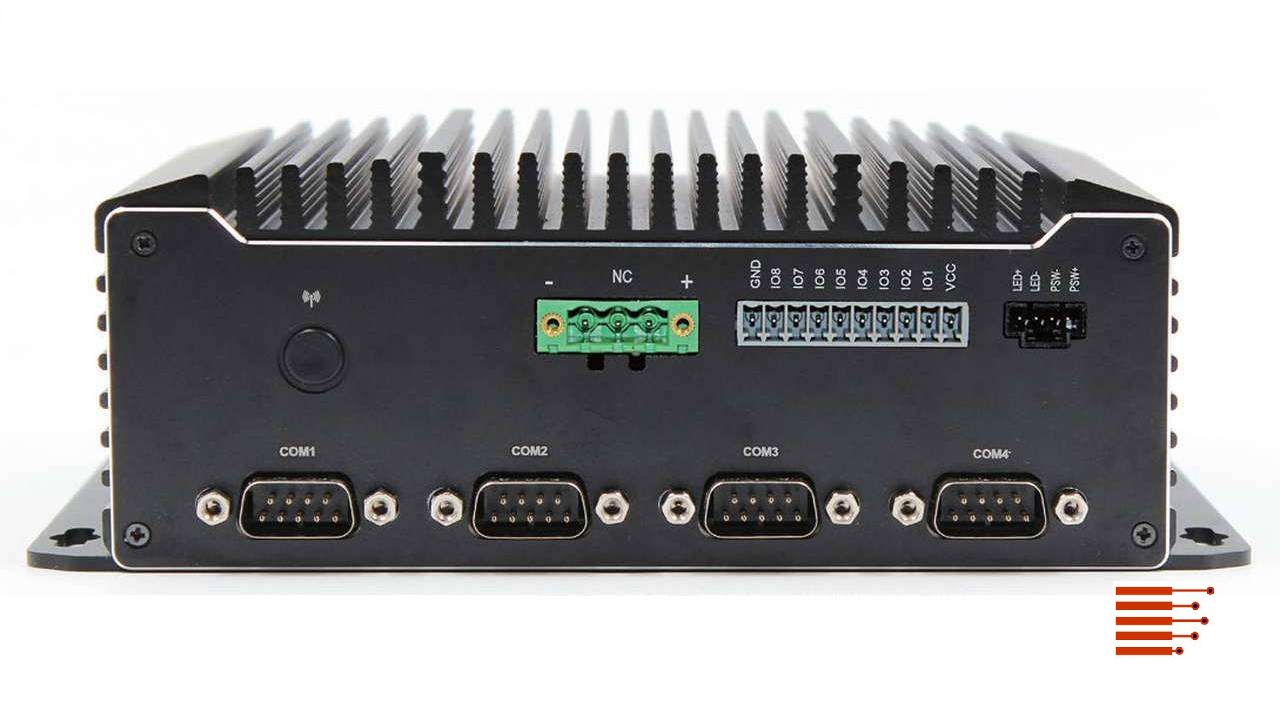

1x mSATA for 4G/SSD16~30V DC-IN / Phoenix Connector, 8-bit GPIO
Fanless design
Operating Temperature: -20℃ ~ 60℃
OS: supports Win 10/11 64 bit, Linux 64 bit
Applications
Industry 4.0 Solutions
Robotics
Automation
Network security
Monitoring Systems
Communication
Warehouse management
Transportation
