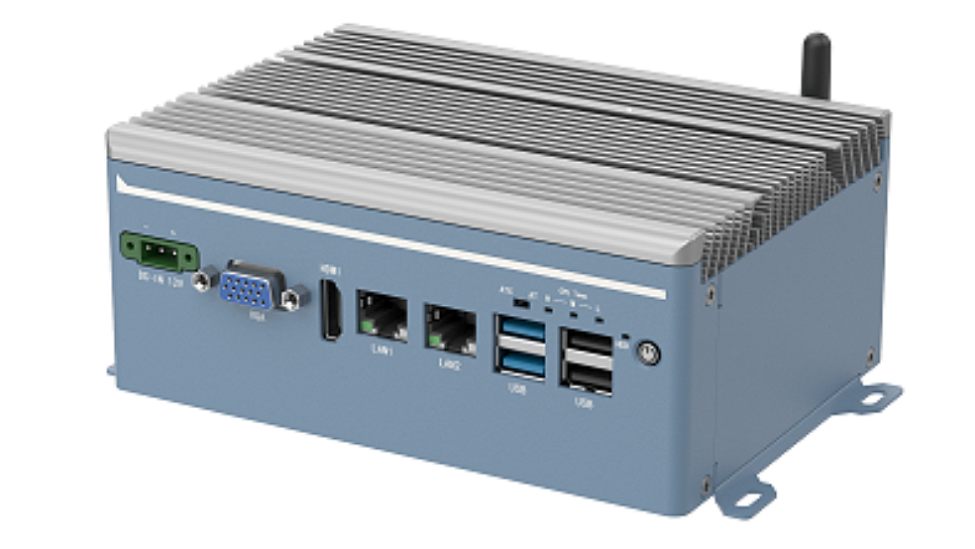

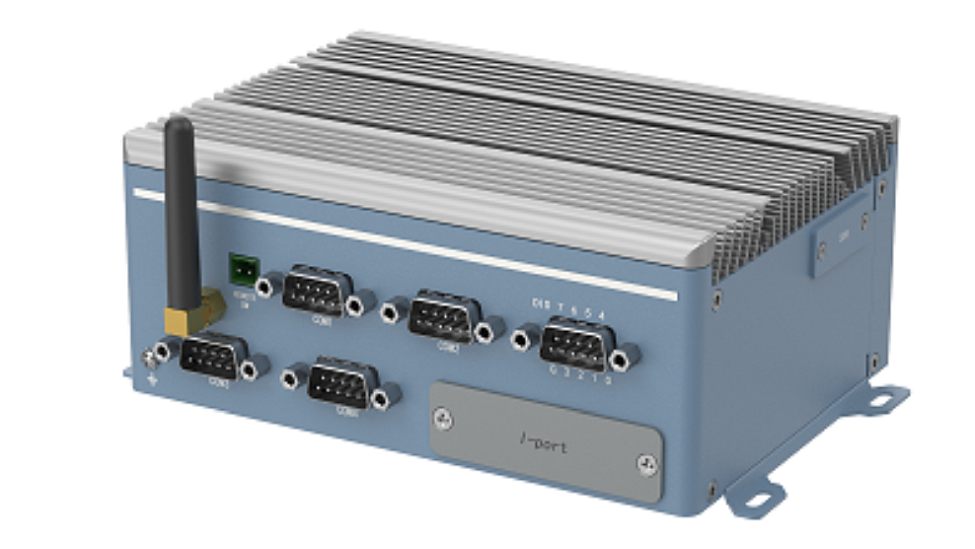

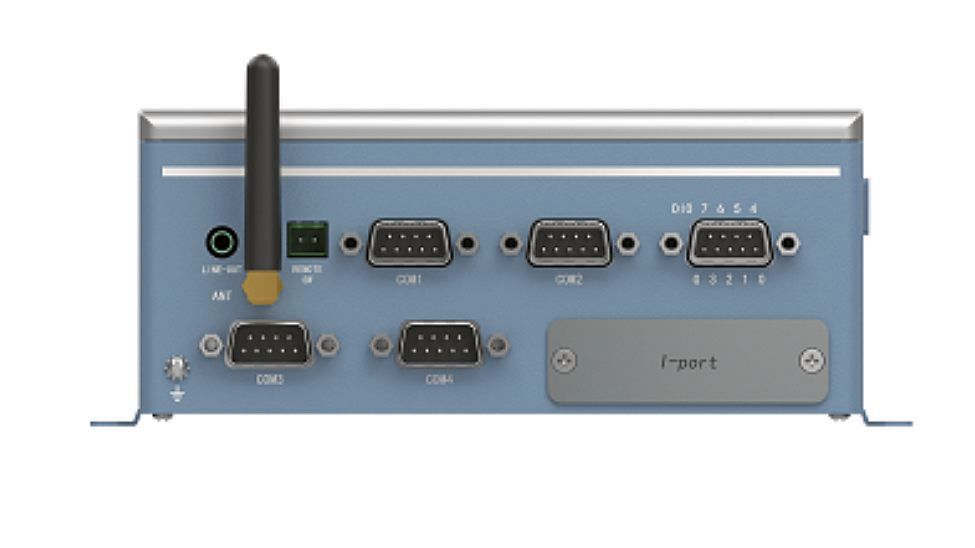

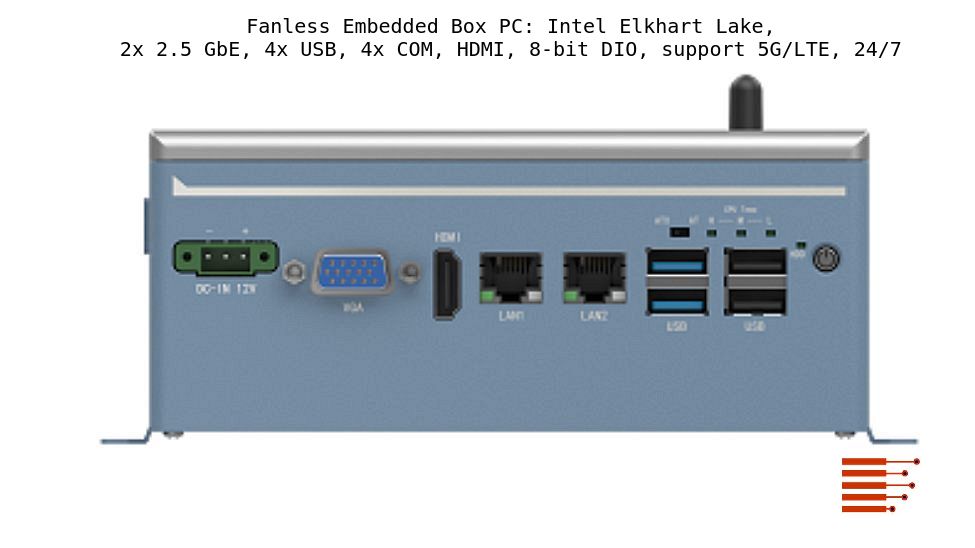

Fanless Industrial Computer KMDA-2630

Fanless Embedded Box PC for continuous operation with Intel® Celeron® J6412 or N6210 CPU, 2x 2.5 GbE, 4x USB, 8-bit DIO, SIM slot, support 5G/4G, 1x DDR4 3200 MHz SO-DIMM, up to 16GB; 2x RS232/422/RS485, 2x RS232, I-port, HDMI, VGA; 12V DC, opt. 9-36V DC.

 Lead time 2-3 days when available

Embedded Box PC for continuous operation with 2x 2.5 GbE, 4x COM, 4x USB, 8-bit DIO

fanless, rugged, support 5G/LTE


  •  Intel® Elkhart Lake SoC:
    Intel® Celeron® J6412 or N6210 embedded CPU

  • 1x DDR4 SO-DIMM, 3200 MHz, up to 16GB

  • 1x M.2 3052 B-Key, with SIM slot, PCIe x1 and USB2.0,
    support 4G LTE, 5G NR Module

  • Intel® Gen. 10 UHD Graphics

  • 1x HDMI 2.0 max resolution 4096x2304@60Hz
    1x VGA max resolution 1920x1200@60Hz

  • 2x Intel® I225V, 10/100/1000Mbps/2.5G,  support WOL

  • 1x 2.5" SATA 3.0

  • 1x mSATA full, support AHCI

  • 8-bit DIO

  • 2x RJ45 2,5 Gb LAN

  • 2x USB 3.1 (Type A)
    2x USB2.0 (Type A)

  • 2x RS232/422/RS485 (DB9 male)
    2x RS232 (DB9 male)

  • 1x SIM slot

  • 1x Audio out

  • 1x I-port reserved interfaces, can support internal 1x USB 2.0 or M.2 3052 and other functional module interfaces

  • LED indicators: 1x Power, 1x HDD, 3x CPU temperature control,
    1x Remote SW, 1x AT/ATX Select SW, 1x Clear CMOS Select SW

  • Windows 10/11, Linux: SUSE, Ubuntu; Wind River

  • Operating Temperature -20 ~ +65 °C

  • 12V DC, opt. OFX-075 wide power input 9-36V DC

  • Aluminium chassis, 155 x 111.8 x 65mm (WxDxH)

  • Fanless Design, rugged

  • Desktop mounting


  • Automated Guided Vehicles (AGV)

  • IoT

  • Machine Vision
