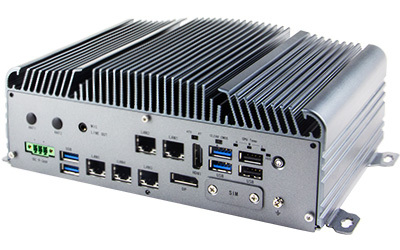

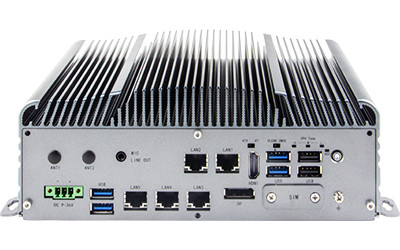

Fanless Industrial Computer KMDA-3230
Fanless Industrial Computer with Intel® Whiskey Lake-U SoC, 5x LAN, 3x RS232, 2x RS485, 8-bit Isolated Digital I/O, HDMI+DP, 4x USB 3.1, 2x USB 2.0, 1x mSATA, 1x 2,5" SATA tray, 1x M.2 2230 E Key, 1x miniPCIe, 1x SIM Slot, 9 -36 V DC Power Input, Aluminium chassis
DRAM (DDR4-SODIMM): 8GB
Lead time 2-3 days when available
Industrial Computer with 5x LAN, 5x COM, 6x USB, 8-bit Iso. DIO
fanless, rugged, powerful
Features
Intel® Whiskey Lake-U 8th Gen. SoC
2x DDR4 2400 MHz SO-DIMM, up to 32GB
HDMI max. resolution 4096x2304@60Hz, DP 1.2 max. resolution 4096x2304@60Hz
5x LAN, 4x USB3.1, 2x USB2.0, 5x COM, 8-bit Iso. Digital I/O
1x M.2 2230 Key E
1x miniPCIe with SIM slot, support 4G/WiFi/BT/GPRS
1x mSATA, 1x 2.5" SATA3.0
Desktop mounting
9~36V DC Wide power supply
Operating Temperature: -20 ~ +70°C with wide operating temperature SSD
Fanless design, rugged
RoHS, FCC and CE certified
Supports Windows 10, Linux: SUSE, Ubuntu, Red Hat Enterprise; Wind River
Applications
Automation
IoT
Machine Vision
CNC control
Motion control
