Fanless Industrial Computer KMDA-5610

Get Quote

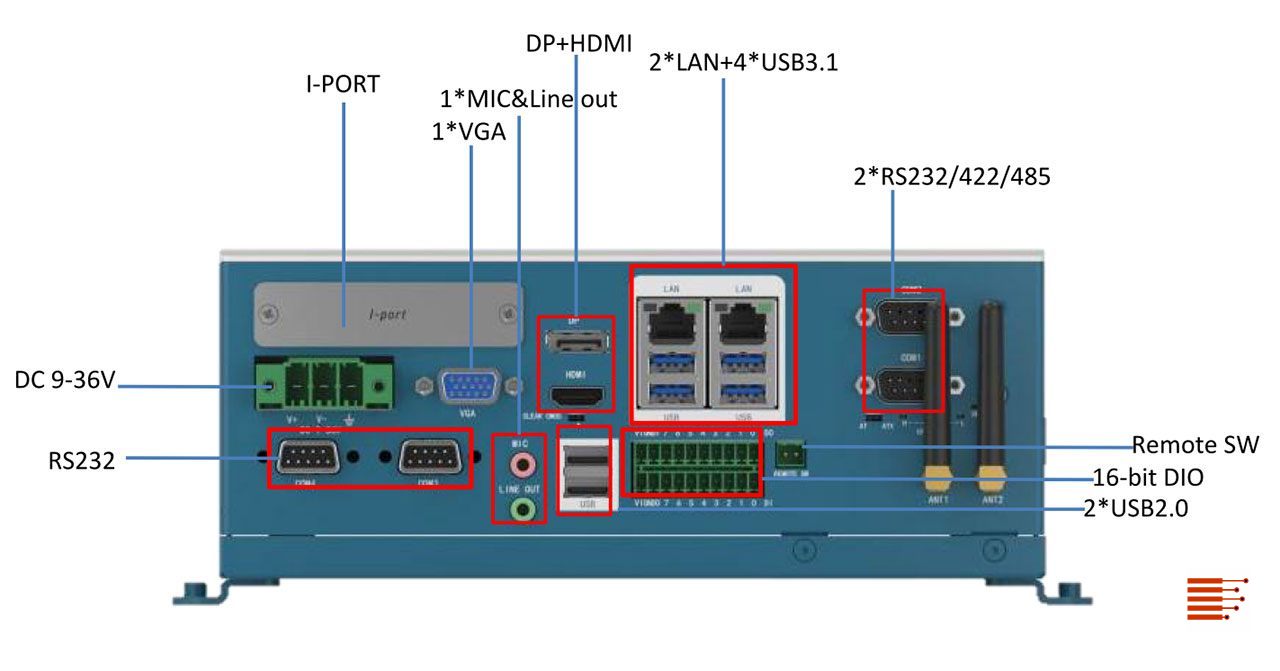

Fanless Embedded Box PC KMDA-5610 with Intel 8th/9th Gen. CPU with 2x LAN, 4x COM, 16-bit iso. DIO, 6x USB, M.2, mSATA, 3x Display ports, SIM slot, support LTE/WiFi/Bluetooth.


 Lead time 2-3 days when available

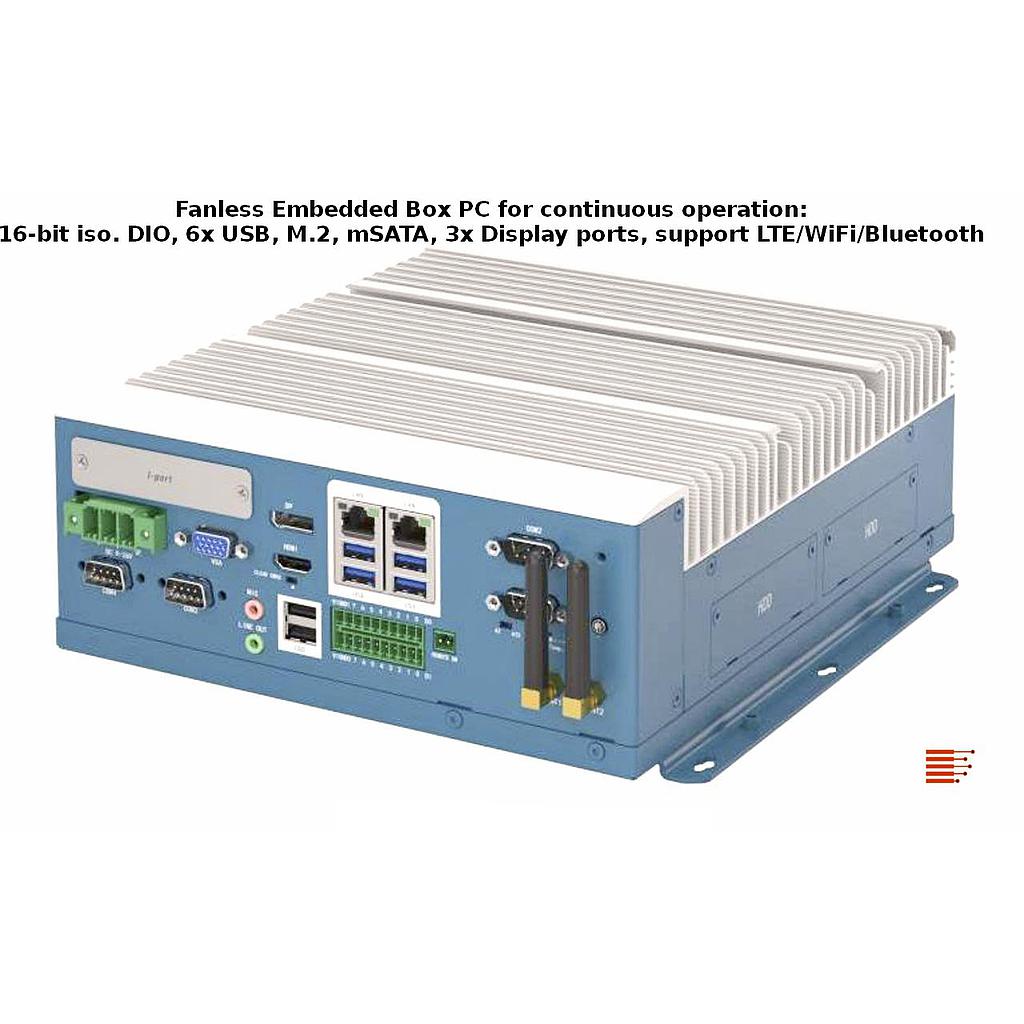

Embedded Box PC for continuous operation with 3x Display port

2x LAN, 4x COM, 16-bit Iso. DIO, 6x USB, M.2, fanless, rugged

Features


  • Intel® 8th/9th Gen. Coffee Lake SoC
  • 2x DDR4 2400/2666MHz SO-DIMM, up to 64GB
  • 1x DP 1.2 max. Auflösung 4096x2304@60Hz
    1x HDMI max.  Auflösung  4096x2304@24Hz
    1x VGA max. Auflösung 1920x1200@60Hz
  • 2x LAN, 4x COM, 16-bit iso. DIO
  • 4x USB 3.1, 2x USB 2.0
  • 1x M.2 2230 Key E, support WiFi 6/BT 5.0
  • 1x mSATA with 1x SIM slot: support 4G LTE/WiFi/BT,
    2x 2.5” SATA 3.0
  • Windows 10  Enterprise and IoT Enterprise (64bit),
    Linux: SUSE, Ubuntu, Red Hat Enterprise 1,2 (Kernel 4.14);
    Wind River VxWorks 7
  • Operating Temperature -20°C ~ +65°C
  • 9~36V DC Wide power input, with short circuit, over voltage and over current protection
  • Aluminum-magnesium chassis
  • Fanless design, rugged
  • Desktop mounting

Applications


  • Industrial Automation
  • IoT
  • AI Edge Computing
  • Small Intelligent Workstations
  • Multimedia Service Systems
  • Machine Vision
