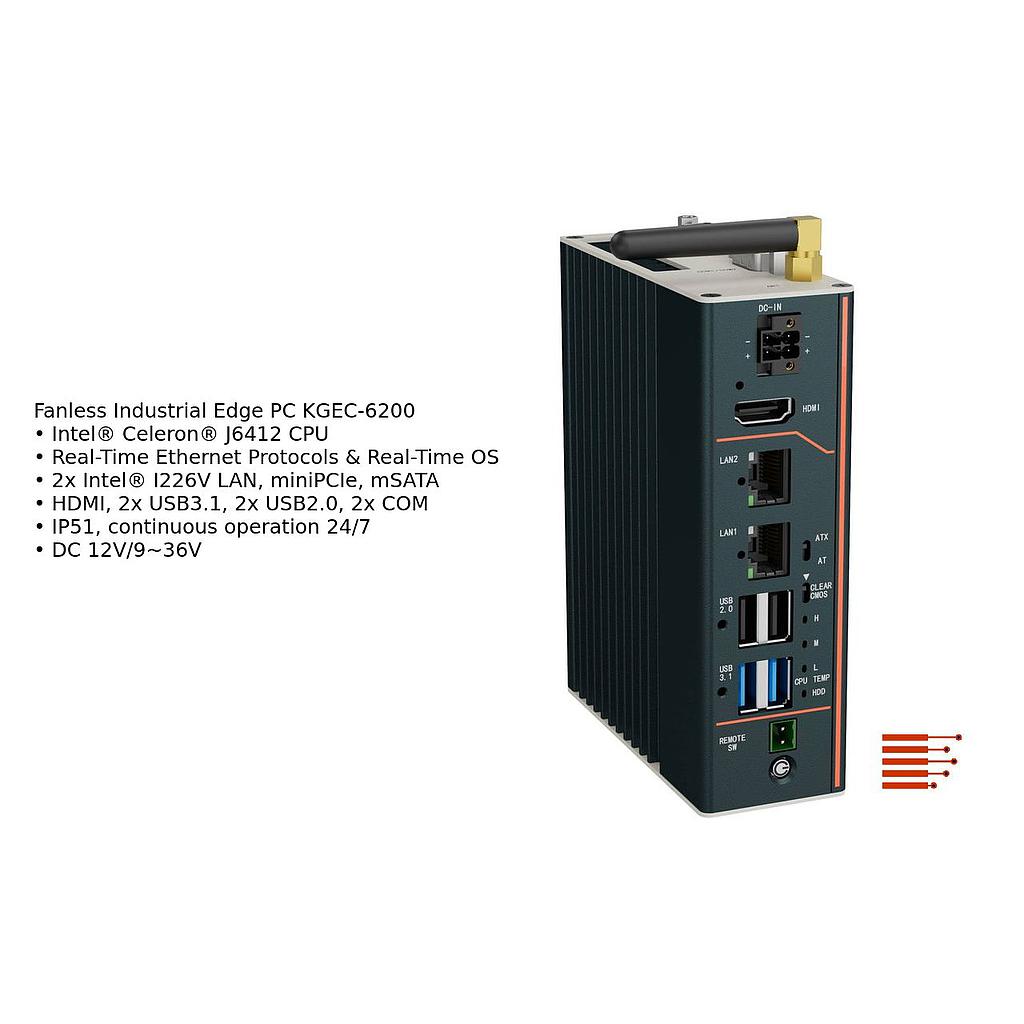

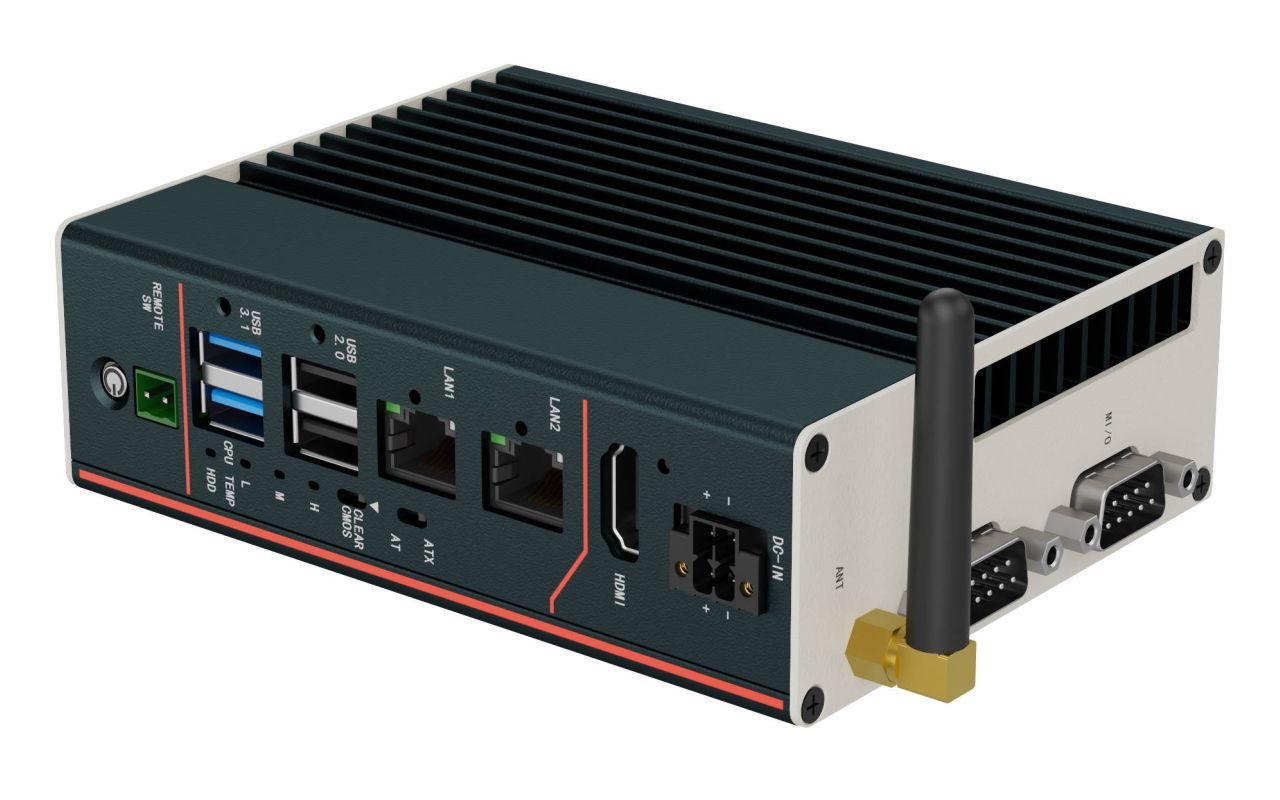

Fanless Industrial Edge PC KGEC-6200
Intel® Celeron® J6412 CPU, 1x SO-DIMM Socket for up to 32 GB DDR4-3200 MHz DRAM, 1x HDMI, 2x LAN, 2x USB3.1, 2x USB2.0, 2x COM, 1x miniPCIe, 1x mSATA. DC 12V, DC 9~36V optional. Real-Time Ethernet Protocols & Real-Time OS.
Lead time 2-3 days when available
Fanless Industrial Edge PC for continuous operation 24/7
Real-time OS, 12V DC: OVP, OCP, SCP; IP51
The fanless Mini PC supports real-time Ethernet Protocols: EtherCAT, PROFIBUS, etc. and real-time operating system: BIOS tuning to adapt to the real-time OS.
There is also support mainstream robot operating systems and third-party controller, development platforms: Windows, Linux, CODESYS.
Features
Intel® Celeron® J6412 CPU
Intel® Gen10 UHD Graphics: resolution up to 4K UHD; support H.256 encoding
2x Intel® I226V LAN
1x DDR4 3200 SO-DIMM, up to 32GB
1x HDMI Display, 4K UHD

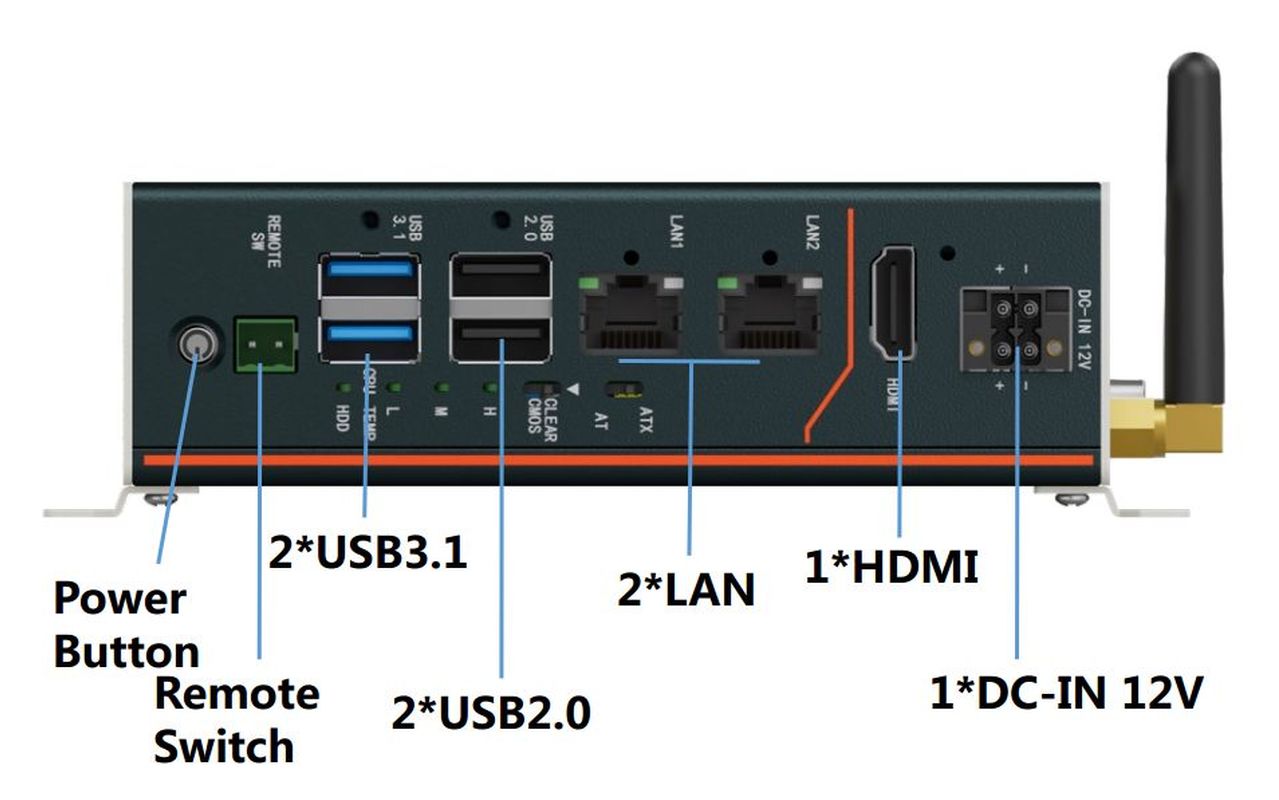

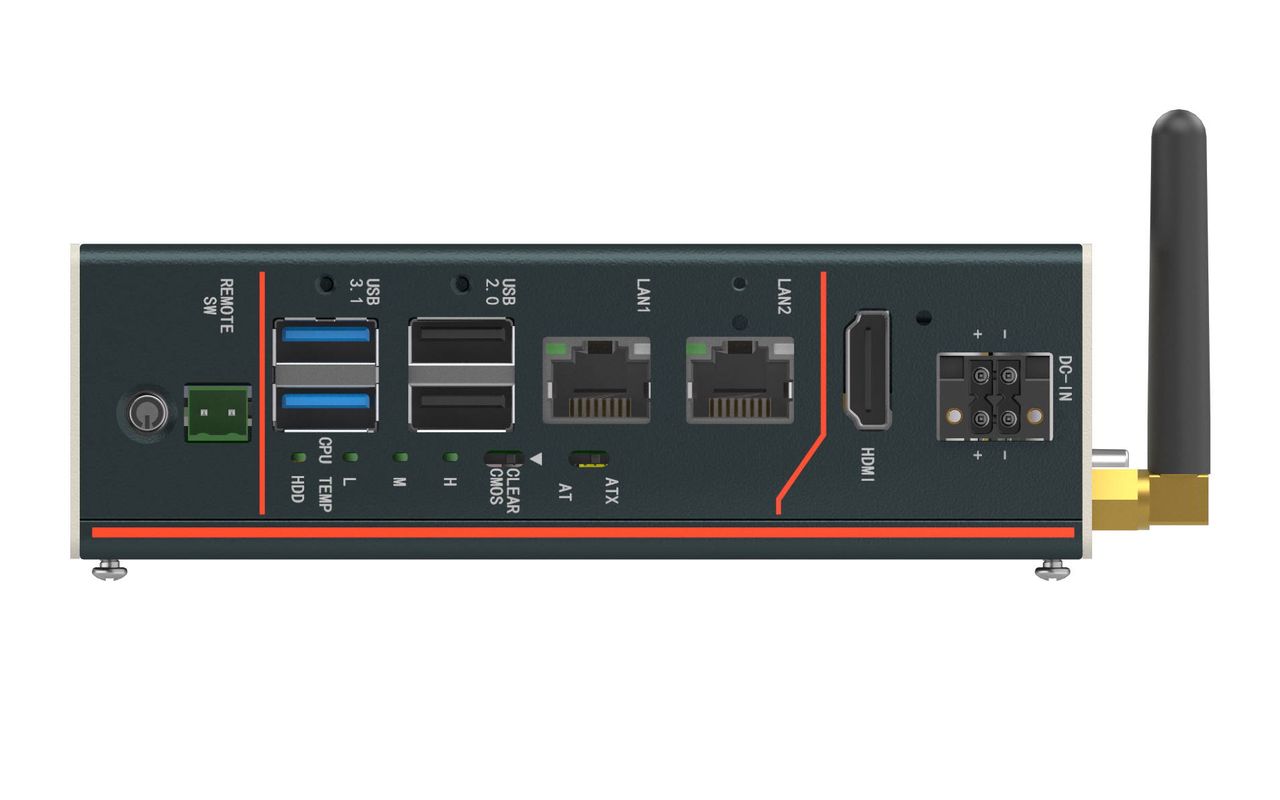

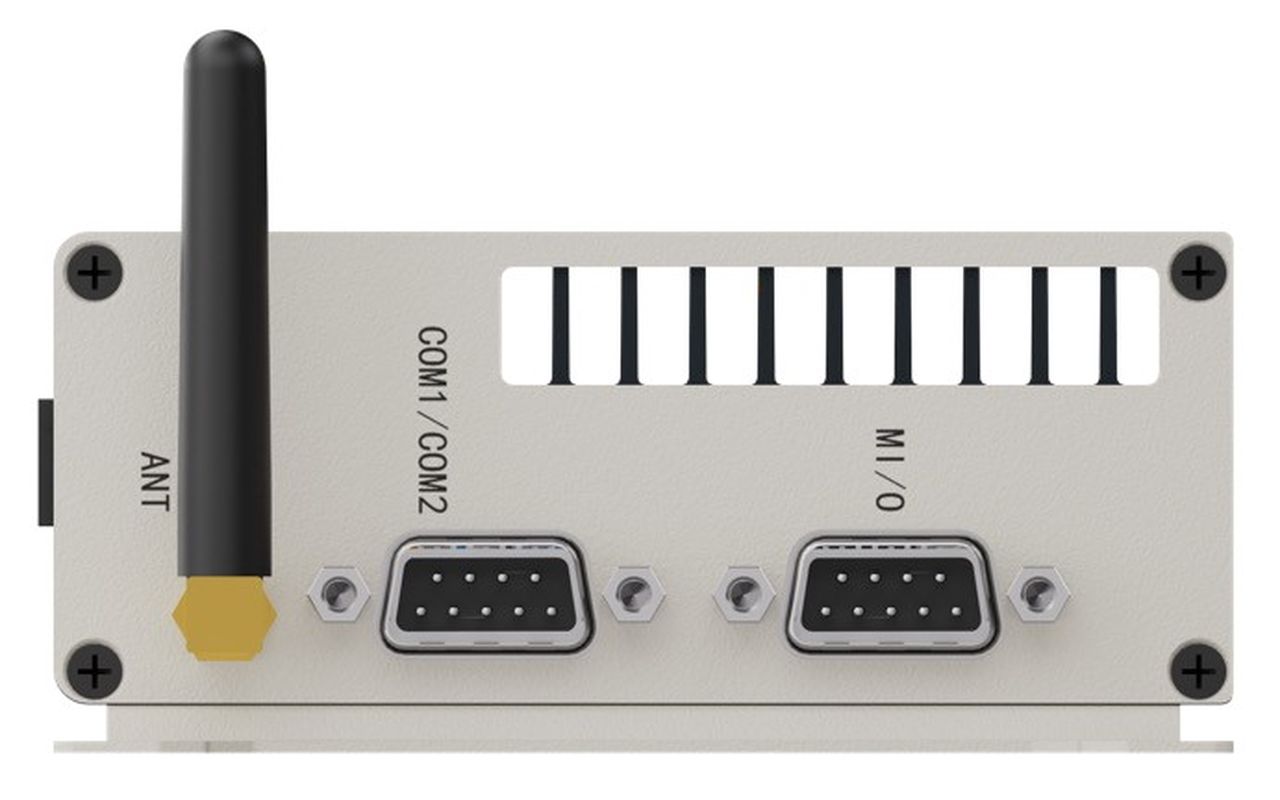

2x USB3.1, 2x USB2.0, 2x COM, 1x MI/O
1x miniPCIe full size (PCIe x1+USB2.0)
1x mSATA full size 6.0Gbps for storage
Flexible installation: wall, DIN-Rail, desktop mounting
Mini size and lightweight: 130x100x40mm, 750g
Fanless cooling design, IP51 protection
DC 12V power input, optional 9~36V wide power input, support OVP, OCP and SCP: overvoltage, overcurrent, short circuit protection
Operating temperature: -20°C~60°C
Application
Unmanned vehicles
Fire, security drones
Machine Tool Motion Controller
Industrial Multi-Axis Robotic
