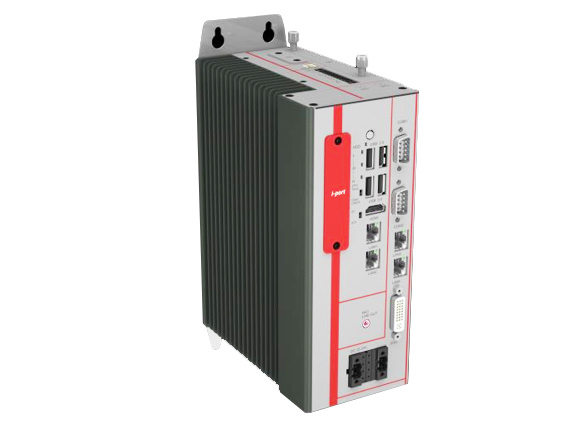

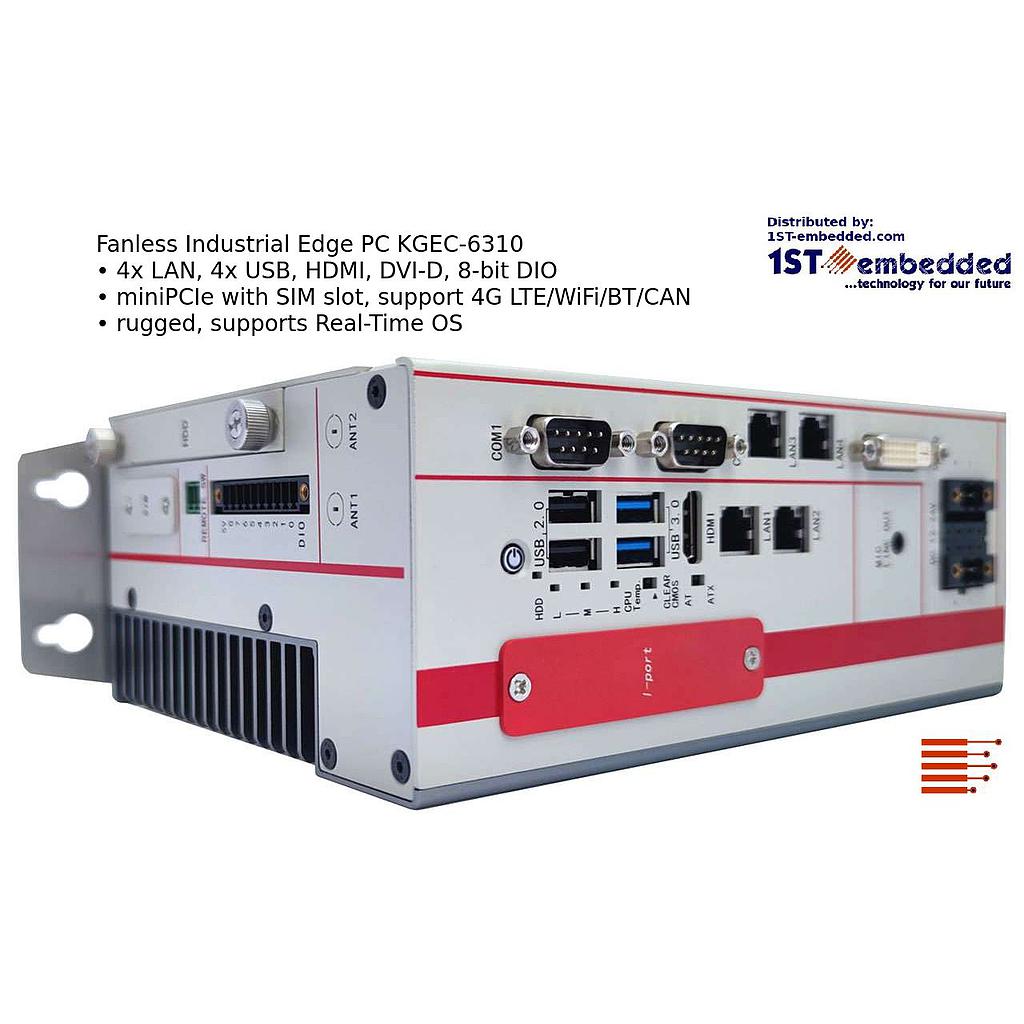

Fanless Industrial Edge PC KGEC-6310


Fanless Industrial Edge Computer with Intel® Whiskey Lake-U 8th Gen. SoC, up to 32 GB DDR4 RAM, 4x GbE LAN-ports, 2x USB3.1, 2x USB2.0, HDMI, DVI-D, 2x RS-232/422/485, 8-bit DIO, 1x miniPCIe with SIM slot support for 4G/WiFi/BT/CAN modules, 1x M.2 key E for WiFi / BT, 1x mSATA, 1x 2,5" SATA3.0 HDD/SSD bay, DC 12-24V input, supports INtime, EC-Win, RTX-2014/2016, Ubuntu Preempt-RT, as well as Windows 10, Linux, TSN
Operating Temperature: -20 ~ +60°C with wide operating temperature SSD
Dimensions: 202 x 151 x 81 mm
DIN-Rail or Wall Mounting



 Lead time 2-3 days when available

Features



  • Intel® Whiskey Lake-U 8th Gen. SoC

  • 2x DDR4 2400 MHz SO-DIMM, up to 32GB

  • HDMI max. resolution 4096x2304@60Hz,
    DVI-D max. resolution 2560x1600@60Hz

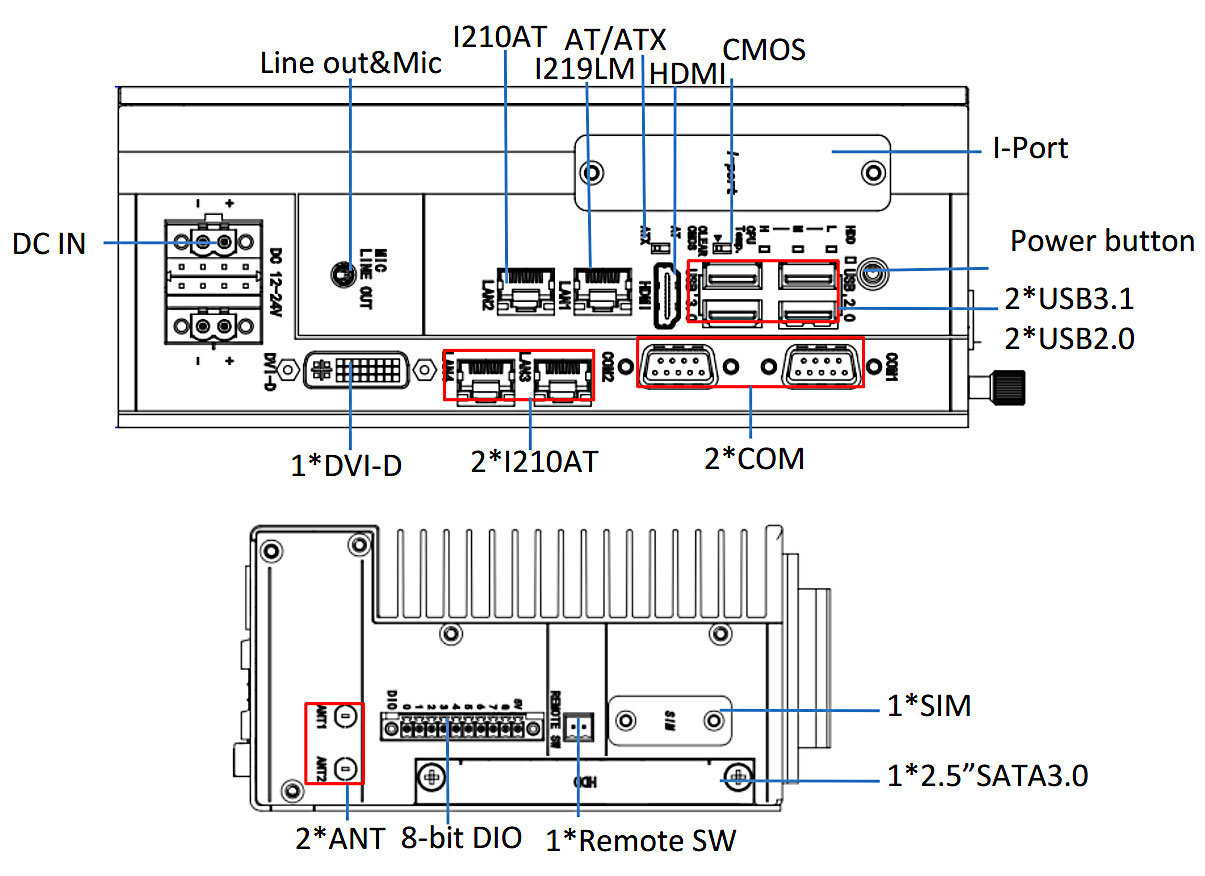

  • 4x LAN, 2x USB3.1, 2x USB2.0, 2x COM, 8-bit Digital I/O

  • 1x M.2 2230 Key E

  • 1x miniPCIe with SIM Slot, support 4G LTE/WiFi/BT/CAN

  • 1x mSATA, 1x 2.5" SATA3.0 HDD / SSD

  • Optional 1x LPT, USB2.0, 16-bit DIO or miniPCIe and
    M.2 I/O Ports

  • DIN-Rail mounting, Wall mounting

  • 12~24V DC Wide power supply

  • Operating Temperature: -20 ~ +60°C
    with wide operating temperature SSD

  • RoHS-, FCC- and CE certified

  • Fanless design, rugged

  • Supports Real-time OS INtime, EC-Win, RTX-2014/2016, Ubuntu Preempt-RT

  • Windows 10, Linux: Fedora, Ubuntu

Applications



  • Automation

  • Machine Vision

  • CNC control

  • Motion control
