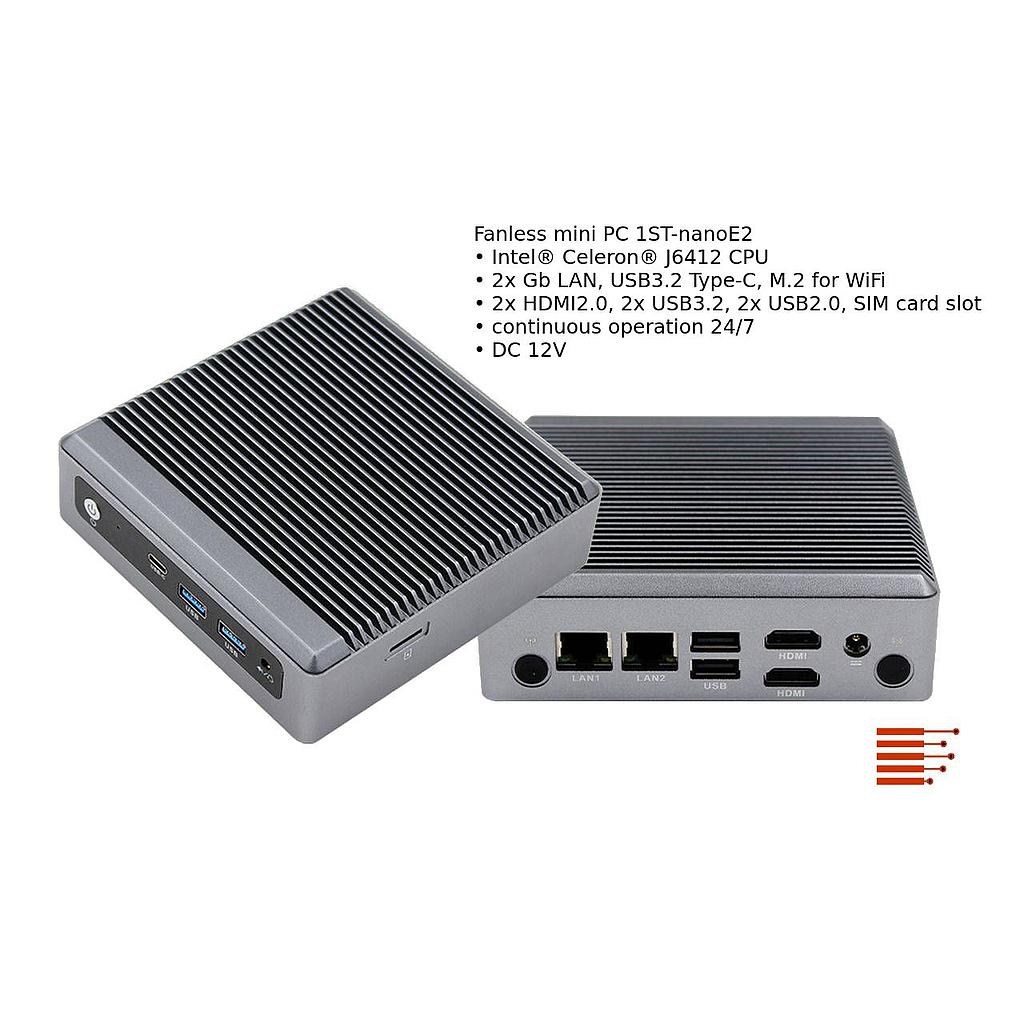

Fanless mini PC 1ST-nanoE2
Fanless mini PC with Intell® Elkhart Lake Celeron® J6412 quad-core CPU, 2,0 - 2,6 GHz with 10W TDP, 2x SO-DIMM DDR4-3200 slots up to max 32GB RAM, 2x Gb LAN (RTL8111H), 2x HDMI2.0, 2x USB 2.0, 2x USB 3.2 Gen 2, 1x USB Type-C (USB3.2 Gen 2), 1x M.2 Key B Slot for 2242/2280 SATA-SSD or 4G Module, optional 1x SATA, 1x M.2 Key E for 2230 WiFi & BT, mikro SIM slot, 12V DC Power Supply, Dimension: 127 x 127 x 43,5 mm. Operating Temperature -20°C ~ +60°C, compatibel with Windows 10/11 64 bit, Linux 64 bit, 24/7.
Lead time 2-3 days when available
Fanless mini PC for continuous operation 24/7
2x HDMI, 2x LAN, 4x USB, USB3.2 Type-C
Depending on the configuration, the system has 1x M.2 for 2242/2280 SSD or 4G moduls (SATA optional), two SO-DIMM slots up to 32GB DDR4 RAM.
One M2 slot for a WiFi, Bluetooth module, one SIM card slot, 2 antenna connectors for WiFi / 4G are on board. Dual displays can be controlled independently via two HDMI 2.0.
The Rich I/O ports: 2x USB 2.0, 2x USB 3.2 Gen 2, 1x USB Type-C, 2x GbE ports make the industrial computer lucrative for various applications in Enterprise IT and retail.
The silent mini PC is designed for the extended temperature range -20° C ~ 60° C.
Features
Intel® Celeron® J6412 CPU
Intel® Gen10 UHD Graphics
2x Gb LAN
2x SO-DIMM DDR4 3200MHz slot, up to 32GB
2x HDMI Display, max resolution 4K UHD
1x M.2 2242/2280 SSD or 4G, SATA optional, 1x M.2 2230 for WiFi/BT
2x USB3.2, 2x USB2.0, 1x USB3.2 Type-C
1x SIM card slot
2x antenna connectors for WiFi / 4G
Flexible Installation: VESA, desktop mount
Mini size: 127x127x43,5mm
Fanless cooling design
DC 12V power input
Operating temperature: -20°C~60°C
Supports Windows 10/11 64bit, Linux 64bit
Application
Retail: Point of Sale, ATM, Kiosks, Vending Machines, Digital Signage
Enterprise IT: Smart Office, Multimedia applications
