Fanless mini PC 1ST-nanoE4
Fanless mini PC with Intel® Elkhart Lake Celeron® J6412 quad-core CPU, 2,0 - 2,6 GHz with 10W TDP, SO-DIMM DDR4-3200 slot up to max 32GB RAM, 4x 2,5 GbE (Intel® i225/i226), 2x HDMI 2.0, COM, 2x USB 2.0, 2x USB 3.2, M.2 Key B Slot for 2242/2280 SATA-SSD or 4G Module, optional 2,5" SATA, M.2 2230 Key E for WiFi & BT, mikro SIM slot, 12V DC Power Supply, Dimension: 127 x 127 x 43,5 mm. Operating Temperature -20°C ~ +60°C, compatibel with Windows 11 64 bit, Linux 64 bit, 24/7. VESA, desktop mount.
Lead time 2-3 days when available
Fanless mini PC for continuous operation 24/7

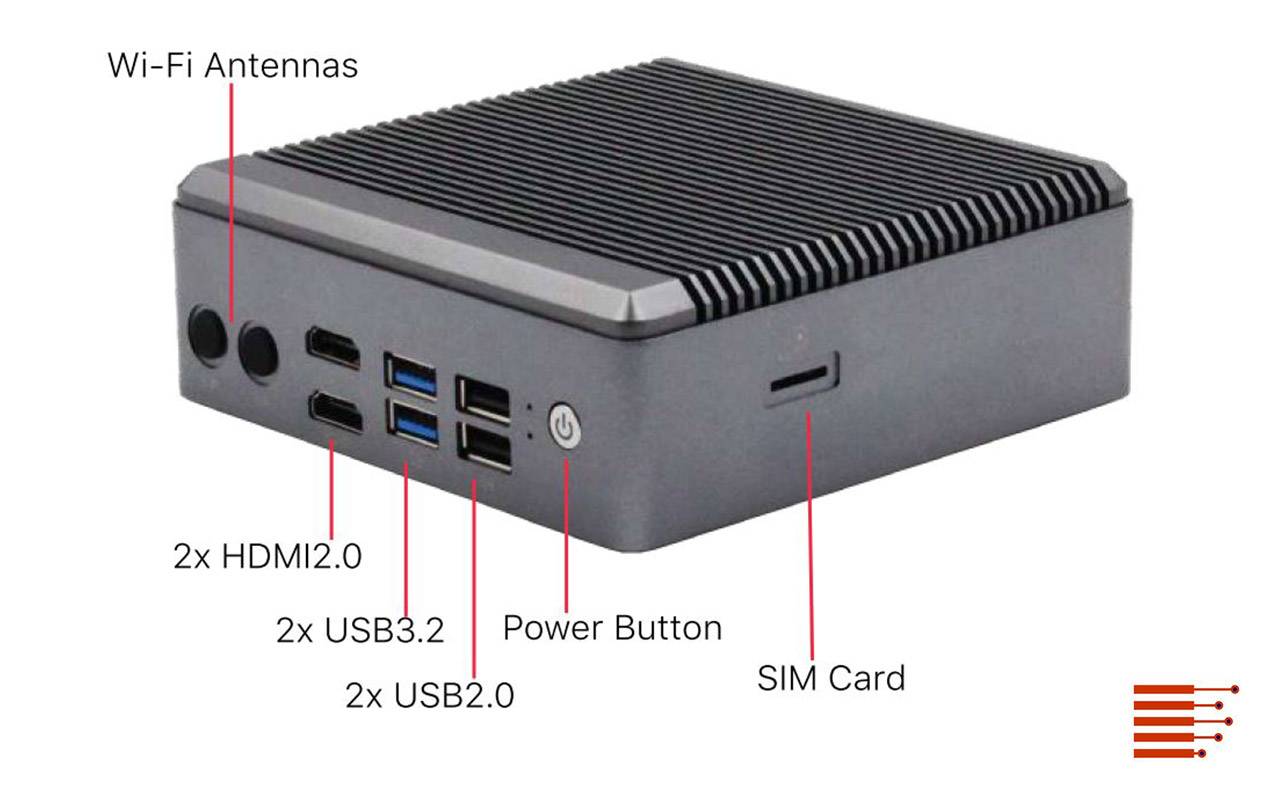

4x 2,5 GbE, 4x USB, 2x HDMI, SIM slot
The powerful compact box PC is powered by an Intel® Celeron® J6412 quad-core processor with a Intel® Gen10 UHD Graphics.
Depending on the configuration, the system has M.2 for 2242/2280 SSD or 4G moduls, one SO-DIMM slot up to 32GB DDR4 RAM, optional 2,5" SATA storage.
One M2 slot for a WiFi, Bluetooth module, one SIM card slot, 2 antenna connectors for WiFi / 4G are on board. Dual displays can be controlled independently via two HDMI 2.0.
The Rich I/O ports: 2x USB 2.0, 2x USB 3.2 Gen 2, 4x 2,5 GbE ports, 1x RS232 make the mini Router lucrative as a Hardware Firewall, VPN Router, etc.
The silent mini PC is designed for the extended temperature range -20° C ~ 60° C and for VESA mounting.
Features
Intel® Celeron® J6412 quad-core CPU
Intel® Gen10 UHD Graphics
4x Intel® i225/i226 LAN, 10/100/1000/2500 Mbps
SO-DIMM DDR4 3200MHz Slot, up to 32GB
2x HDMI Display, max resolution 4K UHD
M.2 2242/2280 SSD or 4G, 2,5" SATA optional
2x USB3.2, 2x USB2.0, COM
1x SIM card slot, M.2 2230 for WiFi / BT
2x antenna connectors for WiFi / 4G
Flexible installation: VESA, desktop mount
Mini size: 127x127x43,5 mm
Fanless cooling design
DC 12V power input
Operating temperature: -20°C~60°C
Supports Windows 11 64bit, Linux 64bit
Applications
IT and IoT Security
Hardware Firewall
Network Access Control (NAC)
Virtual Private Network (VPN)
Intrusion Detection Systems (IDS)
Intrusion Prevention Systems (IPS)
Content Filtering Unified Threat Management (UTM)
