Industrial PC KMDA-5921-S002 with Intel® 8th/ 9th Gen. Coffee Lake LGA1151 CPU, Intel ® Q370 PCH, TPM2.0 module, 3xLAN, 16-bit isolated Digital-IO, 1x VGA, 2x DP 1.2, 2x PCIe x16 (x8 signal) and 2x PCIe x4 Expansion slots or 1x PCIe x16, 1x PCIe x4, 2x 32-bit PCI, 3x M.2, one of them with SIM-Slot for 5G, 1x miniPCIe with SIM-Slot for 4G, 2x SATA, 9 - 36V DC, fanless CPU design, Aluminium chassis

 Lead time 2-3 days when available

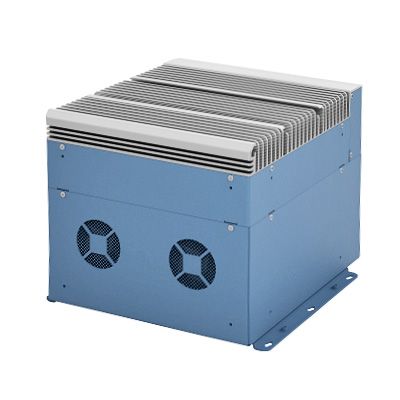

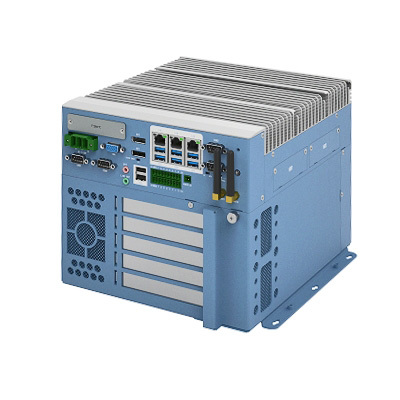

Rugged Industrial PC with 4x PCIe expansion slots

high performance, reliable in harsh environments, flexible expandable

The Embedded Box-PC KMDA-5921-S002 of JHC Technology Development Co., Ltd is a high performance industrial Computer.
It is powered by Intel® 8th/9th Gen. Coffee Lake CPU and has 4 DDR4 2400/2666MHz SODIMM slots for up to 128GB RAM.
Up to three unindependent displays can be driven: via 2x DP1.2 and VGA.

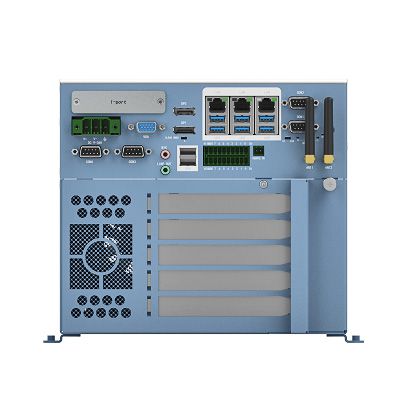

The system provides multiple interfaces and expansion slots:
3x GbE LAN, 6x USB3.1, 2x USB 2.0, 1x miniPCIe with SIM card slot supports 4G or WiFi/Bluetooth, 2x 2.5" SATA 3.0 HDD / SSD, 1x M.2 2280 Key M, PCIe x4 Gen3.0, support NVME SSD, a 9-36V DC wide power input and a wide operating temperature range from -20°C up to +60°C.

The Industrial Computer has an 4 PCIe expansion slots for use of easy to disassemble and install PCIe expansion cards.
This System works with Windows 10 Enterprise und IoT Enterprise, Linux: SUSE, Ubuntu, Red Hat Enterprise 1.2; Wind River, VxWorks 7.
The CPU select for KMDA-5921-S002


  • Intel® Core™ i3/i5/i7, Pentium®, Celeron® LGA1151 CPU with passive cooling

  • 4x DDR4 2400/2666MHz SO-DIMM, up to 128GB

  • 1x VGA, 2x DP for dual 4K displays

  • 3x LAN, 4x COM

  • 16-bit Iso. DIO: 8-bit Iso. DI and 8-bit Iso. DO

  • 6x USB 3.1, 2x USB 2.0

  • 1x M.2 3052 Key B with SIM slot and support for 5G, 1x M.2 2230 Key E, supports WiFi6/Bluetooth 5.0

  • 1x miniPCIe with SIM card slot, support for 4G/WiFi/Bluetooth

  • The flexible configuration with expansion slots 2x PCIe x8 + 2x PCIe x4 or 1x PCIe x16 + 1x PCIe x4 + 2x 32-bit PCI in combination with case fans can be used for powerful GPU cards or AI modules (max 1x 150W GPU and 2x 75W AI modules)

  • 2x SATA3.0, 1x M.2 2280 Key M for NVME SSD

  • 9~36V DC, Wide power input

  • Aluminum chassis

  • Watchdog, Temperature control

  • Desktop mounting

  • RoHS, FCC and CE certified

  • OS Support: Windows 10 Enterprise & IoT Enterprise, Linux: SUSE, Ubuntu, Red Hat Enterprise 1.2; Wind River, VxWorks 7


  • Automation

  • AI Edge Computing

  • Machine vision and others
