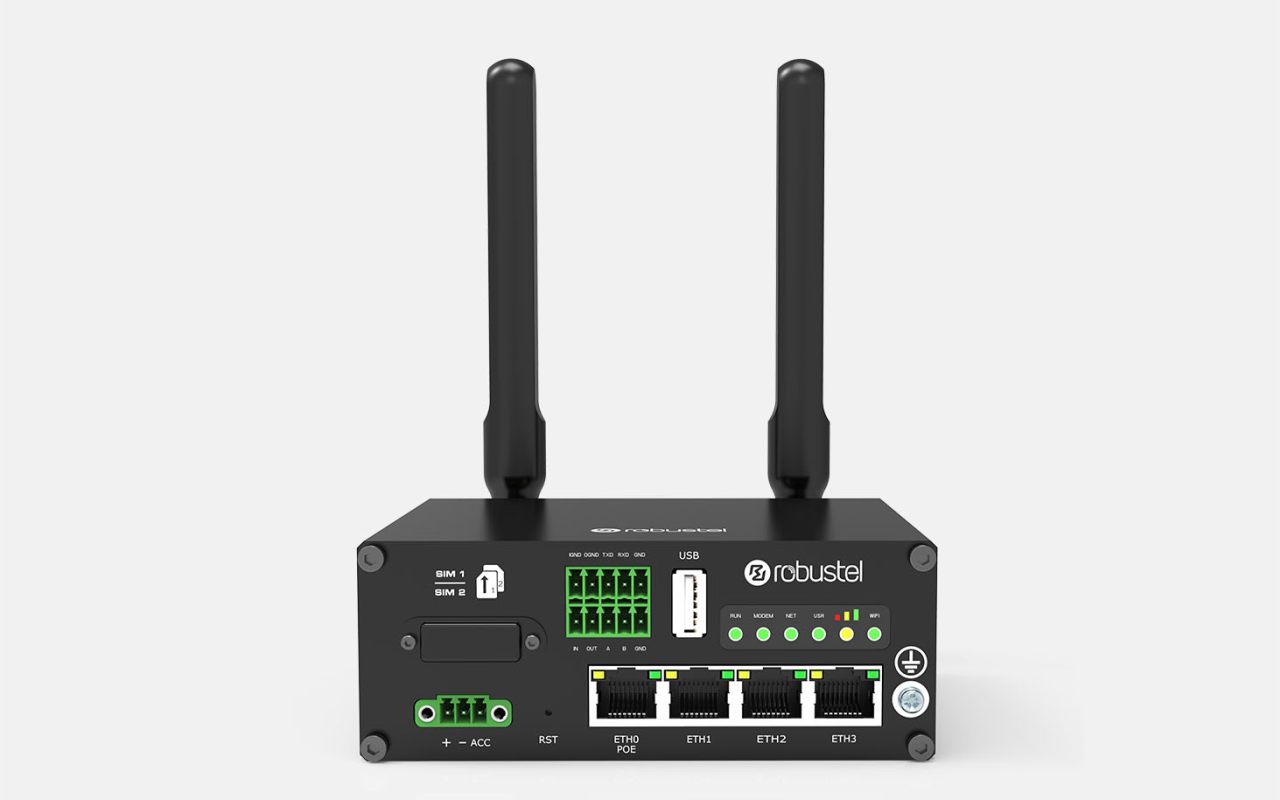

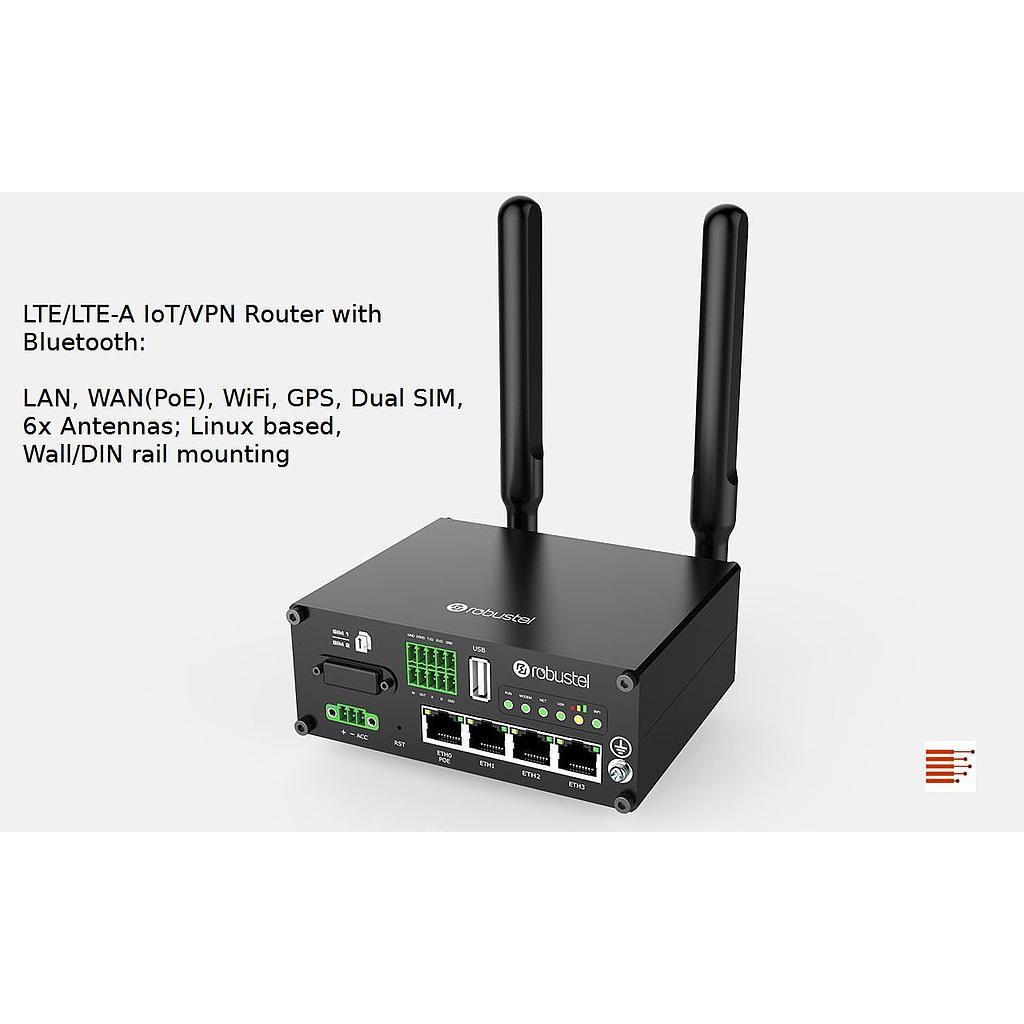

LTE Industrial Cellular Router R2110


LTE / LTE-A Industrial Cellular Router with LTE Cat 6, Bluetooth 5.0 and WiFi 802.11ac, 4x GB Ethernet, RS232, RS485, 1x Digital In, 1x Digital Out, Dual-SIM, Micro-SD-Interface, USB2.0 Host, VPN Tunnel: Ipsec/OpenVPN/GRE; WiFi-Security: Open, WPA, WPA2, WEP; Desktop-, Wall mounting or DIN rail mounting; Remote Management: Web, CLI, SMS, RCMS. Fully programmable Linux environment. Variant with GPS and ACC, optional available variant with PoE-PD without GPS and without ACC.



 Lead time 2-3 days when available

Industrial LTE IoT/VPN Router with Bluetooth for DIN rail / wall mounting

4x GbE, WAN, GPS, WiFi, Dual SIM, rugged, IP30

Features

  • 3x LAN, 10/100/1000 Mbps

  • 1x WAN (PoE-PD optional), 10/100/1000 Mbps

  • WiFi: IEEE 802.11b/g/n/ac,
    Access Point and Wireless Client mode

  • 2x mini SIM (2FF)

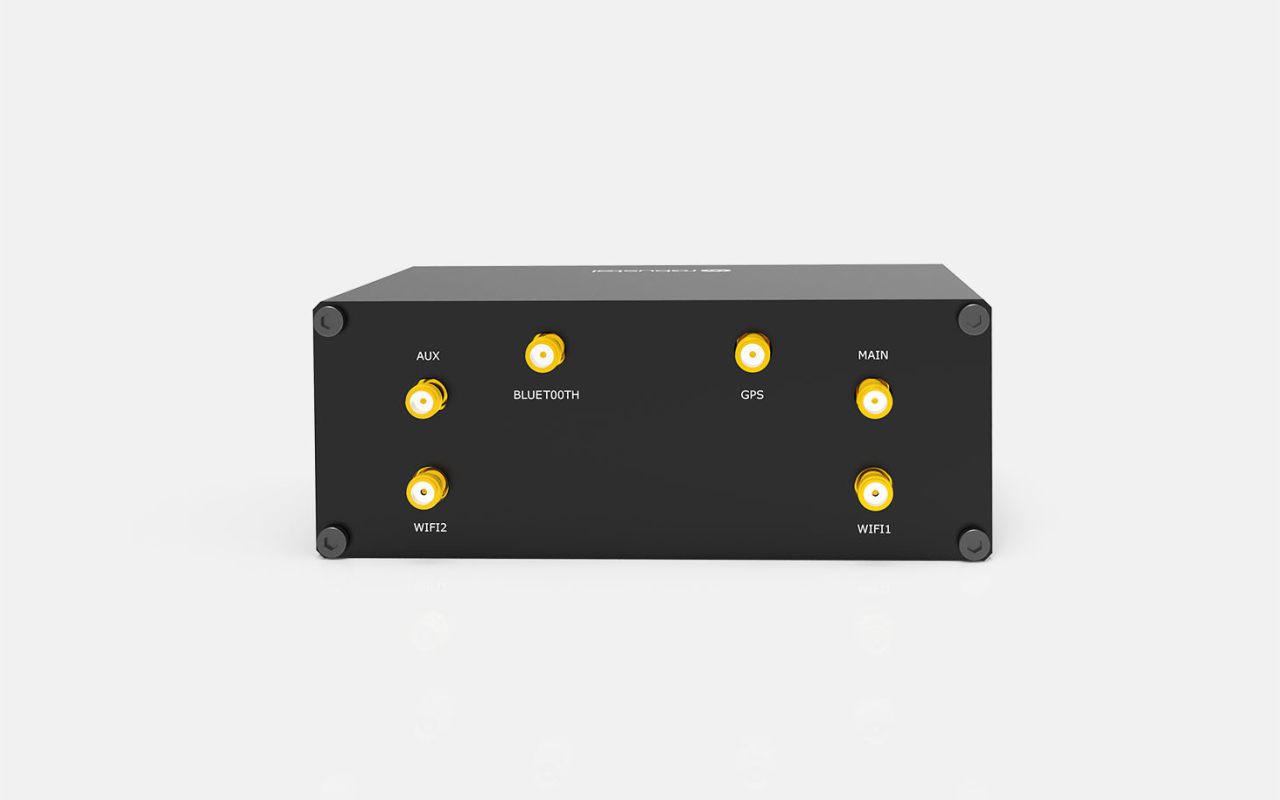

  • Antennas: 2x LTE: MAIN + AUX; 2x WiFi, 1x Bluetooth, 1x GPS

  • WiFi Data speed: 5G: up to 867Mbps;
    2.4G: up to 300 Mbps

  • Bluetooth: BLE 5.0 compatible with BLE 4.2, BLE 4.0

  • RS232, RS485 - (3-wire) for serial data transfer

  • 1x DI, 1 x DO

  • 1x Micro SD interface

  • 1x USB 2.0

  • LED indicators: 1x RUN, 1x Modem, 1x USR, 1x RSSI,
    1x NET, 1x WiFi

  • Serial Port: Transparent, TCP Client/Server, UDP,
    Modbus RTU to TCP

  • Supports cold backup, warm backup and load balancing

  • WiFi Security: Open, WPA, WPA2, WEP

  • VPN tunnel: Ipsec, OpenVPN, GRE

  • Firewall: DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

  • GNSS Technology: GPS, QZSS, GLONASS, Galileo, BeiDou

  • Remote Management: Web, CLI, SMS

  • Free cloud management plattform – RCMS

  • Fully programmable Linux environment

  • Watchdog, Timer

  • Rugged industrial design, protection IP30

  • Desktop, wall mounting or DIN rail mounting

  • Operating temperature range: normal -20°C ~ +55°C, extended -25°C ~ +70°C

  • Dimensions: 125 x 100 x 48 mm

  • 9 ~ 36 VDC (PoE-PD), 10 ~ 30 VDC (ACC)

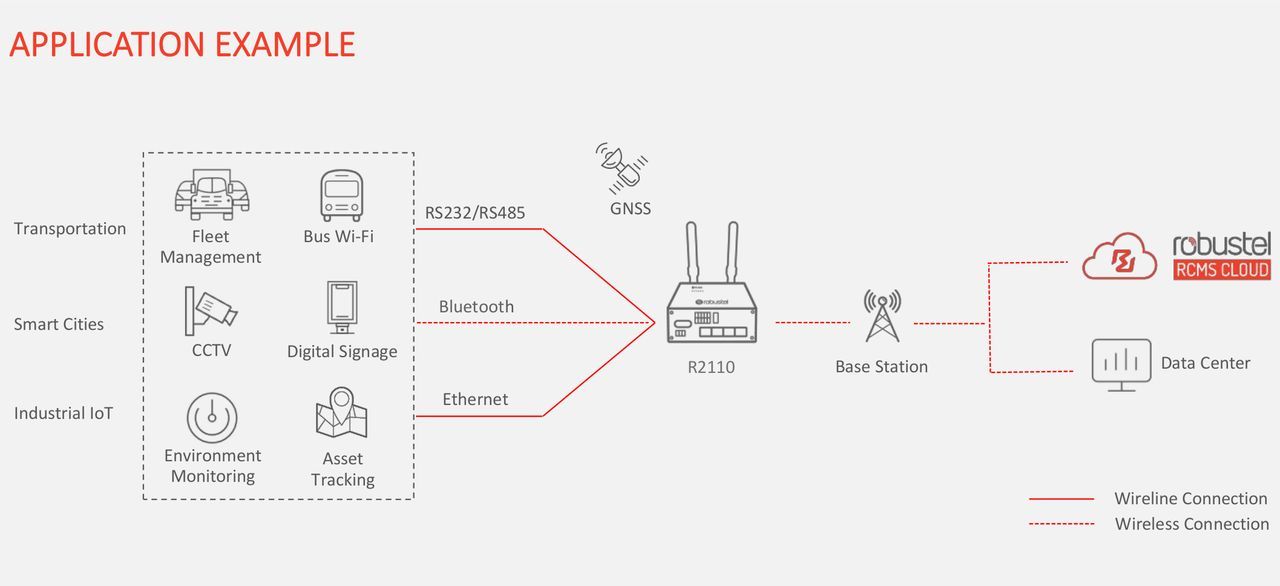

Applications

  • Transportation: Fleet Management, Bus WiFi

  • Industrial IoT: Environment Monitoring, Asset Tracking,
    Machinery Remote Monitoring

  • Smart City: Digital Signage, CCTV, Traffic Control, Lighting Management, Disaster Monitoring,
    Independent Living Management
