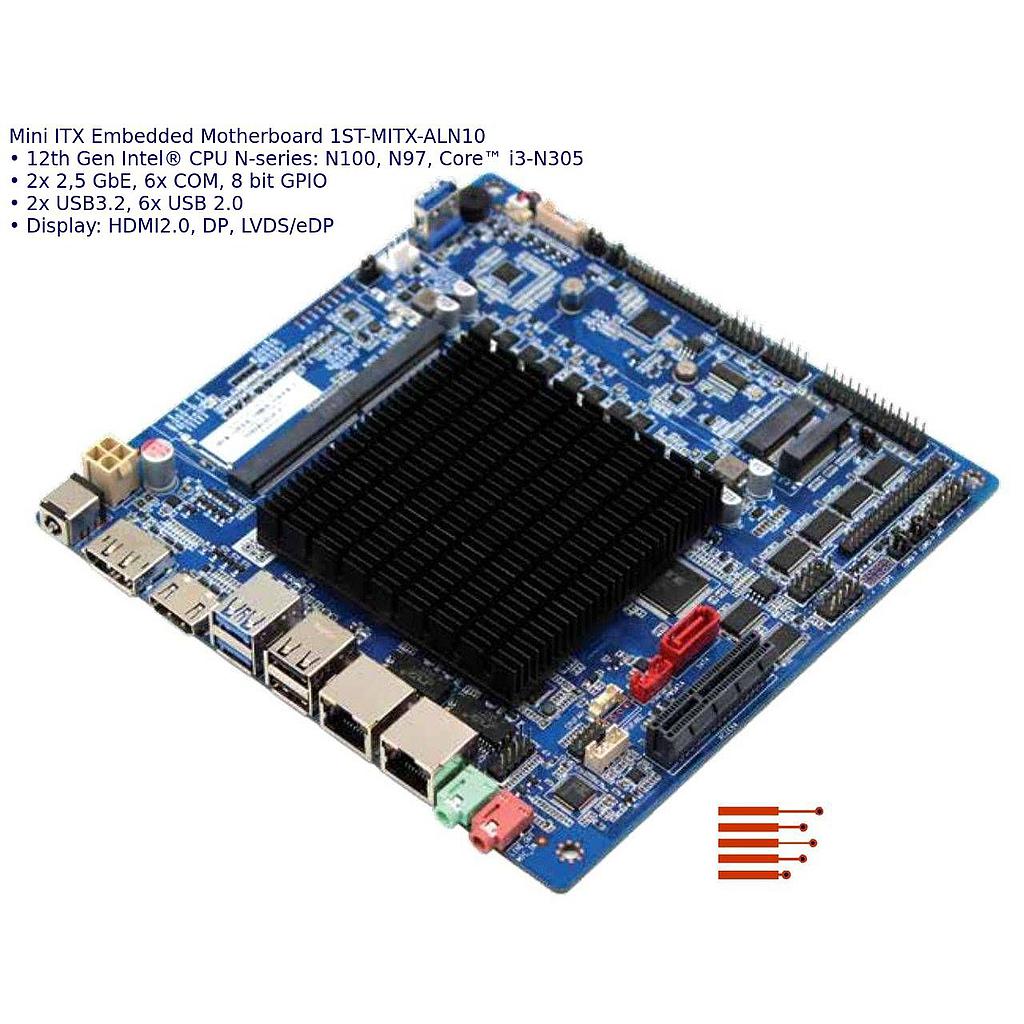

Mini ITX Embedded Motherboard 1ST-MITX-ALN10
Thin Mini-ITX embedded Motherboard with 12th Gen. Intel® Processor N100 (Alder Lake-N), DDR4-SO-DIMM-Socket for up to 32 GB RAM, HDMI, DP, LVDS, 2x2,5 GbE, 6x COM, 2x USB3.2, 7x USB2.0, 1x SATA, M.2 Socket for SATA-SSD, M.2 Socket for WiFi, Mic_In + Line_Out
Lead time 2-3 days when available
Mini ITX Embedded Motherboard: 12th Gen Intel® CPU N-series
HDMI, DP, LVDS/eDP, 2x 2.5GbE, 6x COM, 6x USB
The board supports up to 8 cores and 8 threads, faster graphics performance with low power consumption.
Its small form factor design is great for IoT deployments that require powerful performance, high-speed connectivity and enhanced graphics density.
It carries 1x DDR4 SO-DIMM slot for up to 32GB.

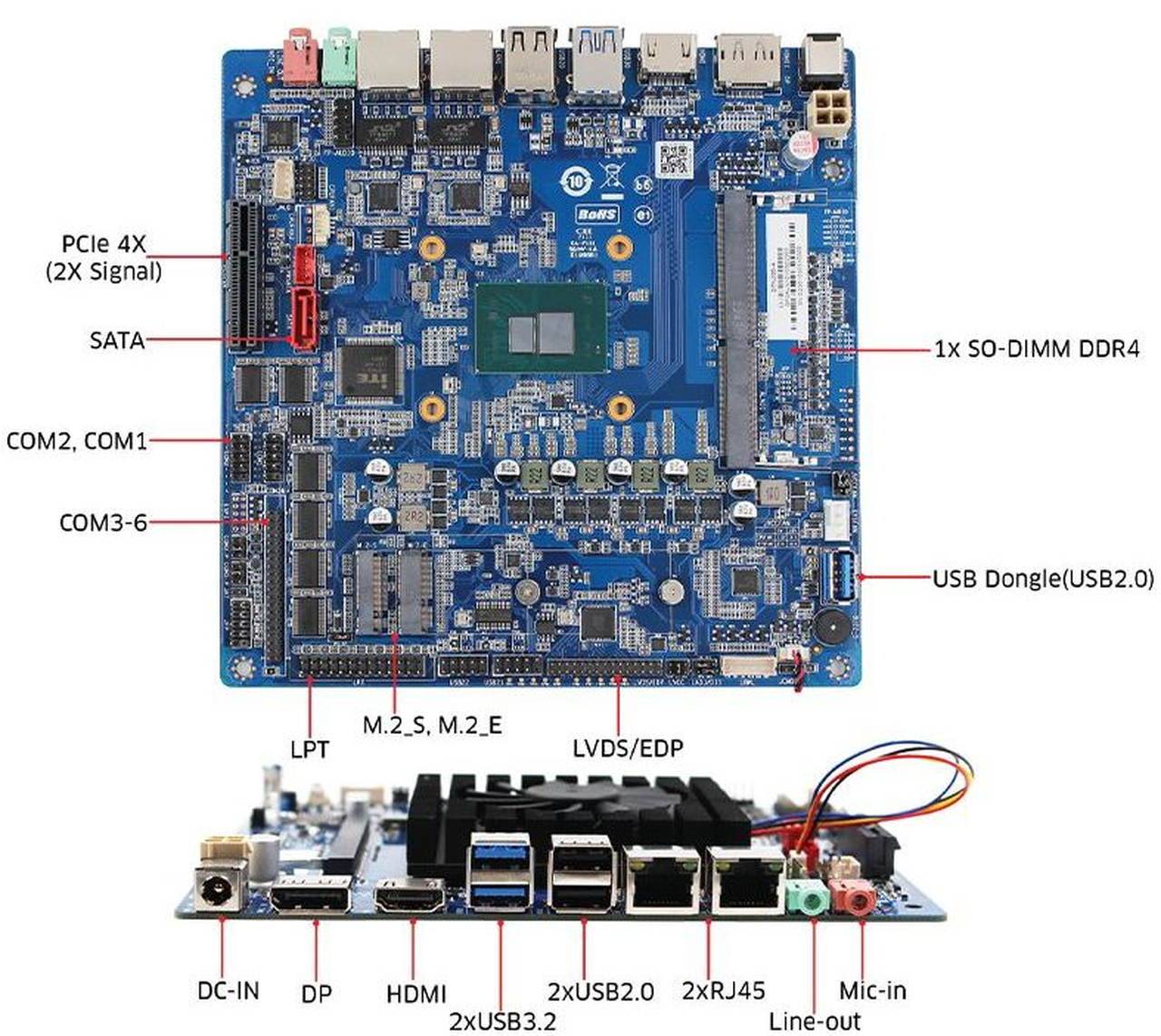

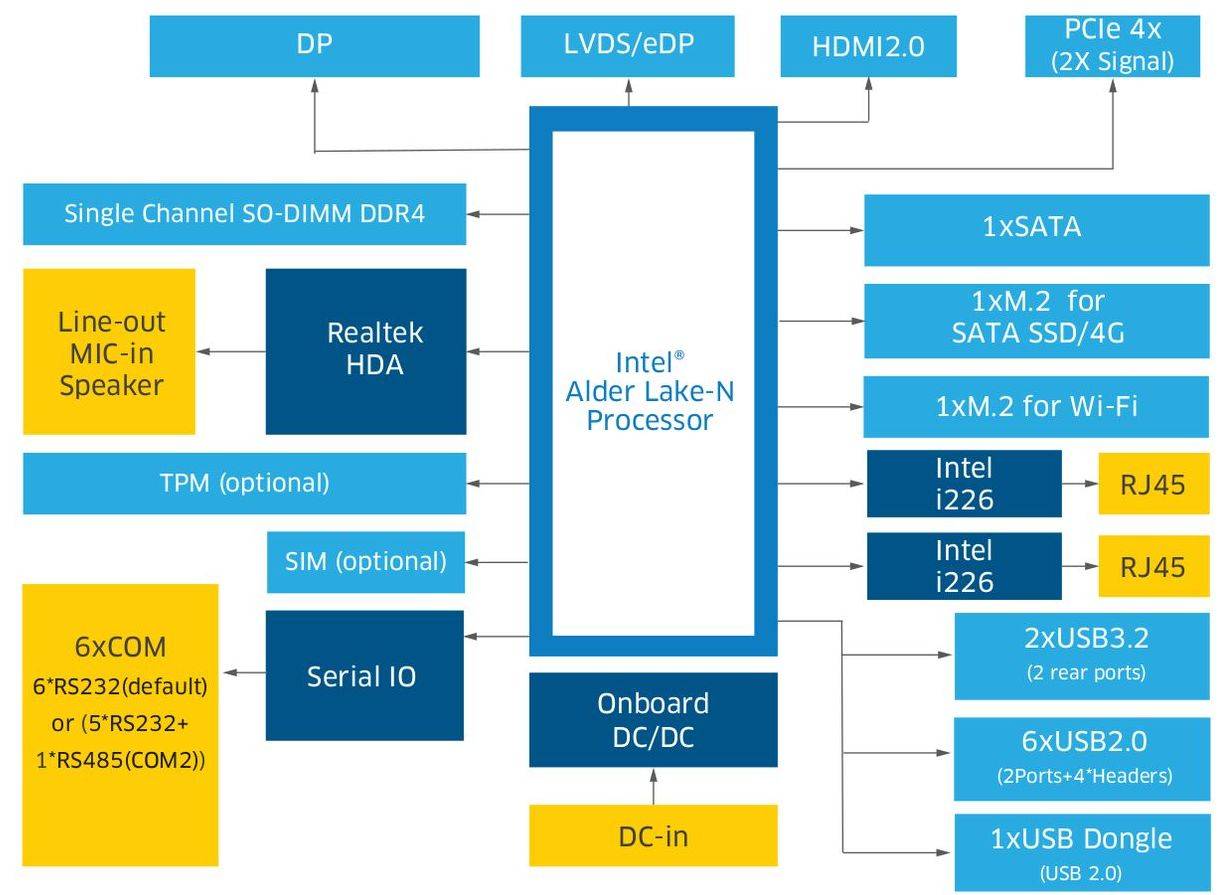

Features
12th Gen Intel® CPU N-series: N100, N97, Core™ i3-N305
1x DDR4 SO-DIMM slot up to 32GB
GPU: Intel® UHD Graphics depends on CPU
2x 2,5 GbE Intel® 226, 6x COM, 8 bit GPIO
1x M.2 for SATA SSD/4G, 1x SATA
2x USB3.2, 6x USB 2.0
1x M.2 for WiFi, 1x PCIe x4
Display: HDMI2.0, DP, LVDS/eDP
12V/19V DC-IN
Operating Temperature: -20°C ~ 60°C
Supports Windows 10/11 64bit, Linux 64bit
Applications
Industry 4.0, IoT: Monitoring and Control, Control and Testing, Security and Surveillance Systems, Energy Sector
IInteractive Digital Signage: Split Display, Billboard, Scoreboard
Other Applications: POS/POI Systems, Smart School, High-End Gaming, Thin Clients
