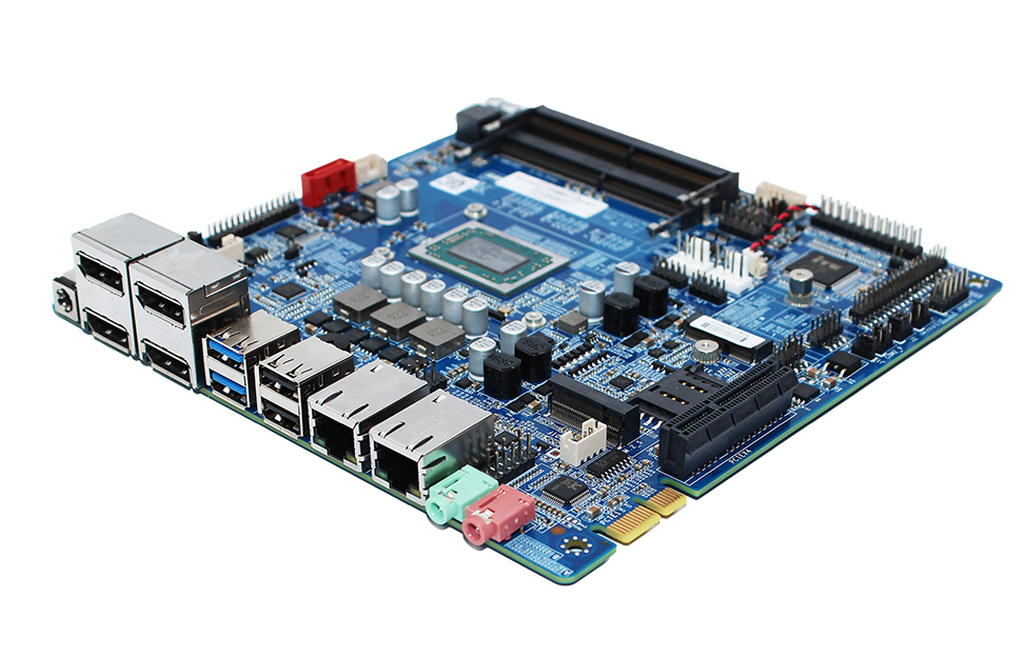

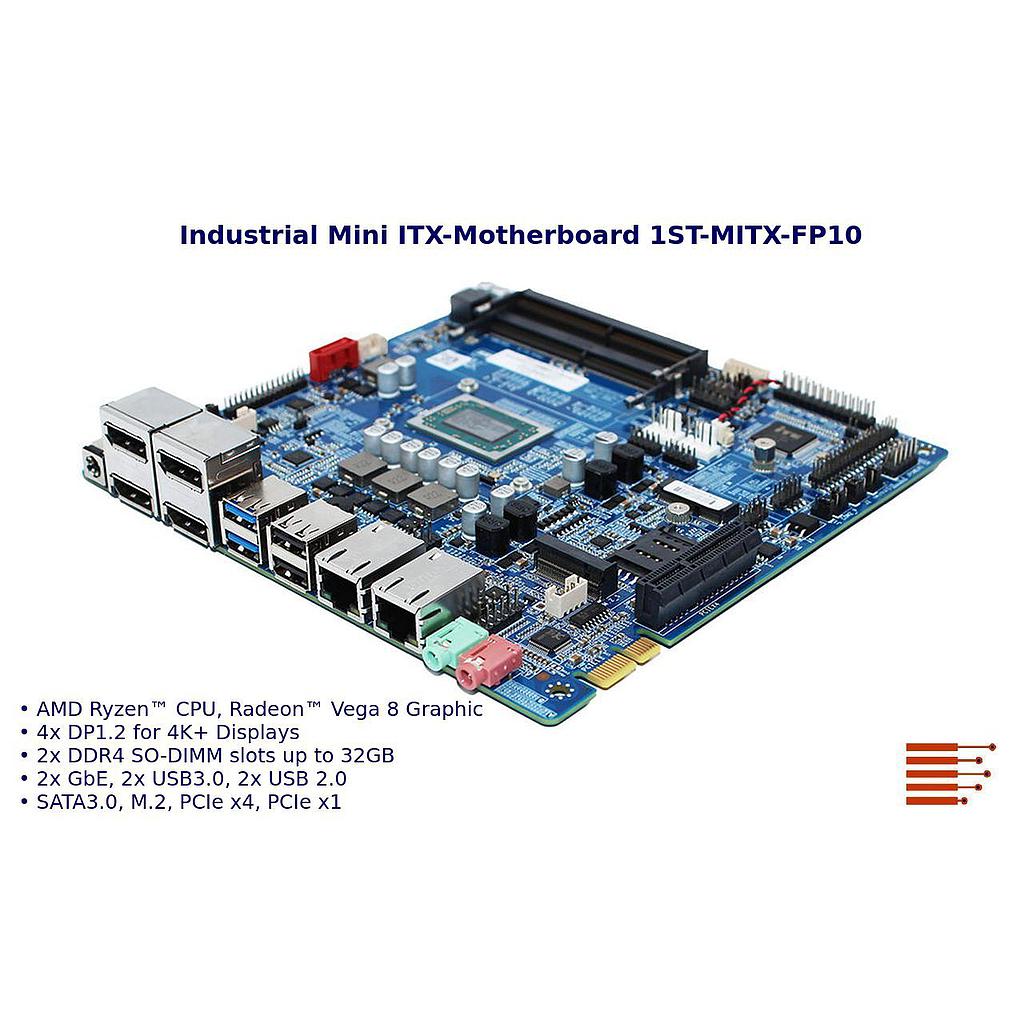

Industrial Mini ITX-Motherboard 1ST-MITX-FP-10

Get Quote

This combination does not exist.

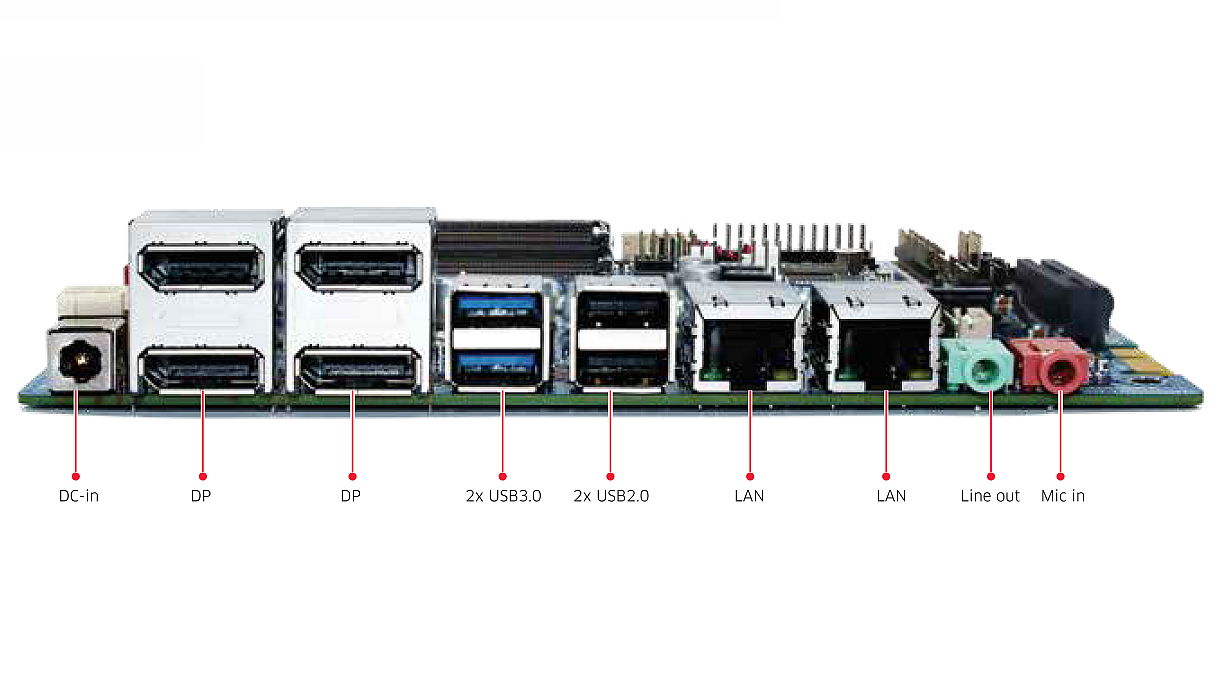

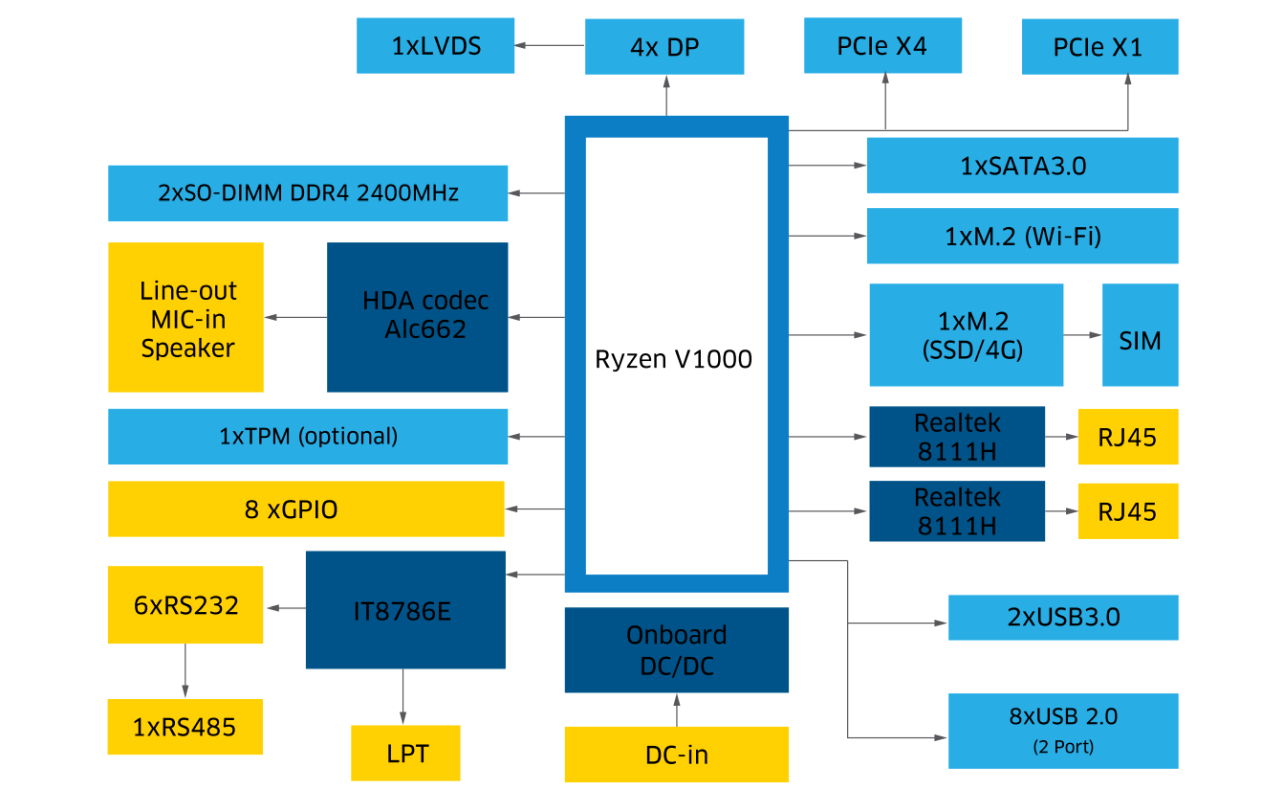

AMD Ryzen™ Embedded V1000-based mini-ITX board with 4x DisplayPort 1.2, 2x GbE LAN, 2x SO-DIMM DDR4 Sockets for up to 32 GB RAM, 2x USB3, 2x USB2, Realtek HD ALC662 Audio (Line-out, Mic-in), 1x SATA, 1x M.2 for WiFi, 1x M.2 for 4G/2280 SSD, 1x PCIe x1, 1x PCIe x4, internal 6x USB2 header, 6x COM header, 8x GPIO, 1x LVDS/eDP header, 1x JLPT, 1x PS2_H, TPM2.0 optional

 Lead time 2-3 days when available

Industrial Mini ITX-Motherboard

AMD Ryzen™ CPU, 4x DP, 4x USB, 2x LAN

The Ryzen™ Embedded Processors provides multiple 4K+ displays.
AMD Radeon™ Vega 8 Graphic.
Extensive and flexible I/O.
For industrial and fanless use.
Powerful and power saving.


  • 4x DP1.2 (LVDS/eDP optional) for 4K+ Displays

  • AMD Radeon™ Vega 8 Graphic

  • 2x DDR4 SO-DIMM slots up to 32GB

  • 2x GbE Ethernet ports

  • 2x USB3.0, 2× USB 2.0

  • SATA3.0, M.2, PCIe x4, PCIe x1

  • TPM 2.0 (optional)


  • Industrial Automation

  • Industry 4.0, IoT

  • Edge-Computing

  • KI

  • Digital Signage

  • POS

  • Monitoring, Social Collaboration
