Mini ITX Embedded Motherboard 1ST-MITX-RL10
Industrial Mini-ITX-Motherboard with Intel® Core™ i3/ i5/ i7 Processor (Raptor Lake) 13th Generation with 4x HDMI 2.0.
This Embedded Motherboard supportsr 2x DDR4-SO-DIMM-Slots for up to 64 GB RAM, 2x GbE LAN-Ports, 4x USB 3.2 and 4x USB 2.0, 1x SATA, 2x M.2 for NVMe-SSD, WiFi and one PCIe x4 Extension slot.
Lead time 2-3 days when available

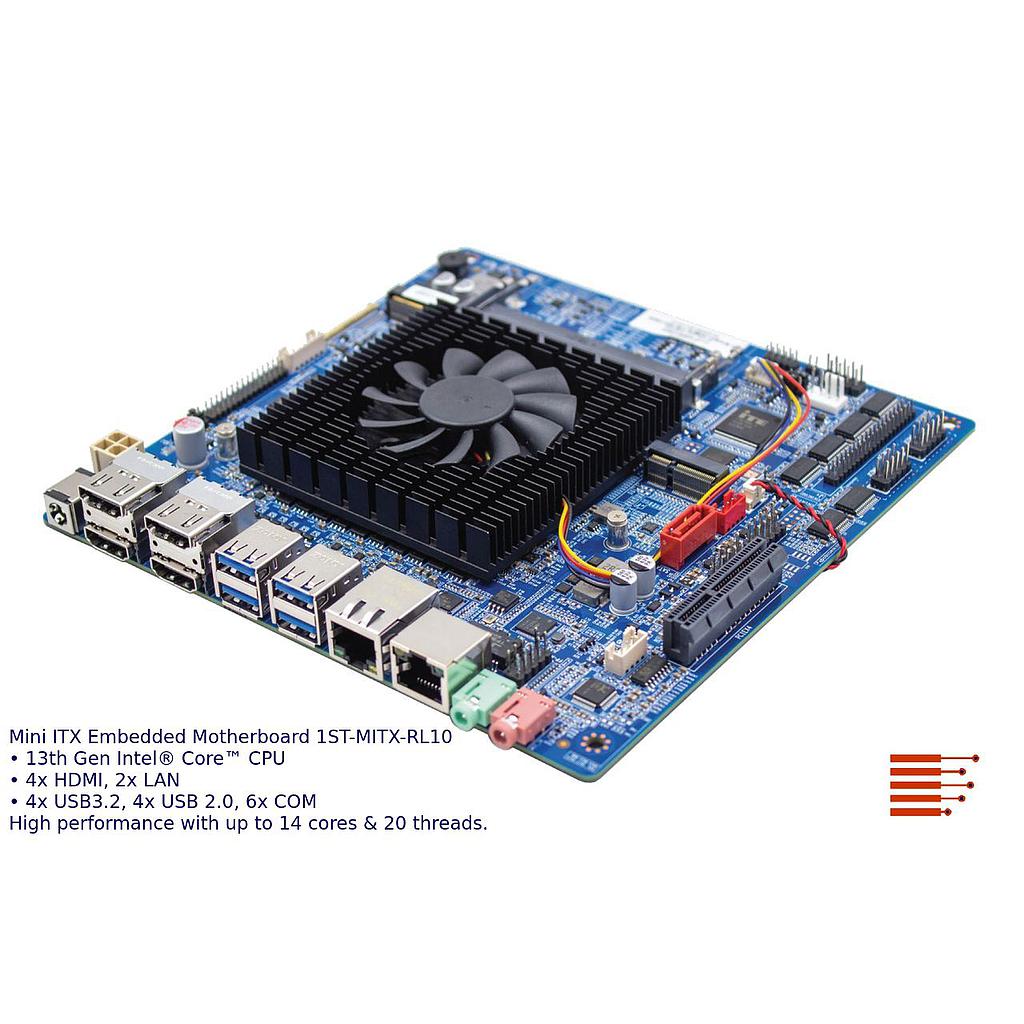

Mini ITX Embedded Motherboard: 13th Gen Intel® Core™ CPU

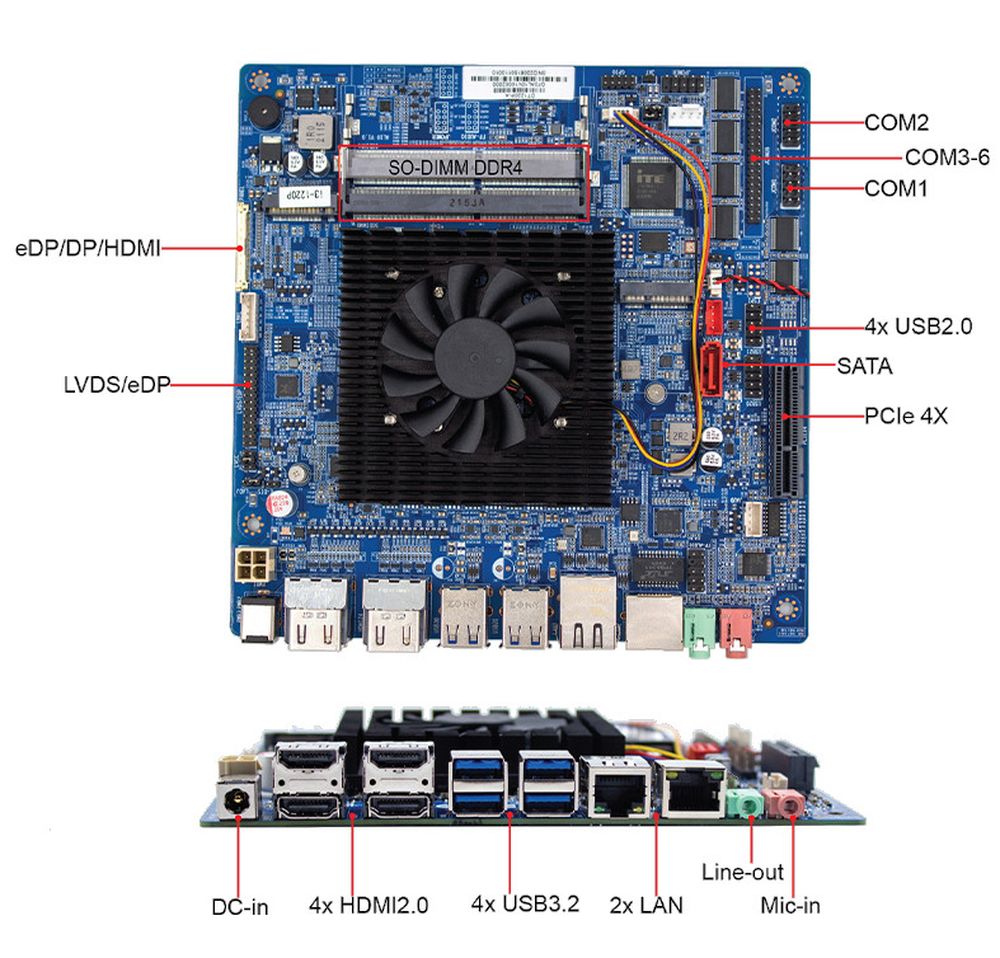

4x HDMI, 2x LAN, 4x USB3.2, 4x USB 2.0, 6x COM
The 1ST-MITX-RL10 is an embedded Mini-ITX motherboard with the 13th Gen Intel® Raptor Lake-P or U series Core™ i3/ i5/ i7 processor soldered on board.
It provides an incremental set of crucial industrial features vital to the manufacturing and energy sector along with a significant increase in instructions-per-cycle performance from the 12th Gen Core™ Mobile processor. It also comes with long-life hardware availability of up to 10 years and software support of up to 5 years.
This board offers a complete PC platform on a small form factor design with a high performance with up to 14 cores and 20 threads and 4K Resolution HD Displays via 4x HDMI 2.0.

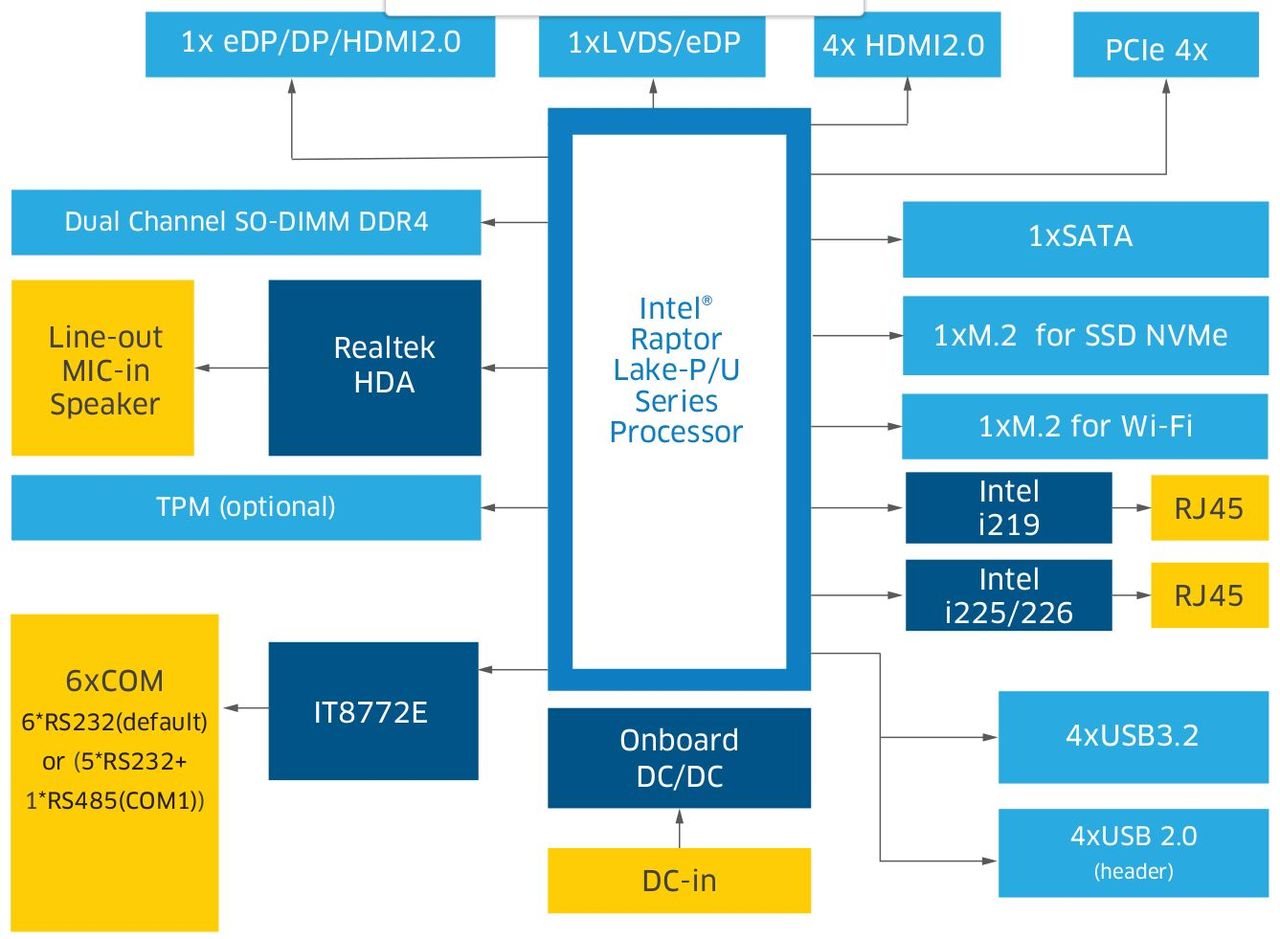

Features
Intel® 13th Gen. SoC (Raptor Lake-P or U)
Core™ i3/ i5/ i7 CPUIntel® Iris® XE Graphics GPU
2x DDR4 SO-DIMM slots up to 64GB
2x 10/100/1000Mbps LAN (Intel® i225/i226 with 2,5GbE and i219 with 1GbE)
SATA, M.2 for NVMe SSD
4x HDMI 2.0 for 4K Resolution HD Displays
1x LVDS/eDP header, 1x eDP/DP/HDMI2.0
4x USB3.2, 4x USB2.0 header, 8 bit GPIO
6x COM: 6x RS232(default) or 5x RS232 and 1x RS485(COM1)
1x M.2 for WiFi, 1x PCIe x4
TPM module for added security is optional
19V DC-IN
Operating Temperature: -20°C ~ 60°C
Supports Windows 10/11 64bit, Linux 64bit
Applications
Industry 4.0, IoT: Automation, Machinery Remote Monitoring, Machinevision, High-value assets Monitoring and Control, Control and Testing, Security Systems, Energy Sector
Interactive Digital Signage: Split Display, Billboard, Scoreboard
Other Applications: Stock Trading, Medical Imaging, Smart School, High-End Gaming
