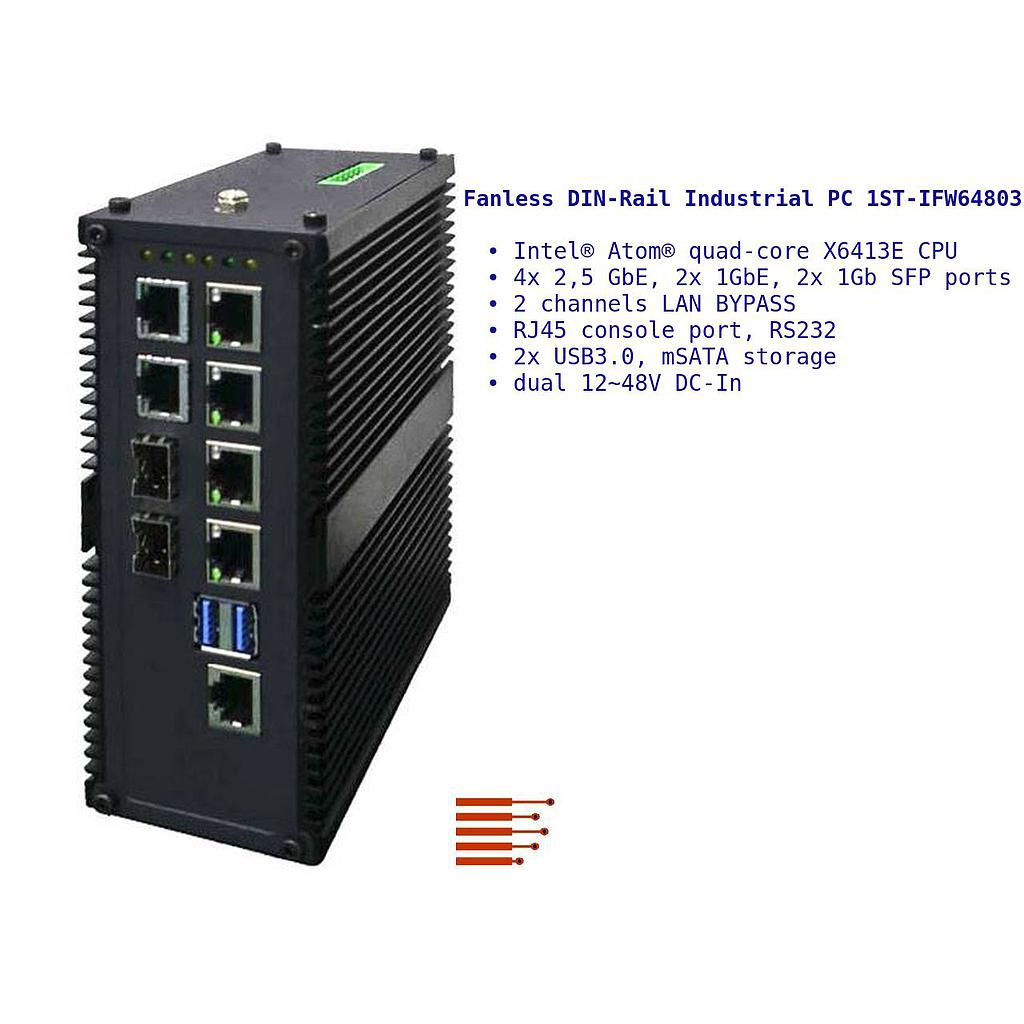

Fanless DIN-Rail Industrial PC 1ST-IFW64803
Fanless DIN-Rail Industrial Computer with Intel® Atom® X6413E CPU, DDR4 SO-DIMM slot up to 32GB, 4x 2.5GbE and 2x 1GbE ports, 2x channels BYPASS, 2x 1Gb SFP ports, RS232, RJ45 console port, 2x USB3.0, mSATA storage, HDMI, 2x 12~48V DC-In, -40°C ~ 60°C.
Lead time 2-3 days when available
Fanless DIN-Rail Embedded PC for 24/7
Intel® Atom® X6413E CPU, 4x 2.5GbE, 2x GbE, 2 BYPASS, 2x Gb SFP
The DIN-Rail Industrial PC is a small form factor fanless embedded computer which supports wide temperature for industrial application environments.
Der lüfterloser Embedded Computer ist mit Intel® Atom® Quadcore X6413E Prozessor, 4x 2.5GbE und 2x 1GbE RJ45 Ports, 2 Kanäle LAN BYPASS, 2x 1Gb SFP Ports, RS232, RJ45 Konsole Port und einer dualen Stromversorgung ausgestattet.
More Fanless Embedded PCs.
Features
Intel® Atom® X6413E processor: 1.5GHz up to 3GHz, quad-core, TDP 9W
Intel® Ethernet Controller I225-V
DDR4 3200MHz SO-DIMM Slot, up to 32GB

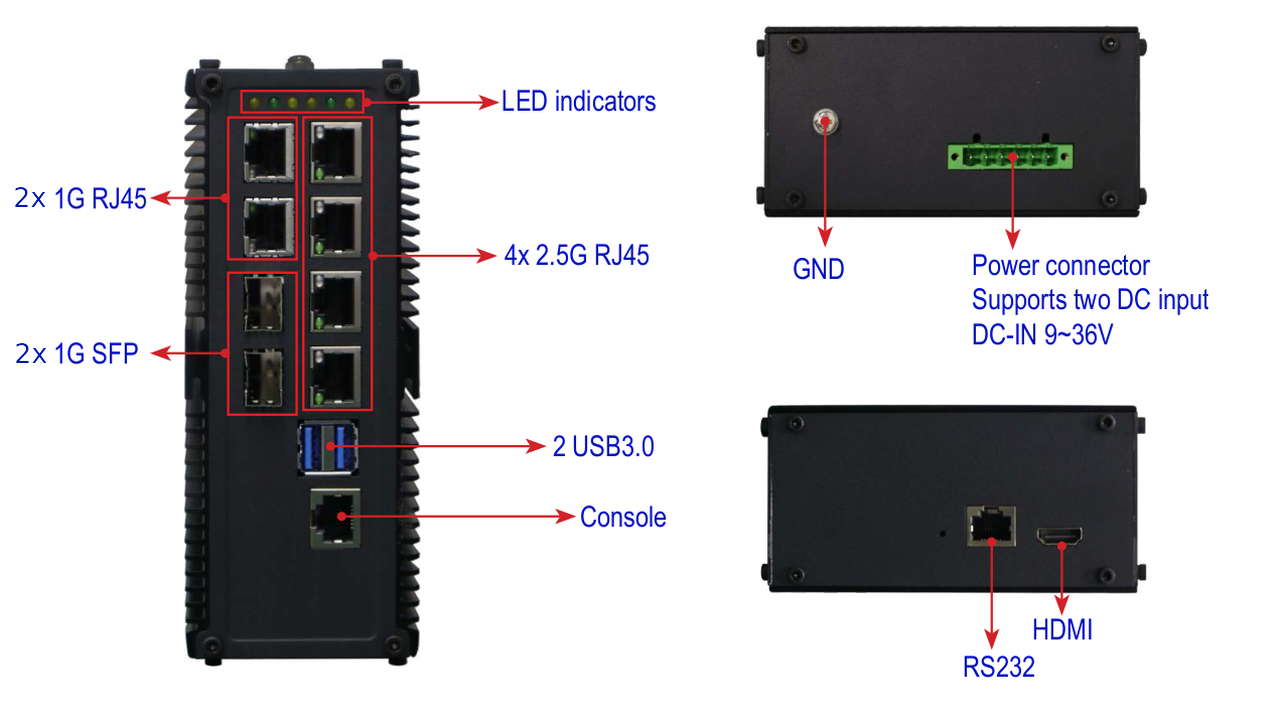

4x 2.5GbE and 2x 1GbE ports, 2x channels Gen3.0 LAN BYPASS
2x Gb SFP
RJ45 console port, RS232
2x USB3.0, mSATA storage
Display HDMI

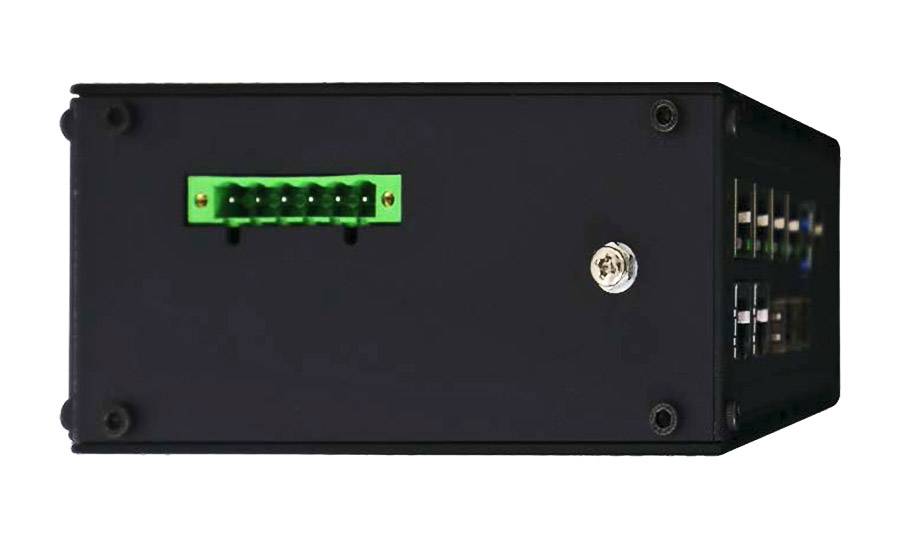

2x 12~48V DC-In wide voltage
DIN-Rail mounting
Operating temperature -40°C ~ 60°C
Dimensions, Weight: 60,8x158,1x122 mm, 3kg
Fanless design, rugged
Applications
Company Network
VPN Network, Network Security Appliance
Industrial Automation
