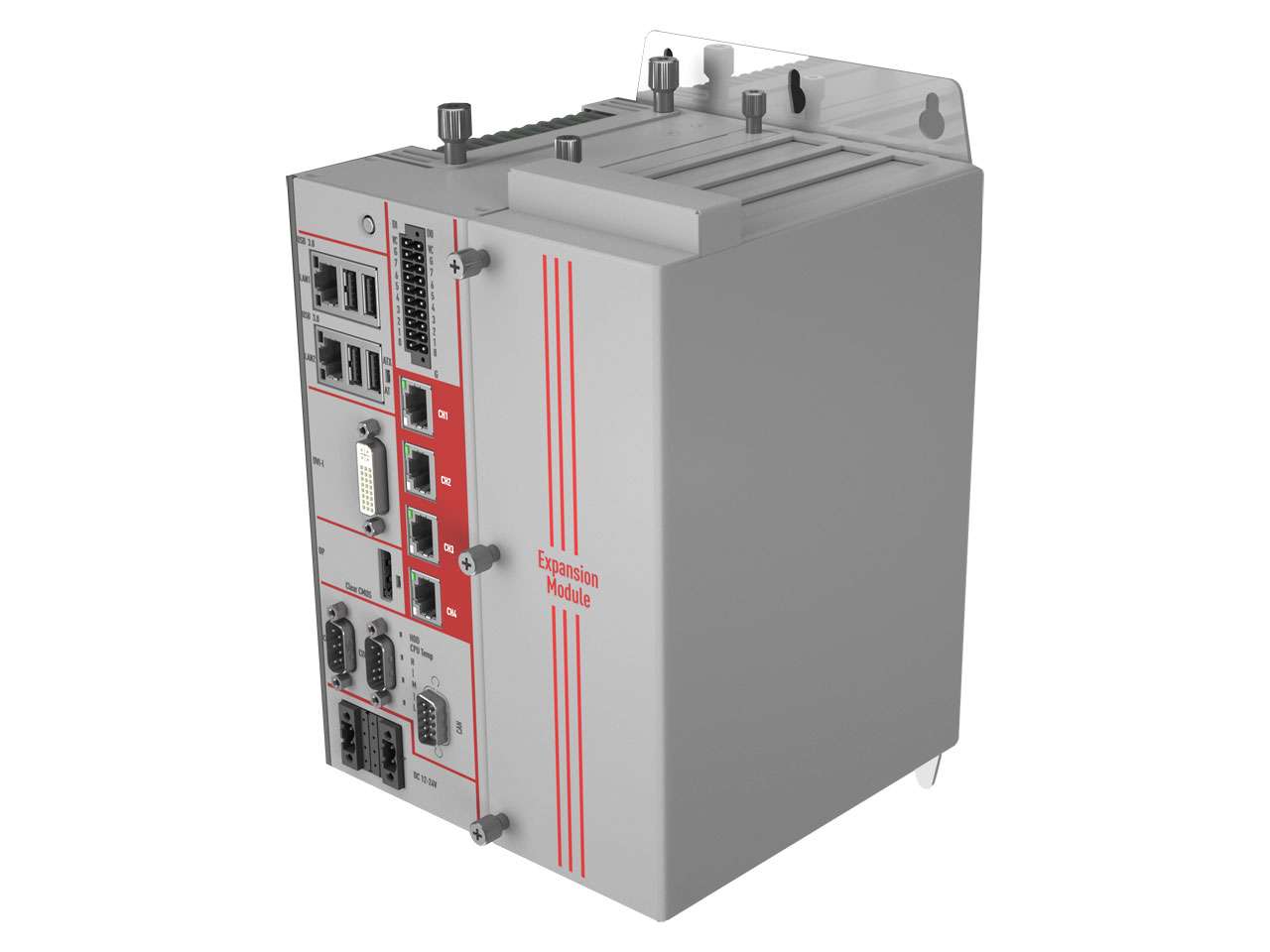

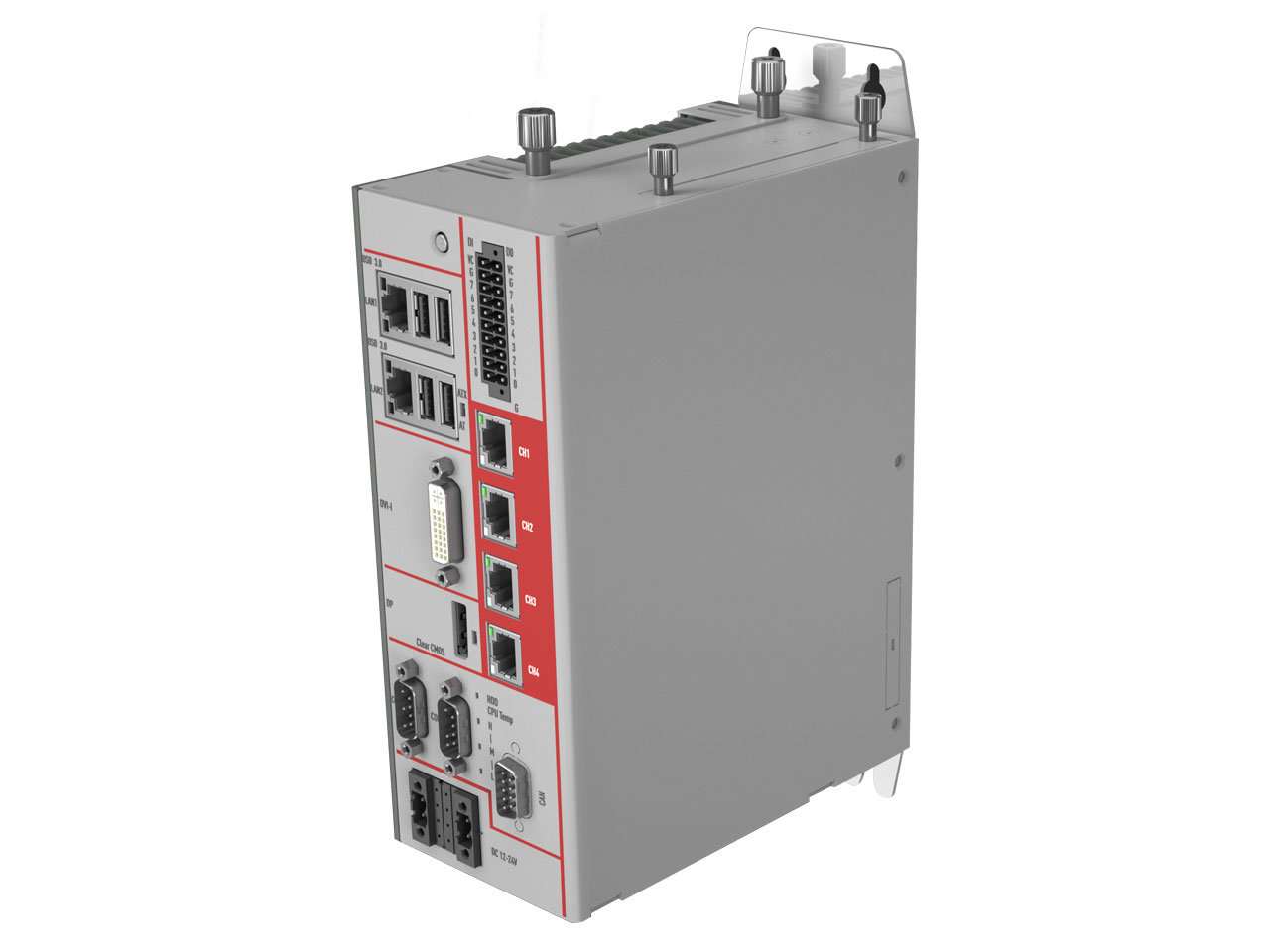

Rugged Industrial Edge PC KAGO-6301

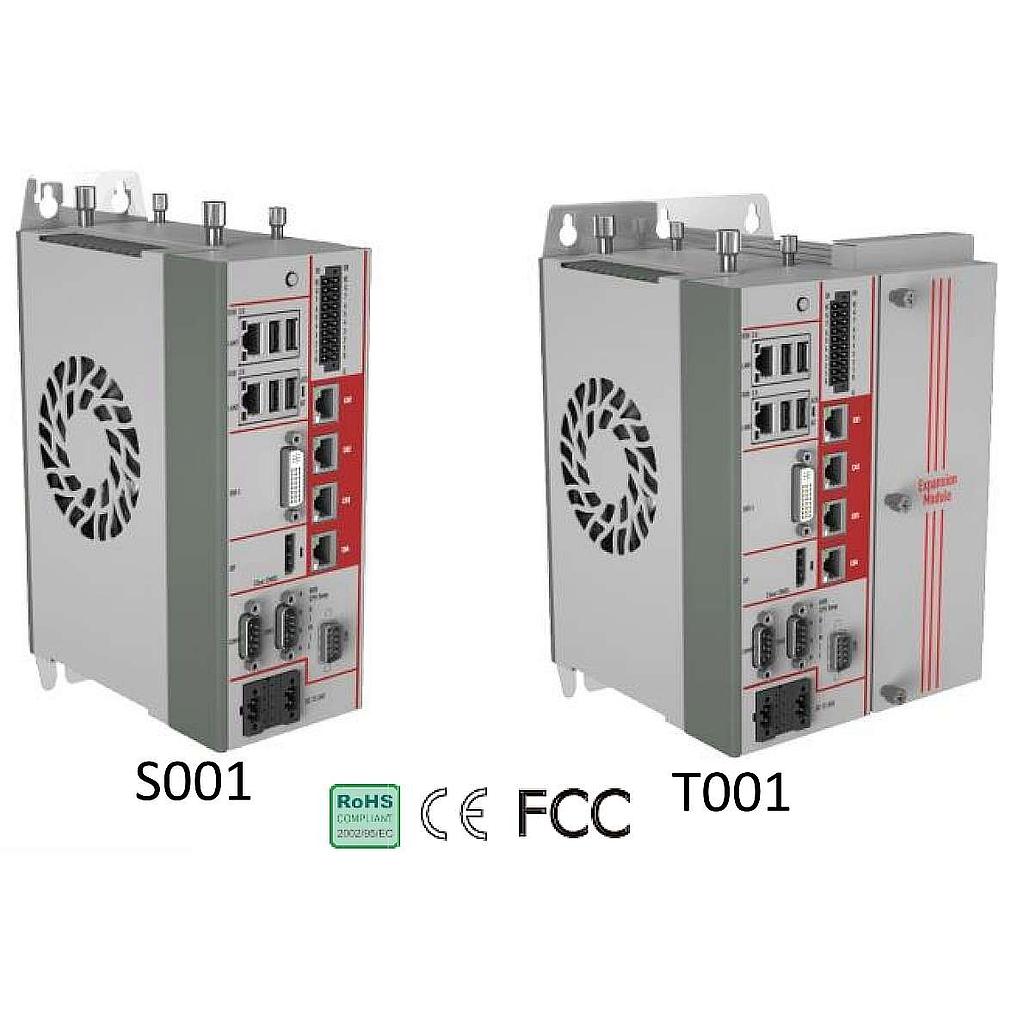

Industrial Edge Computer KAGO-6301 with Intel® Kaby Lake LGA1151 CPU, H110 Chipset, 1x DDR4-DRAM-Slot, 2x LAN, 4x PoE, 4x USB3.0, 2x COM, 1x MIO, Variant S001: 1x miniPCIe, Variant T001: 1x PCIe x4, 2x PCI; 1x DVI-I, 1x DP, 16bit isolated Digital IO, 1x 2,5" SATA bay, 1x mSATA, DC 12-24V Power Input, Wall / Din-Rail mounting.
Lead time 2-3 days when available
Why Rugged Industrial Edge PC is best suited for use
in Automation, Machine Vision, CNC control and Motion control?
Because:
Long-term available embedded CPU in use
Shock and vibration resistant: robust construction
16bit galvanic isolated Digital-I/Os
Active and passive cooling design: big heat sink and intelligent temperature controlled fan, silent design
Extended Temperature Range -20° C ~ 60°
Optimized BIOS with support real-time OS, Ubuntu Preemt-RT, optional INTime® support
DIN-Rail- or wall mounting.
Features
Intel® Kaby Lake-S/Skylake-S CPU up to zu 65W
16-bit Iso. DIO: 8-bit Iso. DI and 8-bit Iso. DO
1x DDR4 2400/2133MHz SO-DIMM, up to 16GB
1x DP, 1x DVI-I, dual displays
2x LAN, 4x PoE (802.3af 15.4W)
4x USB3.0, 2x COM, 1x MIO
1x PCIe x4 Slot, 2x 32bit-PCI Slot (T001)
1x miniPCIe (PCIe+USB), Support 4G LTE/WiFi/BT
1x mSATA, 1x 2.5" SATA3, dual storage
Wide temperature range
12~24V DC Wide power supply
Support wall mounting and Din-Rail mounting
RoHS, FCC and CE certified
Applications
Automation
Machine Vision
CNC control
Motion control
