Product Portfolio of 1ST-embedded GmbH

The Robustel R5020 5G Industrial Router for global 5G/4G cellular connections supports Gb Ethernet, WiFi and 4G/5G internet with auto-failover, is compatible with 3GPP Release 15 and E-Mark certified for In-Vehicle applications in the version with ACC Ignition Control, support GNSS positioning, Broadband-Failover, IPSEC, DMVPN and Open VPN, fully programmable RobustOS with well documented SDK, free Cloud Management Plattform RCMS, robust and conpact aluminum housing for DIN-Rail or Wall mounting.
Country of Origin: CN, HS-code: 85176200

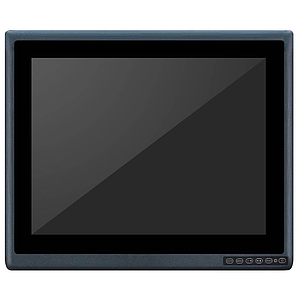

15" 1024x768 TFT LCD, Capactive/Resistive Touch Screen, HDMI and VGA, OSD Function Keys. Support multi touch; Panel mounting, VESA, 9-36V DC Power Input

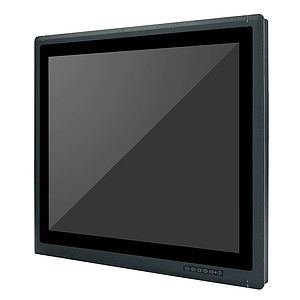

19" 1280x1024 TFT LCD, Capactive/Resistive Touch Screen, HDMI and VGA, OSD Function Keys. Supports multi touch; Panel mounting, VESA-Mounting, 9-36V DC Power Input

Fanless Industrial Edge Computer with Intel® Whiskey Lake-U 8th Gen. SoC, up to 32 GB DDR4 RAM, 4x GbE LAN-ports, 2x USB3.1, 2x USB2.0, HDMI, DVI-D, 2x RS-232/422/485, 8-bit DIO, 1x miniPCIe with SIM slot support for 4G/WiFi/BT/CAN modules, 1x M.2 key E for WiFi / BT, 1x mSATA, 1x 2,5" SATA3.0 HDD/SSD bay, DC 12-24V input, supports INtime, EC-Win, RTX-2014/2016, Ubuntu Preempt-RT, as well as Windows 10, Linux, TSN
Operating Temperature: -20 ~ +60°C with wide operating temperature SSD
Dimensions: 202 x 151 x 81 mm
DIN-Rail or Wall Mounting

Fanless Industrial miniPC 1ST-VHWL30 with Intel® 8th / 10th Gen. Core™ or Celeron® CPU, 2x SO-DIMM slots for up to 64GB DRAM, 1x HDMI, 1x DP, 1x miniHDMI, 2x USB3.0, 4x USB2.0, 2x LAN, 1x COM optional, 1x SIM slot, 1x M.2 for SSD, 1x M.2 for SSD or 4G, 1x M.2 for WiFi, VESA-mount compatible, 19V DC Power input

Industrial Edge Computer KAGO-6301 with Intel® Kaby Lake LGA1151 CPU, H110 Chipset, 1x DDR4-DRAM-Slot, 2x LAN, 4x PoE, 4x USB3.0, 2x COM, 1x MIO, Variant S001: 1x miniPCIe, Variant T001: 1x PCIe x4, 2x PCI; 1x DVI-I, 1x DP, 16bit isolated Digital IO, 1x 2,5" SATA bay, 1x mSATA, DC 12-24V Power Input, Wall / Din-Rail mounting.

Ultra compact fanless miniPC based on AMD Ryzen™ quad-core processor with RADEON™ Vega 8 GPU; low power mobile processor AMD Ryzen™ 5 2500U or Ryzen™ embedded CPU V1605B; 2x SO-DIMM slots up to 32 GB DDR4 RAM, 2x USB3.0, 4x USB2.0, 1x USB-C, 2x LAN, 1x COM, 1x HDMI 2.0, 1x DP 1.4, 3x M.2 for SSD, WiFi, 4G; 1x SIM card slot; integrated Kensington® lock; 12 ~ 19V DC-In, Windows 10 and Linux support

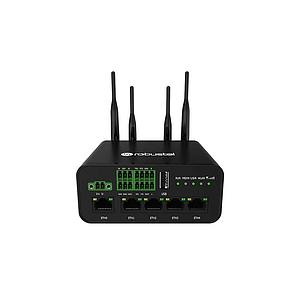

Robustel R1520 - high performance LTE CAT4 Router with Dual-SIM, WiFi, 5x Ethernet: (1x WAN(PoE-PD) & 4x LAN), analog Interface for direct Sensor connections, optically isolated digital I/O, 1x RS232 and 1x RS485 Interface with Modbus support, Support for IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN, "global" 4G version, E-mark Certification for in vehicle use, robust design with 9 bis 36 V DC power input, has extensive global certifications, free Robustel RCMS router monitoring service with location overview on map, data usage, signal strength, current network and much more. Over-the-Air updates for Firmware, router configuration and Apps

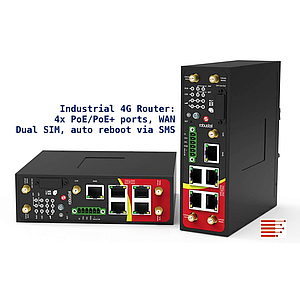

Robustel 2000 Dual FDD LTE Router with Dual SIM, optional Dual 4G module, 4x Fast-Ethernet with PoE, 1x WAN, 9-57V DC, FDD LTE Cat4, DL/UL: 150/50 Mbps;
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM/EDGE: B3/B8
Suitable for the following regions: EMEA / South Korea / Thailand / India
Country of Origin: CN, Product number: 85176200
This product is EOL.

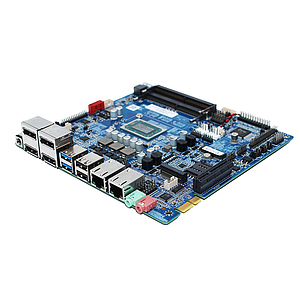

AMD Ryzen™ Embedded V1000-based mini-ITX board with 4x DisplayPort 1.2, 2x GbE LAN, 2x SO-DIMM DDR4 Sockets for up to 32 GB RAM, 2x USB3, 2x USB2, Realtek HD ALC662 Audio (Line-out, Mic-in), 1x SATA, 1x M.2 for WiFi, 1x M.2 for 4G/2280 SSD, 1x PCIe x1, 1x PCIe x4, internal 6x USB2 header, 6x COM header, 8x GPIO, 1x LVDS/eDP header, 1x JLPT, 1x PS2_H, TPM2.0 optional

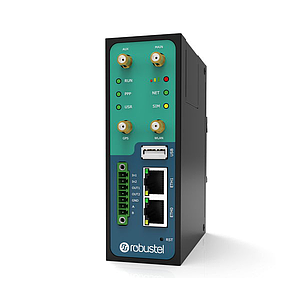

Robustel FDD LTE Router with Dual SIM, 2x Ethernet, 1x RS232, 1x RS485, 1x USB, 2x DI, 2x DO, 1x MicroSD, 9-60VDC
Quectel EC25-E Modem, FDD LTE Cat4, DL/UL: 150/50 Mbps;
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM/EDGE: B3/B8
Suitable for the following regions: EMEA / South Korea / Thailand / India
Country of Origin: CN, HS-code: 85176200

1U Fanless Industrial Computer 1ST-1U-F35 with 8th or 9th Gen. Intel® Core™ Processor (with 35W TDP), 2x Gigabit LAN, 4x USB2, 4x USB3, HDMI and Display Port, 2x DDR4-260Pin RAM Sockets for up to 32 GB DRAM, 2x SATA3 HDD/SSD tray, mini PCIe connector (mSATA), 1x M.2 Socket 2260/2280 M key with SATA and PCIe x2/x4 support, Intel® Optane™ Memory Ready, 1x M.2 Socket for an Intel® CNVi or a PCIe wireless module, fanless cooling design with heat pipe.

Industrial Touch Panel PC ALAD-K2120T, 21.5’’ TFT LCD with Full-HD resolution, Projected Capacitive Touch, HDMI-out for additional monitor, Intel® Skylake/Kabylake-U CPU, 2x LAN, 4x USB3.0, 1x PCIe x1/PCI, DC 9~36V, IP65 Front panel, Aluminum die-casting chassis, max. 16GB DDR4 SO-DIMM, M.2 2242 for SSD and 2,5" HDD-bay

The WMM8G-7-38-5SP antenna is a high directional gain 2x2 MiMo signal boosting antenna for 4G and many 5G networks. Incorporating two separately fed wideband elements in a single housing the WMM8G-7-38 is equipped to provide client side MiMo and diversity support. With 6dBi of peak gain at 698-960MHz and 9dBi peak gain at 1710-3800MHz the WMM8G-7-38 provides extra gain for next generation networks.
The rugged, weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided.
A 5m long, double-shielded (low loss) twin cable with high-quality connectors allows easy installation and cable routing.
Frequencies:
Element1: 698-960MHz, 1710-2700MHz, 3400-3800MHz
Element2: 698-960MHz, 1710-2700MHz, 3400-3800MHz
Gain:
@ 698-960MHz 6dBi
@ 1710-2170MHz 9dBi
@ 2396-2700MHz 9dBi
@ 3400-3800MHz 9dBi
Polarization: +/- 45 ° Vertical
Radiation pattern: Directional
Dimensions: height 230mm / width 180mm / depth 94mm
Material: UV-resistant ASA plastic
Color: RAL9010 (pure white)
Attachment: wall-mounted / pole-mounted / table-mounted

Cable Type: SR1-029-B-T
Cable length 2x 5m
Plug: SMA plug (m)

Server-grade Intel® I350 controller based PCIe x4 v2 Quad-Port PoE+ (802.at) Network card with up to b 25,5W PoE power per LAN port, supports 4 independent Gb Ethernet Ports (48V or 53V) with PoE Power Control for each Port, 10/100/1000Mbps Self Adaption Converting

Fanless network security appliance with J1900 quad-core CPU, 6x RJ45 GbE network ports with 2x channels LAN-Bypass, one SATA and one mSATA interface, 2x USB3.0, 1x CF-card Type II Slot, 1x RJ45 for RS232 communication, 204 pin DDR3L DIMM socket, internal 60W PSU

Industrial computer with Intel® Core™ i3/i5/i7 CPU (Kaby Lake-S) with fanless cooling, 2x DDR4 2133/2400 MHz SODIMM-slots, DP, HDMI, VGA, 2x LAN, 4x USB3.0, 3x USB2.0, 4x COM, 8bit Digital I/O, PCIe x16 and PCIe x4 expansion slots with fan cooling, 1x miniPCIe (PCIe & USB), 1x M.2 2242 Key B, 1x mSATA, 2x 2,5" SATA with Raid 0,1 support, Intel vPro and TPM2.0, 12-24V DC Wide Power Input.

Industrial Mini ITX Motherboard
with 8th Gen Intel® Core™ i3/ i5/ i7 processor or Celeron™ processor 4205U. This embedded Board features multiple display via DP1.2, HDMI 1.4 and eDP or LVDS.
This Embedded Motherboard has 2x LANs and supports 4G network.
It carries 1x DDR4 SO-DIMM 2400MHz slot up to 16GB to add higher bandwidth and lower latencies for processes.

LAN-Expansion module with Intel® i350-AM4 Controller and 4 SFP GbE ports, supports up to 8 VMs per port. For 2U Network Security Appliance 1ST-F23224R.

LAN-Expansion module with Intel® I350-AM4 Controller and 4 RJ45 GbE Ports, support of up to 8 VMs per port; 2 channels BYPASS. For 2U Industrial Network Security Appliance 1ST-F23224R.
US HTS 8517620050
